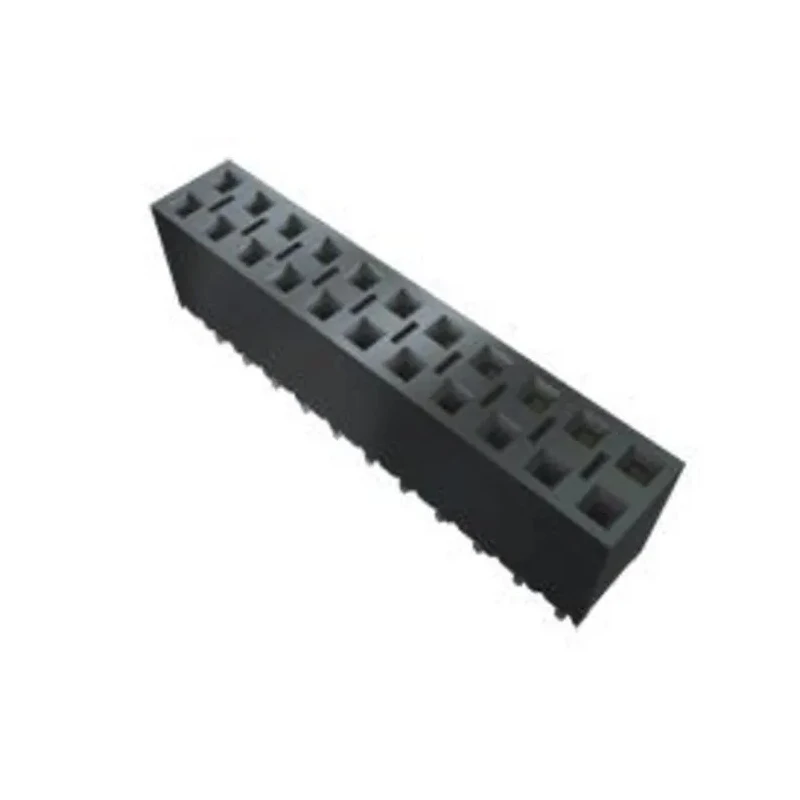

Samtec Straight Through Hole PCB Socket 40-Contact, 2 Row, 2.54 mm Pitch, 4.6A Current, 475V Voltage BCS-120-L-D-PE

Free Delivery in India | Lowest Global Shipping Charges

Samtec Straight Through Hole PCB Socket 40-Contact, 2 Row, 2.54 mm Pitch, 4.6A Current, 475V Voltage BCS-120-L-D-PE

Name: Samtec Straight Through Hole PCB Socket 40-Contact, 2 Row, 2.54 mm Pitch, 4.6A Current, 475V Voltage BCS-120-L-D-PE
Brand: Samtec
SKU: 154721
Price: 7.9 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	475V
Brand	Samtec
Orientation	Straight
Current	4.6A
Model	BCS-120-L-D-PE
Mount Type	Through Hole
Special Features	Top and bottom entry pass-through options
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	BCS
Termination	Through-hole
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Pass-Through Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	40
Connector System	Board-to-Board
Contact System	Tiger Claw™

Key Features

Constructed with liquid crystal polymer housing for durability.
Through-hole mount type with solder termination ensures secure attachment.
Vertical, straight orientation suitable for board-to-board connection.
Gold plated bronze contacts with Tiger Claw™ contact system provide reliable electrical performance.
Operates between -55°C and 125°C temperature range.
Designed for single and double row applications up to 100 pins.
Features top and bottom entry pass-through options for versatile PCB design.
Part of Samtec BCS series known for quality and reliability in electronics components.

Product Description

Samtec BCS-120-L-D-PE is a Straight Through Hole PCB Socket designed for reliable electronic component connection in industrial and commercial applications. This connector features 40 contacts arranged in 2 rows with a standard 2.54 mm pitch, making it ideal for board-to-board interfacing.

Constructed with a liquid crystal polymer housing, this PCB socket offers high durability and performance stability. The bronze contacts are gold plated and utilize the patented Tiger Claw™ contact system, ensuring excellent conductivity and secure electrical connections. The solder termination through-hole design promotes robust mechanical fixation on the printed circuit board.

The socket supports operating voltages up to 475V and currents up to 4.6A, making it suitable for a wide range of electronic circuits. Its operational temperature range from -55°C to 125°C suits demanding environmental conditions. The straight orientation and vertical mounting facilitate easy integration in board assemblies.

This product helps engineers and manufacturers deliver high-quality PCB designs with pass-through socket functionality for both single and double row configurations up to 100 pins. It also features top and bottom entry options, increasing design flexibility in complex electronic assemblies.

Liquid crystal polymer housing for high durability. Gold plated bronze contacts with Tiger Claw™ system for secure connections. Through-hole solder termination for strong mounting. Supports 475V voltage and 4.6A current capacity.

Operational temperature from -55°C to 125°C ensures usage in harsh environments. 2 rows and 40 contacts with 2.54 mm pitch for standard PCB applications. Pass-through top and bottom entry options increase design versatility.

Suitable for industrial, manufacturing, and electronics laboratory use cases. Explore more industrial electronic components and connectors within the PCB Sockets category on EnvMart for your project needs.
