Vishay 940 nm IR LED 5 mm Through Hole Package TSAL6100

Free Delivery in India | Lowest Global Shipping Charges

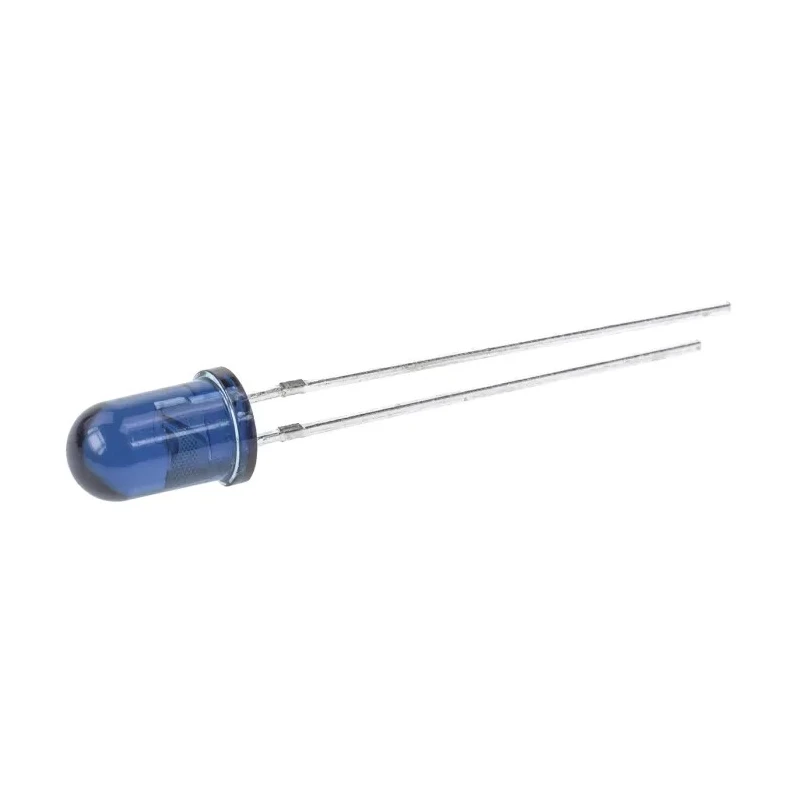

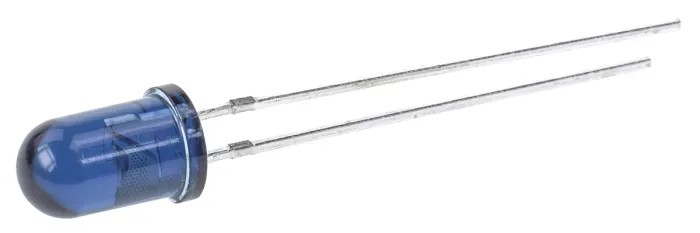

Vishay 940 nm IR LED 5 mm Through Hole Package TSAL6100

Name: Vishay 940 nm IR LED 5 mm Through Hole Package TSAL6100
Brand: Vishay
SKU: 214072
Price: 0.17 USD
Availability: InStock



Category Infrared LED Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	TSAL6100
Packaging	Bulk
Mount Type	Through Hole
Number Of Leds	1
Package Type	5 mm
Package Form	T-1¾
Standards/Approvals	JEDEC
Number of Pins	2
Lens Shape	Round
Peak Wavelength	940nm
Radiant Flux	40mW
LED Material	GaAlAs
Angle of half intensity	20°
Radiant Intensity	170mW/sr

Key Features

The LED has a round lens shape for focused emission.
Peak wavelength is 940 nm, ideal for infrared applications.
Radiant flux is 40 mW, delivering strong light output.
Radiant intensity reaches 170 mW/sr ensuring effective signal transmission.
Mounting type is through hole, compatible with standard PCBs.
Angle of half intensity is 20 degrees for concentrated beam spread.
LED is made from GaAlAs material, enhancing durability and performance.
The package type is 5 mm with a T-1¾ leaded form factor.

Product Description

Vishay TSAL6100 is a high-performance infrared (IR) emitting diode featuring a 5 mm through-hole package suitable for various industrial electronics applications. This IR LED operates with a peak wavelength of 940 nm, making it ideal for use in remote control units, free-air transmission systems, smoke detectors, optical counters, and card readers.

The device offers high radiant power and intensity, with a radiant flux of 40 mW and radiant intensity of 170 mW/sr, ensuring reliable infrared emission and detection compatibility. Its round lens shape focuses the IR light effectively, and the through-hole mount facilitates easy installation on printed circuit boards.

Constructed with gallium aluminum arsenide (GaAlAs), the LED ensures consistent performance under high pulse current operation. The narrow angle of half intensity at 20° allows precise targeting of the IR signal, minimizing interference and maximizing signal integrity.

The TSAL6100 device meets JEDEC standards, confirming its compliance with electronic component industry requirements. Its T-1¾ package form with a leaded design supports robust mechanical stability during handling and operation.

This IR LED series from Vishay is highly reliable and aimed at applications requiring high power infrared sources with excellent spectral matching to silicon photodetectors. The product is available in bulk packaging suitable for large-scale manufacturing and assembly processes.

The LED features a 5 mm round lens through-hole package for ease of PCB mounting. With peak wavelength at 940 nm, it suits infrared communication and sensing. Provides 40 mW radiant flux and 170 mW/sr radiant intensity for strong IR output.

Through hole mount type ensures secure PCB integration. Angle of half intensity of 20 degrees concentrates the IR beam. GaAlAs LED material offers durability and high performance. Meets JEDEC standards providing industrial grade quality.

T-1¾ package form factor ensures compatibility with existing equipment. Ideal for remote controls, IR transmission, smoke detectors, and optical readers. Explore more reliable electronic components like IR LEDs in our Electronics Components category at EnvMart.
