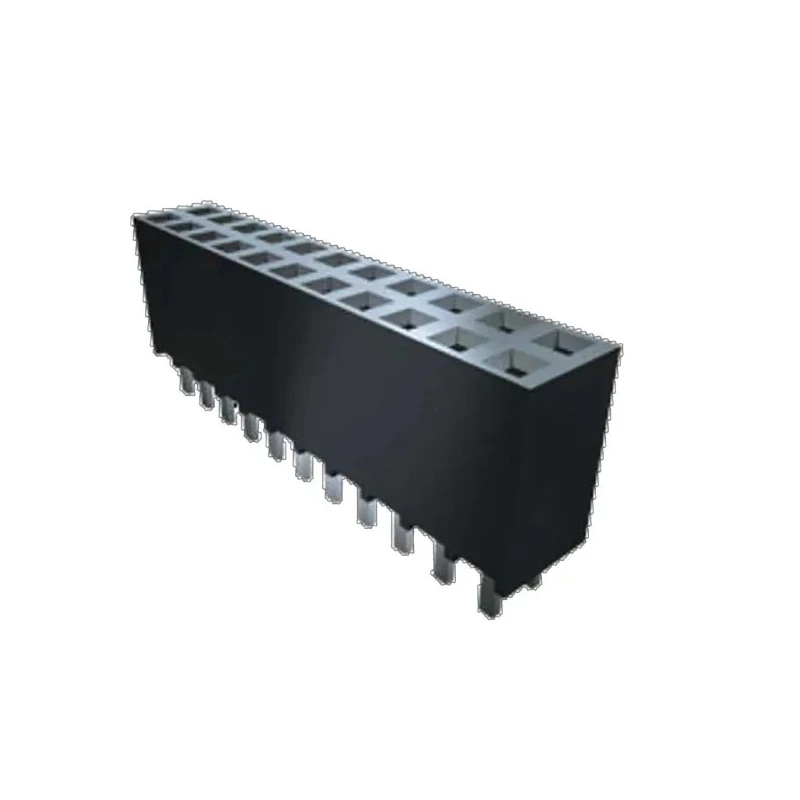

Samtec SSW Series Right Angle Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Surface Mount SSW-120-02-S-D-RA

Samtec SSW-120-02-S-D-RA is a high-quality right angle through hole PCB socket designed for board-to-board connector applications. It features 40 contacts arranged in 2 rows with a 2.54 mm pitch, optimized for compact and reliable electronic assemblies. The socket is constructed from a liquid crystal polymer housing material that offers excellent thermal stability and mechanical strength, suitable for demanding industrial and electronic environments.

The contacts are manufactured from phosphor bronze and plated with gold to ensure excellent conductivity and corrosion resistance. This model supports a current rating of 4.7 amps per pin with two pins powered, and a voltage rating of 655 volts, making it suitable for a wide range of power and signal applications.

Designed for durability, the SSW-120-02-S-D-RA socket maintains a contact normal force of 125 grams (4.4 newtons) to establish secure electrical connections. It also supports up to 100 mating cycles while preserving the integrity of the gold plating with a thickness of 10 microinches (0.25 micrometers).

The socket is rated for operation in temperature extremes from -55°C to 125°C, making it reliable for industrial, telecommunications, manufacturing, and laboratory electronics.

Its right angle configuration and through hole mount type facilitate easy PCB assembly, while the surface mount termination ensures compatibility with modern manufacturing processes. This product is part of the Samtec SSW series known for precision and long-lasting electrical performance.

Supports a current rating of 4.7A per pin with 2 pins powered. Features phosphor bronze contact material with gold plating for durability. Constructed with liquid crystal polymer housing for enhanced thermal resistance. Operates within -55°C to 125°C temperature range.

Right angle orientation suitable for compact PCB layouts. Incorporates Tiger Buy™ contact system for superior performance. Voltage rating up to 655V with 2-row configuration. Through hole mount with surface mount termination.

Contact normal force of 125 grams (4.4N) ensures solid contacts. Tested for 100 mating cycles with gold plating thickness of 10μ" (0.25μm).

This Samtec PCB Socket model is ideal for use in electronics manufacturing, industrial automation, telecommunications equipment, and laboratory instrumentation. Its robust construction and reliable electrical characteristics provide confidence in critical applications.

Explore the wide range of Samtec products and other PCB connectors on EnvMart to find the perfect fit for your project requirements.
