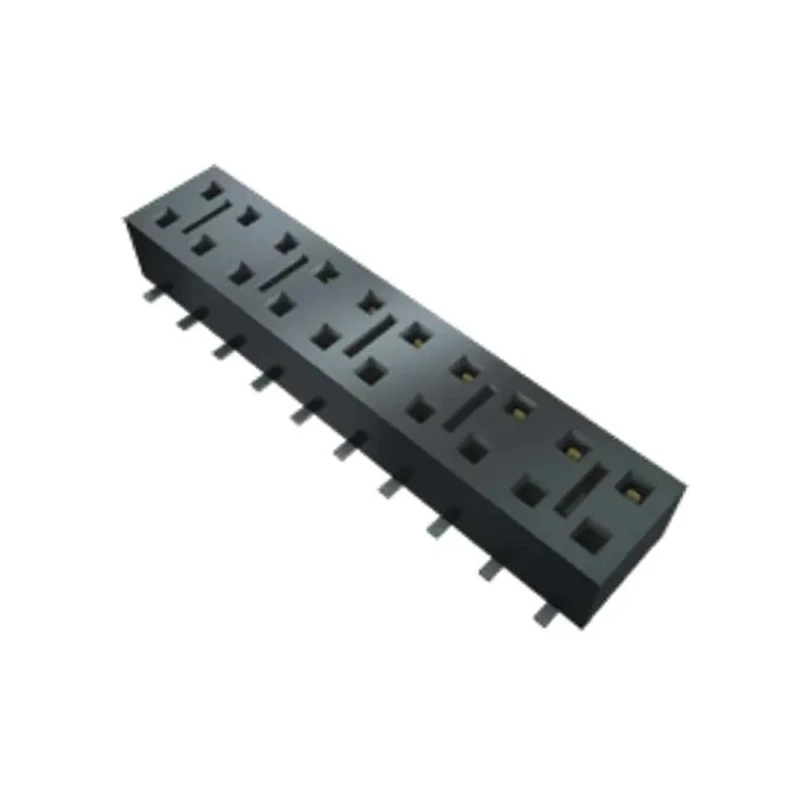

Samtec HLE Series Straight Surface PCB Socket 20-Contact 2 Row 2.54 mm Pitch Solder HLE-120-02-G-DV-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec HLE Series Straight Surface PCB Socket 20-Contact 2 Row 2.54 mm Pitch Solder HLE-120-02-G-DV-A

Name: Samtec HLE Series Straight Surface PCB Socket 20-Contact 2 Row 2.54 mm Pitch Solder HLE-120-02-G-DV-A
Brand: Samtec
SKU: 162515
Price: 10.04 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	400V
Brand	Samtec
Orientation	Straight
Current	4.1A
Model	HLE-120-02-G-DV-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	HLE
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	PCB Socket
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Connector System	Board-to-Board

Key Features

Constructed with beryllium copper alloy contacts plated in gold for reliable conductivity.
Housing made from black liquid crystal polymer offering high durability and insulation.
Supports a current rating of 4.1A per pin with voltage rating up to 400V.
Operational temperature range from -55°C to 125°C ensures broad environmental resistance.
Designed for solder termination and surface mount mounting type.
RoHS compliant and lead-free solderable for environmental safety.
Compatible with board-to-board connector systems for efficient connectivity.
Series HLE provides a cost-effective single beam socket strip solution.

Product Description

Samtec HLE-120-02-G-DV-A is a high-performance straight surface PCB socket designed for electronic and industrial applications requiring reliable board-to-board connections. This component features 20 gold-plated beryllium copper alloy contacts arranged in two rows at a 2.54 mm pitch, ensuring precise alignment and optimum electrical performance.

The housing is crafted from durable black liquid crystal polymer that withstands a wide operating temperature range from -55°C to 125°C. Rated for 4.1A current per pin and 400V voltage, this socket is ideal for demanding environments found in electronic manufacturing, industrial automation, and automotive electronics.

This PCB socket is intended for surface mounting with solder termination, facilitating secure mechanical and electrical integration on PCB assemblies. Its single beam socket strip design in the HLE series offers a cost-effective yet reliable solution.

Key features include RoHS compliance and lead-free solderability, supporting environmentally responsible manufacturing processes. Suitable for a variety of industrial, laboratory, manufacturing, and commercial PCB socketing needs, this product aligns with modern standards for electrical components.

Constructed with beryllium copper alloy contacts plated in gold for superior conductivity and durability. Housing material is liquid crystal polymer providing high thermal and mechanical stability. Operates reliably within -55°C to +125°C temperature range for versatile environment use.

Single beam socket strip design for efficient and cost-effective PCB connectivity. Supports a current rating of 4.1A at 400V, suitable for various PCB applications. Surface mount solder termination for strong PCB attachment.

Meets RoHS standards and supports lead-free soldering processes. Explore more from the Samtec HLE series and similar PCB Sockets on EnvMart to find the perfect match for your PCB assembly and connectivity requirements.
