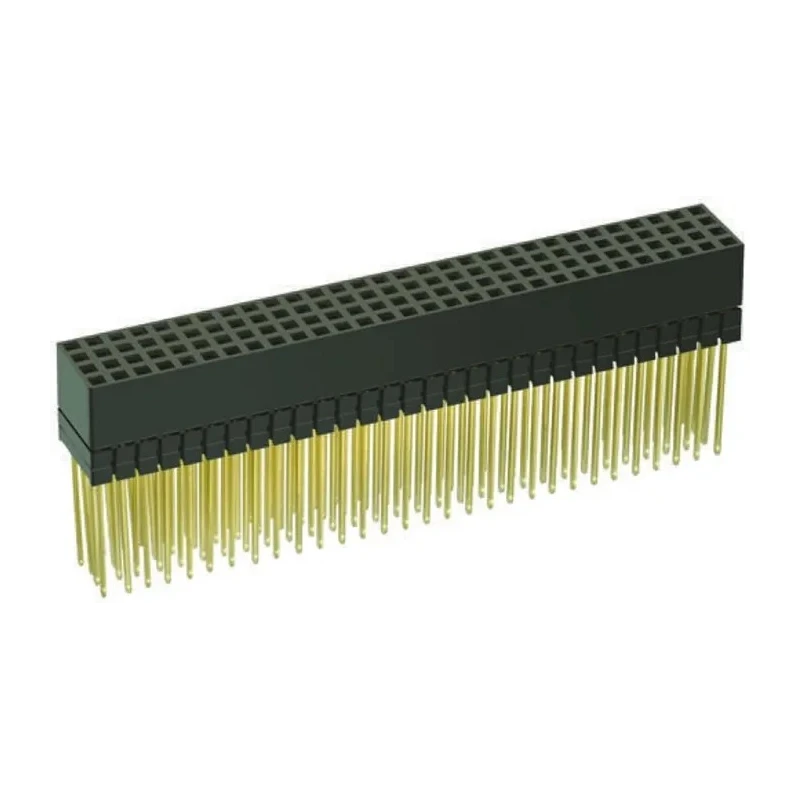

HARWIN M22 Series Straight Through Hole PCB Socket 120-Contact 4 Row 2 mm Pitch Solder M22-6003005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M22-6003005 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- This socket supports a current of 12A for reliable electrical performance.
- It features a nylon housing material providing structural durability.
- The contact material is bronze with gold plating for corrosion resistance and optimal conductivity.
- The socket supports operating temperatures ranging from -55°C to 125°C.
- The connector is oriented straight for through-hole mounting applications.
- It offers a voltage rating of 1kV ensuring safe operation in embedded PC applications.
- This connector system is designed with a female contact gender and is part of the M22 series.
- The pitch between rows is 2 mm, supporting compact PCB layouts.
Product Description
HARWIN M22-6003005 PCB Socket is a precision-designed straight through hole connector featuring 120 contacts arranged in four rows with a 2 mm pitch for solder termination. It provides a robust board-to-board socket solution, predominantly used in embedded PC applications compatible with the PC/104 industry standard. This connector supports currents up to 12A and a voltage rating of 1kV, ensuring dependable power and signal transmission in complex electronic assemblies.
The housing is constructed from durable nylon to withstand industrial use cases, while the contacts are made from high-quality bronze material plated with gold to ensure excellent conductivity and resistance to corrosion. This socket exhibits a wide operating temperature range from -55°C to 125°C, making it suitable for demanding environments including industrial automation, telecommunications, and embedded computing systems.
Designed for through-hole mounting and straight orientation, the M22-6003005 socket facilitates secure PCB connections with female contact gender classification. It is an ideal choice for manufacturers seeking reliable, high-density connectors that comply with standard industrial practices without the need for special approvals.
This product is constructed for industrial electronic assembly with focus on durability and performance. The 2 mm pitch and 4-row configuration optimize space on circuit boards. Gold-plated bronze contacts enhance electrical reliability over extended operational periods.
The connector provides a stable mechanical and electrical interface for embedded PC stacking boards. Compatibility with M22 series ensures design consistency across connector components.
Available in the category of PCB sockets, this product supports applications in manufacturing, electronics design, aerospace, and instrumentation. The HARWIN brand ensures engineering precision and adherence to high-quality industrial standards. For more PCB Sockets and related connectors, browse the dedicated categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This socket supports a current rating of 12A, ensuring reliable electrical performance in various applications.
The HARWIN M22-6003005 has a voltage rating of 1kV, making it suitable for safe operation in embedded PC applications.
The housing is made from nylon, while the contacts are constructed from bronze and plated with gold for optimal conductivity and corrosion resistance.
It operates within a temperature range of -55°C to 125°C, suitable for demanding environments.
This socket features 120 contacts arranged in four rows, designed for compact PCB layouts.
The connector is designed for through-hole mounting, facilitating secure connections on printed circuit boards.
The pitch between the contacts is 2 mm, allowing for high-density arrangements on PCBs.
The M22-6003005 features female contacts, which are standard for board-to-board connections.
It is suitable for applications in manufacturing, electronics design, aerospace, and instrumentation, particularly in embedded PC environments.
The termination type for this model is solder, which is common for securing connections on PCBs.
The connector is oriented straight, designed specifically for through-hole mounting applications.
This product is manufactured in India, ensuring adherence to industrial standards.
