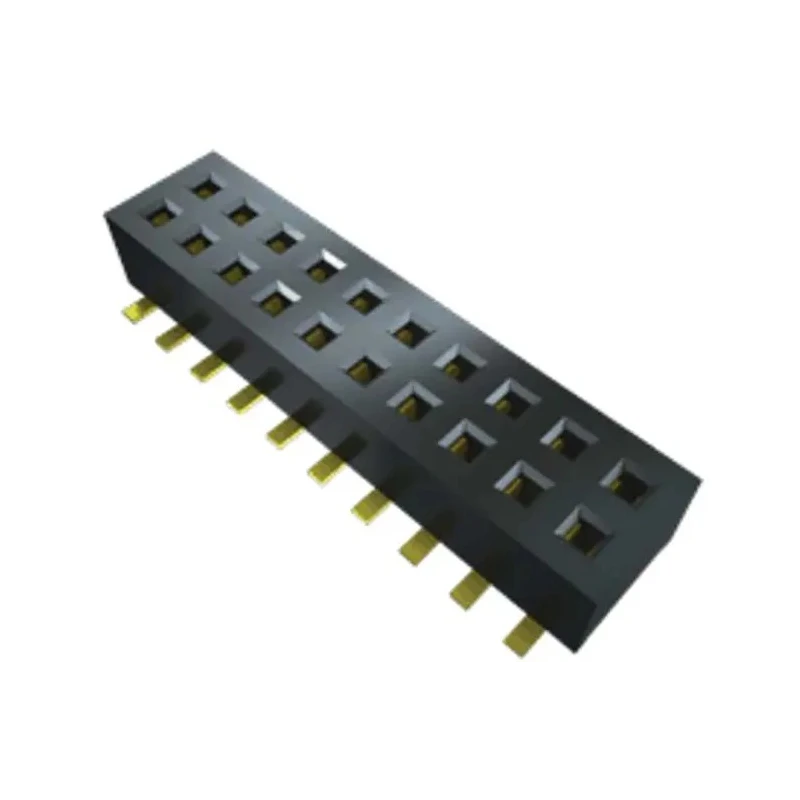

Samtec CLP Series Straight Surface Mount PCB Socket 10-Contact 2 Row 1.27 mm Pitch Solder CLP-110-02-F-DH
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 395V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.4A |
| Model | CLP-110-02-F-DH |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | CLP |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
Key Features
- The socket supports a current rating of 3.4A per contact.
- It features phosphor bronze contact material with gold plating for enhanced conductivity and durability.
- Constructed with liquid crystal polymer housing for high temperature resistance.
- Designed for operation between -55°C and 125°C, suitable for harsh environments.
- The socket has a 1.27 mm pitch and row pitch, ideal for compact PCB layouts.
- Termination is by solder with a straight orientation for surface mounting.
Product Description
Samtec CLP-110-02-F-DH is a high-quality PCB Socket designed for straight surface mounting with dual-row 10 contacts and a 1.27 mm pitch. Manufactured from liquid crystal polymer housing and phosphor bronze contact material with gold plating, it provides reliable electrical connectivity for board-to-board applications.
This component supports a current rating of 3.4 amperes per contact and can operate effectively within a temperature range of -55°C to 125°C, making it suitable for industrial, laboratory, electronic manufacturing, and commercial applications where robust performance is required.
The socket's solder termination and straight orientation ensure easy and secure mounting on printed circuit boards, facilitating compact and durable electronic assemblies.
Its 395V voltage rating accommodates diverse power requirements in electronic components and connectors categories. RoHS compliant and lead-free solderable, this socket meets modern environmental and safety standards.
The socket supports a current rating of 3.4A per contact. Features phosphor bronze contact material with gold plating. Housing is liquid crystal polymer ensuring thermal resistance. Operates in temperatures from -55°C to 125°C.
Has a 1.27 mm pitch and row pitch for compact PCB design. Surface mounting with solder termination for reliable connectivity. Voltage rating of 395V suitable for electronic board applications. Ideal for electronics manufacturing, repair, and prototyping environments, this Samtec CLP series socket offers dependable performance for high-density PCB layouts.
Explore more electronics components and connectors at EnvMart to find compatible and complementary parts for your assembly and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This socket supports a current rating of 3.4A per contact.
The maximum operating temperature for this model is 125°C.
It features a pitch size of 1.27 mm, making it suitable for compact PCB layouts.
The housing is made from liquid crystal polymer, and the contacts are made from phosphor bronze with gold plating.
The voltage rating for this socket is 395V, accommodating various power requirements.
It uses solder termination for secure mounting on printed circuit boards.
This model has 10 contacts arranged in 2 rows.
The minimum operating temperature for this socket is -55°C.
Yes, this socket is RoHS compliant and lead-free solderable.
The orientation of this socket is straight, designed for surface mounting.
It is suitable for industrial, laboratory, electronic manufacturing, and commercial applications.
The socket is manufactured in India.
