ITW Switches 76-94 Series Panel Mount Momentary Push Button Switch SPDT Clear LED IP67 250 V 10 A 76-9440/439088N

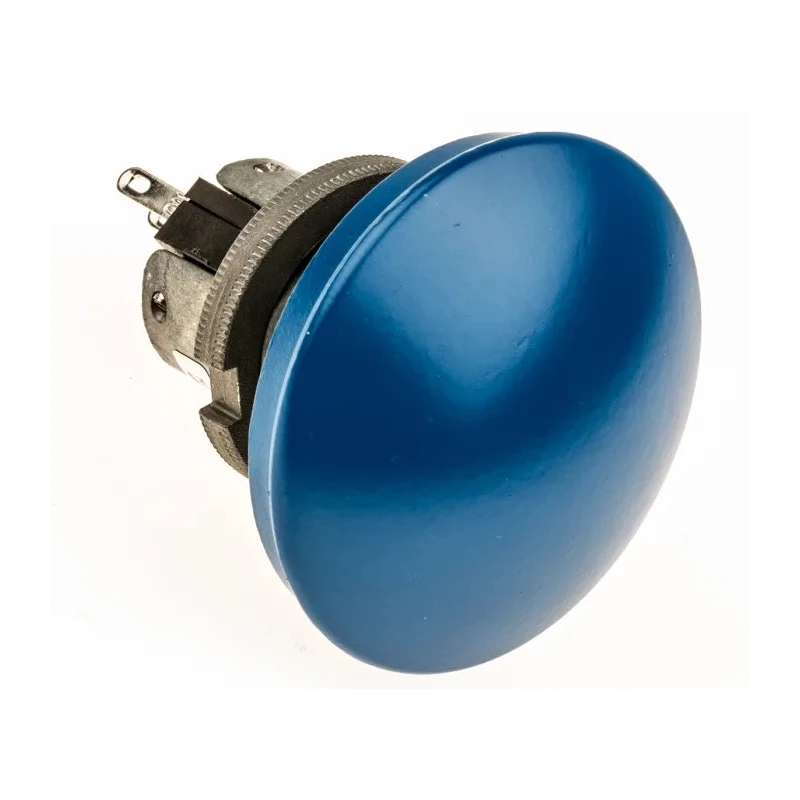

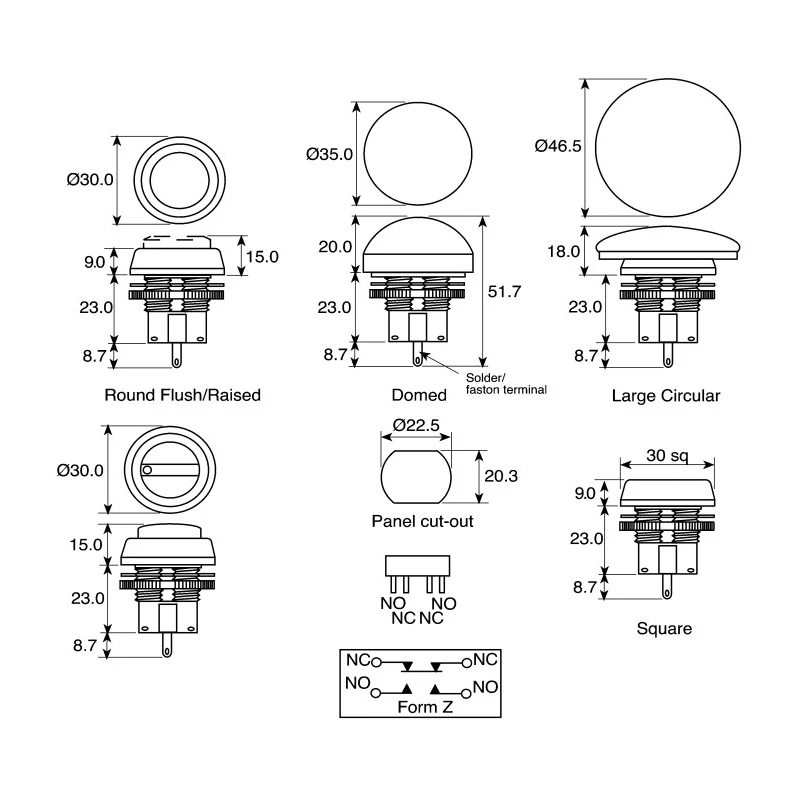

ITW Switches 76-9440/439088N is a high-impact, IP67 rated panel mount push button switch designed for reliability and durability in harsh environments. This momentary SPDT switch features a blue mushroom actuator and a 22 mm panel cutout, enabling easy installation in control panels.

Constructed from non-sparking zinc alloy, the switch offers explosive-proof properties, making it suitable for military applications, robust industrial settings, vandal resistant requirements, mining, petrochemical industries, and process control.

The switch operates at 250 V AC and DC with a contact current rating of 10 A, withstanding operating temperatures from -40°C up to 125°C. Its IP67 protection rating guarantees total dust ingress protection and resistance against temporary immersion in water up to 1 meter depth for 30 minutes.

Durability is enhanced by its ability to survive impacts of approximately a 5 kg mass dropped from 40 cm, translating to 20 joules impact resistance. The solder terminal type ensures secure and reliable electrical connections.

Designed for harsh environmental applications including military and industrial use. Blue mushroom style actuator with 22 mm panel cutout size for easy installation. Sealed to IP67 for dust protection and temporary immersion resistance.

Contact rating of 10 A with dual 250 V AC/DC voltages for versatile power handling. Constructed with non-sparking zinc alloy actuator and bezel for safety. Operates reliably across a temperature range from -40°C to 125°C.

Robust to impacts equivalent to 20 joules ensuring durability in tough conditions. Standard solder terminals for secure electrical connections. Suitable for mining, petrochemical, process control, and material handling industries.

CSA and UL approved ensuring compliance with industrial safety standards.

This switch series also includes other styles such as rotary and panel lamps with various actuator styles and LED colors. Note that these switches are not positive break types and should not be used for emergency stop applications.

Ideal for use in industrial control panels, process automation, military equipment, mining operations, petrochemical plants, and material handling machinery, the ITW Switches 76-9440/439088N offers reliable performance and long-term durability under demanding conditions.
