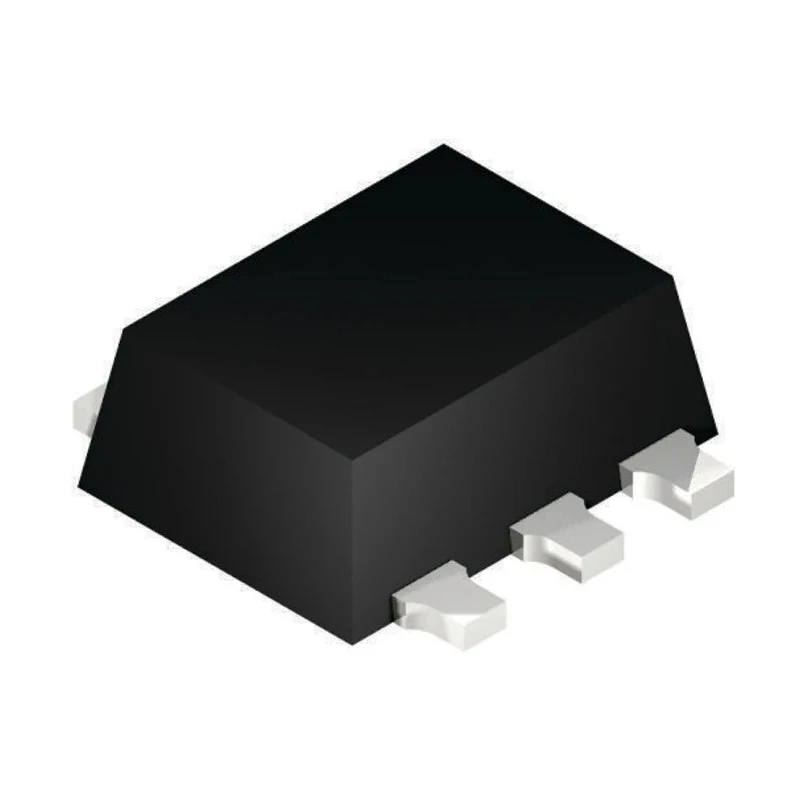

Nexperia Schottky Diode 23 V 1 A Surface Mount 6-Pin SSMini Package BAT960,115

Nexperia BAT960,115 Schottky Diode is a high-efficiency semiconductor device designed for surface mount applications. It supports a maximum continuous forward current of 1 ampere and a peak reverse voltage of 23 volts making it ideal for power management in compact electronic circuits.

The diode comes in an ultra-small 6-pin SSMini package with dimensions of 1.7 mm length, 1.3 mm width, and 0.6 mm height, enabling low-profile installations. Its low forward voltage drop of 550 millivolts and high surge current capability up to 8 amperes enhance performance and reliability.

Operating temperature range from -65°C to 125°C ensures excellent thermal resilience. The diode's Schottky barrier technology affords low capacitance and minimal power switching losses, suitable for industrial, laboratory, and commercial semiconductor applications.

Nexperia BAT960,115 is optimized for surface mounting on PCB assemblies requiring efficient rectification and switching with reduced energy dissipation. Its single diode configuration in BAT96 series offers robust electrical characteristics with negligible leakage currents.

Maximum continuous forward current: 1A. Peak reverse voltage: 23V. Ultra-small 6-pin SSMini package. Low forward voltage drop of 550 mV. Operating temperature range: -65°C to 125°C. Peak surge current of 8A. Compact dimensions: 1.7 x 1.3 x 0.6 mm.

Manufactured in Hong Kong.

This component is widely applicable in power supply circuits, rectifiers, and fast switching devices in electronic manufacturing, research labs, HVAC systems, and automotive electronics (non-automotive standard compliant). The diode ensures enhanced energy efficiency and long operational life.
