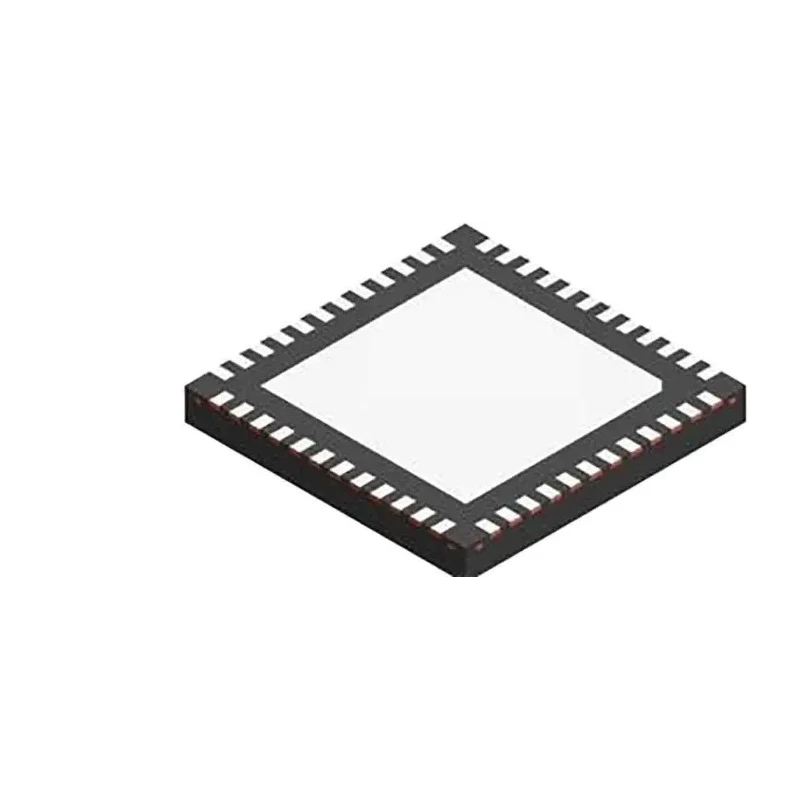

Renesas Electronics Low Power NTSC/PAL/SECAM Video Decoder IC 48-Pin QFN TW9910-NB2-GR
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 10 bit |
| Brand | Renesas Electronics |
| Model | TW9910-NB2-GR |
| Mount Type | Surface |
| Series | TW9910 |
| Package Type | QFN |
| Sub Type | Decoder |
| Interface Type | 2 Wire |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.8V |
| Number of ADCs | 2 |
Key Features
- Supports NTSC (M, 4.43) and PAL (B, D, G, H, I, M, N, N combination), PAL (60), and SECAM with automatic format detection.
- Offers software selectable analog inputs allowing 4 CVBS or 3 CVBS and 1 Y/C input combinations.
- Includes built-in analog anti-alias filter for enhanced signal quality.
- Features two 10-bit ADCs with analog clamping circuit for high resolution video decoding.
- Provides fully programmable static gain or automatic gain control on the Y channel for flexible adjustment.
- Equipped with programmable white peak control and a 4-H adaptive comb filter for Y/C separation.
- Includes PAL delay line for color phase error correction to improve color accuracy.
- Incorporates image enhancement features such as peaking and CTI for optimized video output.
Product Description
Renesas Electronics TW9910-NB2-GR Decoder IC is a sophisticated low power video decoder integrated circuit in a 48-pin QFN package designed for NTSC, PAL, and SECAM analog video standards. It supports automatic detection of video formats including NTSC and various PAL variants, enabling versatile use across global video systems.
This IC features software selectable analog inputs for flexible combinations of composite video baseband signal (CVBS) and luminance/chrominance (Y/C) inputs, enhancing adaptability in different video capture setups. It incorporates an analog anti-alias filter that improves the quality of video signals before analog-to-digital conversion.
Two high precision 10-bit ADCs and an analog clamping circuit facilitate accurate signal digitization with minimal distortion. Programmable gain controls - including static gain and automatic gain control - on the luminance channel provide precise image brightness management. Additionally, the white peak control and an advanced 4-H adaptive comb filter enable superior Y/C separation and signal clarity.
The decoder integrates a PAL delay line to correct color phase errors, ensuring accurate color reproduction in PAL video systems. It also offers image enhancement functions such as peaking and color transient improvement (CTI), delivering sharper and more vibrant images.
This component is ideal for industrial, consumer electronics, and broadcast equipment manufacturers requiring high-quality video decoding with flexible input options. It is surface mounted with a compact 48-pin QFN package suitable for space-constrained applications.
Supports multiple analog video standards including NTSC, PAL, and SECAM with automatic detection. Programmable gain and white peak controls for precise video signal adjustment. High accuracy 10-bit ADCs enable high resolution video decoding.
Built-in filters and delay line enhance image quality and color fidelity. Compact 48-pin QFN package ideal for modern electronic devices. Explore more semiconductor products on EnvMart to find compatible ICs and components for your electronic design and manufacturing needs.
