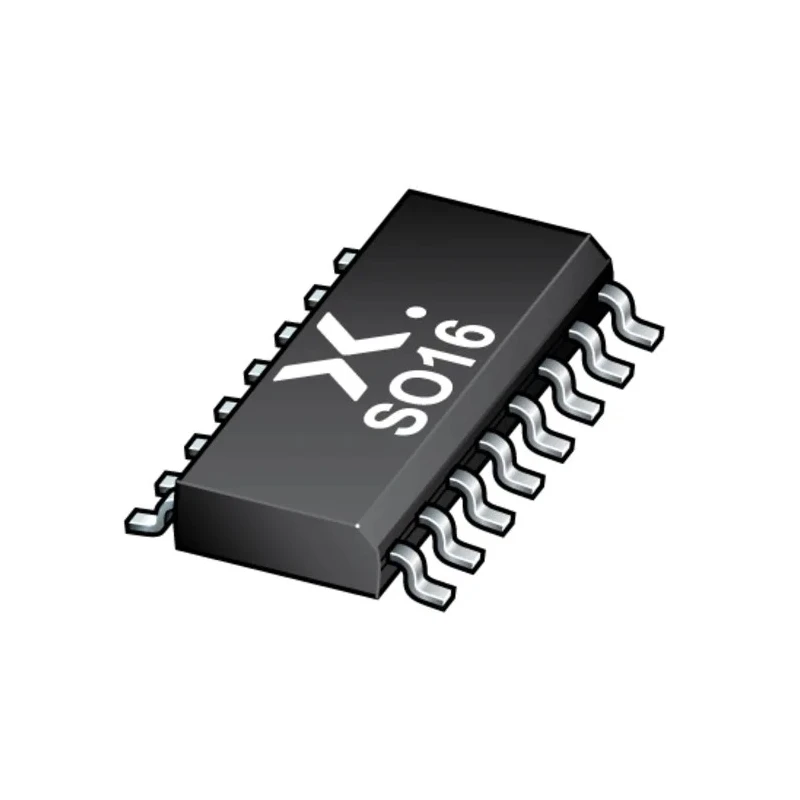

Nexperia Decoder Logic IC 16-Pin SO Surface Mount 4.5-5.5V, 74HCT138D,653

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Decoder Logic IC 16-Pin SO Surface Mount 4.5-5.5V, 74HCT138D,653

Name: Nexperia Decoder Logic IC 16-Pin SO Surface Mount 4.5-5.5V, 74HCT138D,653
Brand: Nexperia
SKU: 150406
Price: 0.26 USD
Availability: InStock



Category Encoder & Decoder ICs Brand Nexperia Condition New

Specifications

Country of Origin	Thailand
Brand	Nexperia
Height	2mm
Length	6.4mm
Model	74HCT138D,653
Mount Type	Surface
Number of inputs	6
Series	74HCT
Maximum Operating Temperature	125°C
Package Type	SO
Minimum Operating Temperature	-40°C
Pin Count	16
Maximum Supply Voltage	5.5V
Logic Family	74HCT
Logic Function	Demultiplexer, Decoder
Minimum Supply Voltage	4.5V

Key Features

Features three enable inputs for easy expansion to a 1-of-32 line decoder.
Operates with a minimum supply voltage of 4.5V and maximum of 5.5V.
Suitable for surface mount assembly with a 16-pin SO package.
Operating temperature ranges from -40°C to 125°C.
Ideal for memory chip select decoding and demultiplexing functions.
High frequency and multiple input enable functions included.
Manufactured in Thailand ensuring quality and reliability.

Product Description

Nexperia 74HCT138D,653 decoder is a 16-pin surface mount logic IC operating at a supply voltage range of 4.5V to 5.5V, designed specifically for digital signal demultiplexing and decoding applications.

It incorporates three enable inputs (E1, E2, and E3), allowing easy parallel expansion to configure up to a 1-of-32 decoder by cascading four 74HCT138 ICs with additional inverter circuits. All outputs remain HIGH unless the enable inputs are in the specified low and high logic configurations, enabling precise control.

This IC package type is Surface Mount (SO) with 16 pins, suitable for modern PCB assembly and compact designs. It functions efficiently under a broad temperature range from -40°C up to 125°C, ensuring robustness in industrial, automotive, and consumer electronics environments. The logic family is 74HCT, well known for high speed and reliable performance.

The device is overvoltage tolerant and supports high frequency operation, making it highly versatile.

Applications include memory chip select decoding, complex digital circuit design, multiplexing and demultiplexing tasks, and other digital logic functions in industrial automation, embedded systems, and electronic control units.

Includes three enable inputs for flexible expansion. Surface mount 16-pin SO package suitable for compact boards. Operates from 4.5V to 5.5V supply voltage. Wide temperature range from -40°C to 125°C for rugged environments.

Integrated input latch and load options enhance functionality. High frequency capable for fast switching applications. Ideal for industrial, automotive, and consumer electronic applications. Explore more logic ICs and electronic components on EnvMart to find solutions tailored to your digital design needs.
