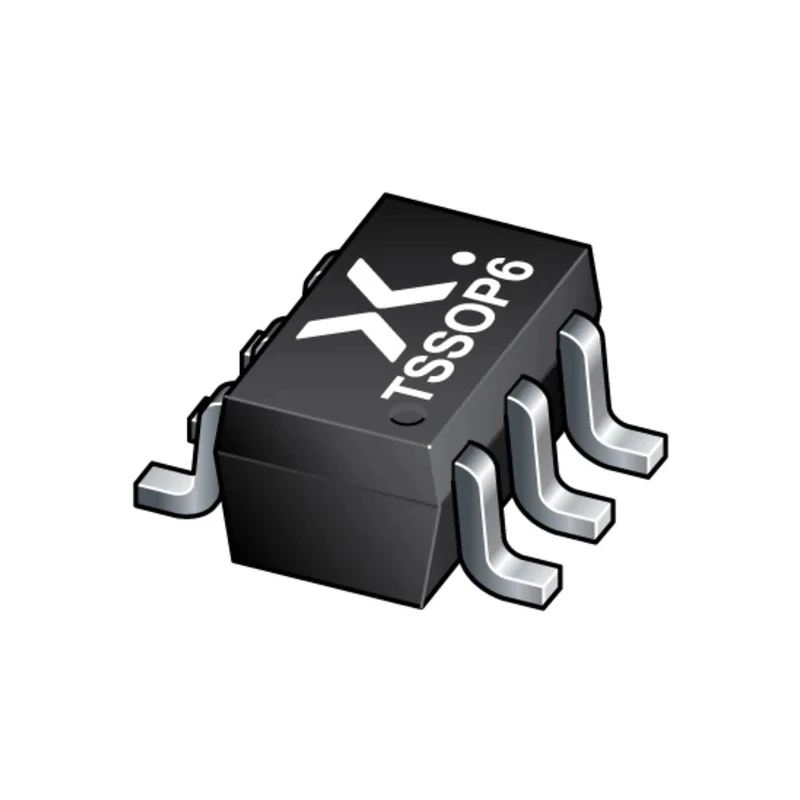

Nexperia 74LVC1G19GW,125 CMOS Low Power 1-of-2 Decoder/Demultiplexer 6-Pin TSSOP 1.65V-5.5V 74LVC Series 74LVC1G19GW,125

Nexperia 74LVC1G19GW,125 is a CMOS low power 1-of-2 decoder/demultiplexer IC implemented in a compact 6-pin TSSOP package. It features a logic family from the 74LVC series and operates within a wide supply voltage range of 1.65 V to 5.5 V, making it highly suitable for mixed 3.3 V and 5 V digital circuits. The device buffers input data and delivers complementary outputs with an enable (E) input control that activates outputs when LOW.

Designed for surface mount technology, this decoder supports two input lines and provides reliable demultiplexing functions with high noise immunity and CMOS low power consumption characteristics. The E pin acts as a common output enable, facilitating power management and signal gating in complex layouts.

The input pins are 5 V tolerant allowing seamless interfacing with TTL logic levels, and the device meets industrial temperature requirements ranging from -40°C to 125°C. It includes IOFF circuitry that disables outputs during partial power-down to avoid damaging backflow currents, enhancing durability in power-saving modes.

Latch-up performance exceeds 250 mA providing additional protection, while its compact 2.2 mm length and 1 mm height package facilitate space-saving PCB designs. The 74LVC1G19GW,125 is well-suited for applications in industrial automation, embedded systems, and electronic signal processing circuits where reliable decoding and demultiplexing capabilities are critical.

This decoder buffers input data and provides complementary outputs controlled by a common enable signal. Wide supply range from 1.65 V to 5.5 V for versatile digital system integration. High noise immunity ensures stable logic performance in electrically noisy environments.

Inputs tolerate 5 V levels, ideal for interfacing with different logic families. Surface mount 6-pin TSSOP package supports compact PCBs. Operates in extended temperature range from -40° C to 125° C for industrial use. IOFF power-down feature prevents backflow current damage.

Latch-up protection exceeds 250 mA, enhancing device reliability. Direct TTL interface capability for broad logic compatibility. Suitable for electronic, industrial, embedded, and automation applications. Explore additional Nexperia semiconductor and logic IC products with EnvMart for reliable industrial and electronics component needs.
