Nexperia Low-Voltage CMOS Encoder 6-Pin SC-88 Surface Mount Multiplexer 2 Inputs 1.65-5.5V 74LVC1G157GW,125

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Low-Voltage CMOS Encoder 6-Pin SC-88 Surface Mount Multiplexer 2 Inputs 1.65-5.5V 74LVC1G157GW,125

Name: Nexperia Low-Voltage CMOS Encoder 6-Pin SC-88 Surface Mount Multiplexer 2 Inputs 1.65-5.5V 74LVC1G157GW,125
Brand: Nexperia
SKU: 133204
Price: 0.12 USD
Availability: InStock



Category Encoder & Decoder ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	2.2mm
Model	74LVC1G157GW,125
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output LVCMOS
Number of inputs	2
Series	74LVC
Maximum Operating Temperature	125°C
Package Type	SC-88
Minimum Operating Temperature	-40°C
Operating Voltage	1.65 to 5.5 V
Pin Count	6
Maximum Supply Voltage	5.5V
Logic Family	74LVC
Logic Function	Multiplexer
Minimum Supply Voltage	1.65V

Key Features

This multiplexer encoder offers compatibility with input LVTTL/TTL and output LVCMOS logic families.
Designed for surface mount applications with a compact SC-88 package footprint.
Operates over a temperature range of -40°C to 125°C ensuring robust performance in harsh environments.
Small physical size with dimensions of 2.2 mm length and 1 mm height suitable for space-constrained designs.
Automotive standard is not met, intended for standard industrial and electronic component applications.
Series 74LVC offers low power consumption and high switching speeds.

Product Description

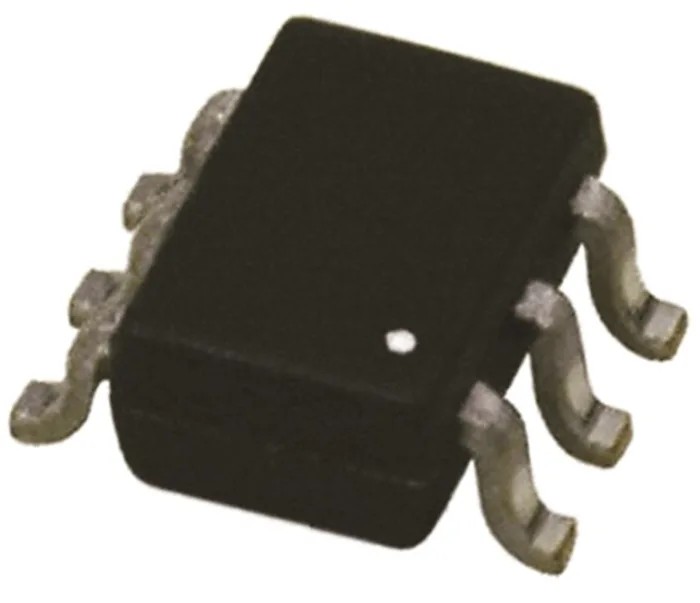

Nexperia 74LVC1G157GW,125 is a high-performance, low-voltage CMOS encoder IC designed for multiplexing with 2 inputs. The product comes in a compact 6-pin SC-88 surface mount package measuring 2.2 mm in length and 1 mm in height, enabling integration into small form factor electronic devices.

Operating voltage ranges from 1.65 to 5.5 V, making it suitable for low power electronic designs. This encoder supports compatibility with input logic families LVTTL and TTL and outputs LVCMOS signals, facilitating seamless interfacing in various digital circuits.

The device is built on the 74LVC series family, featuring low power consumption and high-speed switching characteristics. It is rated for operating temperatures between -40°C and +125°C, suitable for industrial environments requiring reliable performance under thermal stress.

This encoder is surface mounted on PCBs focusing on modern electronics manufacturing practices. Although it does not conform to automotive standards, it is ideal for general semiconductor applications including industrial electronics, consumer devices, and embedded systems.

This multiplexer encoder offers compatibility with input LVTTL/TTL and output LVCMOS logic families. Designed for surface mount applications with a compact SC-88 package footprint. Operates over a temperature range of -40°C to 125°C ensuring robust performance in harsh environments.

Small physical size with dimensions of 2.2 mm length and 1 mm height suitable for space-constrained designs. Automotive standard is not met, intended for standard industrial and electronic component applications. Series 74LVC offers low power consumption and high switching speeds.

Nexperia semiconductor products are widely used in the electronics industry for integrated circuit solutions, offering reliability and performance. Explore more components in the Logic ICs and Encoder & Decoder ICs categories on EnvMart for comprehensive electronic design needs.
