TDK Film Capacitor 220 nF 630V AC 630 V DC Through Hole Polypropylene B32652A6224J000

Free Delivery in India | Lowest Global Shipping Charges

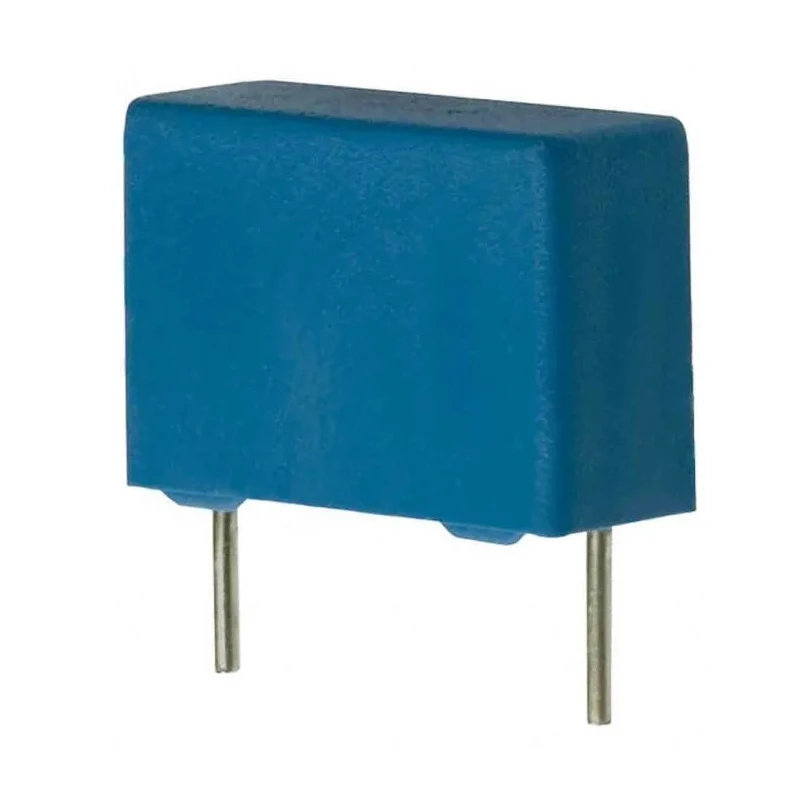

TDK Film Capacitor 220 nF 630V AC 630 V DC Through Hole Polypropylene B32652A6224J000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	17.5mm
Length	18mm
Model	B32652A6224J000
Width	9mm
Mount Type	Through Hole
Series	B32652
Maximum Operating Temperature	110°C
Capacitance	220nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	630V ac
Rated DC Voltage	630V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

This polypropylene film capacitor features a capacitance of 220 nF rated at 630V AC and 630V DC.
It has a through-hole mount type with 2 pins and a lead pitch of 15 mm.
Maximum operating temperature is 110°C ensuring performance stability under intense conditions.
The capacitor complies with automotive standard AEC-Q200 Rev D for quality and durability.
It has a compact size with dimensions 18 mm length, 17.5 mm height, and 9 mm width.
Leads are parallel wire with a diameter of 0.8 mm and are lead-free tinned.
The device is compliant with RoHS and UL safety standards.
It is suited for applications in electronic ballasts, switch-mode power supplies, and other industrial electronics.

Product Description

TDK B32652A6224J000 Film Capacitor is a high-quality polypropylene film capacitor with a capacitance of 220 nF and rated voltages of 630V AC and 630V DC. It features a through-hole mount type with two pins and a lead pitch of 15 mm, suited for reliable installation in printed circuit boards.

The maximum operating temperature is 110°C, allowing this capacitor to perform effectively under harsh thermal environments, making it suitable for demanding electronic and automotive systems. It is compliant with the AEC-Q200 Rev D automotive standard, ensuring durability and quality for automotive electronic applications.

Compact in size, the capacitor measures 18 mm in length, 17.5 mm in height, and 9 mm in width, with lead wire diameter of 0.8 mm. The leads are parallel wire type, featuring lead-free tinning for environmental safety, and special lead lengths are available upon request.

This capacitor meets UL and RoHS standards, guaranteeing compliance with international safety and environmental standards. Its design offers high pulse strength, very low inductance, and high contact reliability. Halogen-free capacitors are also available upon request for environmentally sensitive applications.

Typical industrial and electronic applications include use in electronic ballasts, switch-mode power supplies, and various power and control circuits within industrial, automotive, and telecommunications segments.

This capacitor is designed to enhance electronic circuit stability through reliable capacitance performance. Its robust build ensures suitability in high-voltage and high-temperature electrical circuits. Compliance with automotive and industrial standards guarantees performance consistency and safety.

Its compact form factor supports space-saving designs in complex electronic assemblies. Manufactured in China, the product maintains strict quality control for consistent output. Explore the TDK Film Capacitor range on EnvMart for technical excellence and dependable electronic components suited for industrial and automotive applications.
