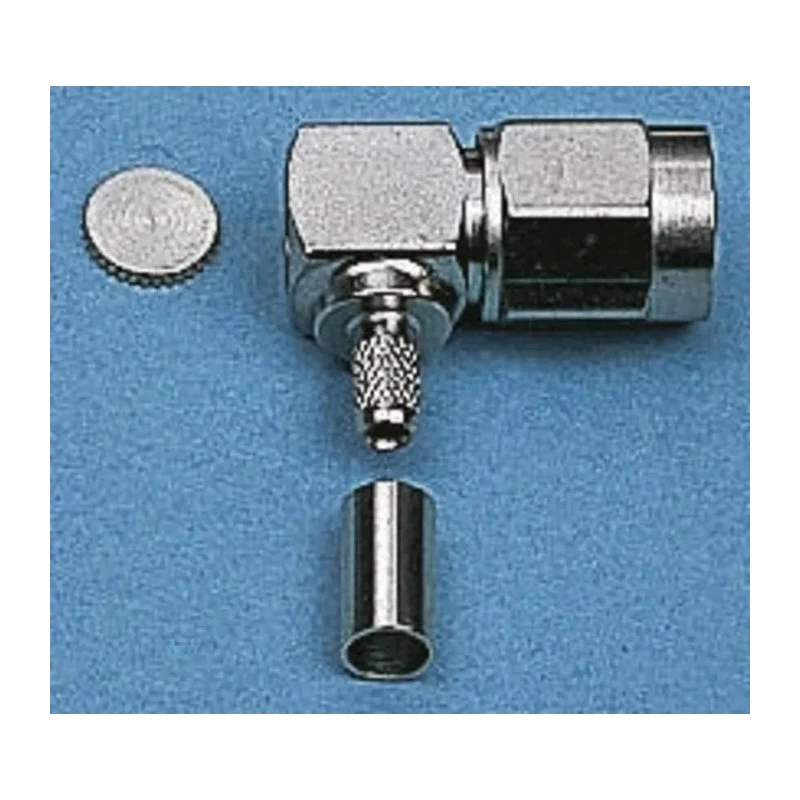

Telegartner SMA Series Coaxial Connector Cable Male SMA, 50 Ω, Right Angle Body Crimp J01150A0089
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01150A0089 |
| Mount Type | Cable |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | SMA |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG142B/U, RG223/U, RG400/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel over Copper |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMA |
| Body Plating | Nickel |
Key Features
- This cable features a male SMA coaxial connector with a right angle body for space-saving installations.
- It supports operating frequencies up to 18 GHz suitable for high frequency applications.
- The cable types compatible include RG142B/U, RG223/U, and RG400/U for versatile usage.
- The connector has a nickel-plated brass housing with gold over nickel over copper contact plating for corrosion resistance.
- It operates reliably in a wide temperature range from -65°C to 165°C.
- The termination type is crimp, ensuring secure and durable cable connections.
- Contact material is beryllium copper for excellent conductivity and mechanical strength.
- Designed with a standard size and no bulkhead, it is optimized for cable mounting.
Product Description
Telegartner J01150A0089 SMA Series Coaxial Connector Cable Male SMA, 50 Ω, Right Angle Body Crimp is a precision-engineered coaxial connector designed for use in RF and microwave applications requiring reliable and stable performance.
The cable connector features a brass housing nickel-plated for corrosion resistance and a gold plated beryllium copper contact for excellent electrical conductivity. This connector supports a wide temperature range from -65°C to 165°C, making it suitable for harsh operating environments commonly found in industrial, telecommunications, laboratory, and aerospace settings.
The right angle body design allows for compact installation spaces, enabling effective cable routing in dense electronic assemblies. Supporting cable types RG142B/U, RG223/U, and RG400/U, this connector is versatile for various coaxial cable assemblies.
It has a 50 Ω impedance, which is standard for many RF systems, supporting frequencies up to 18 GHz with minimal signal loss or reflection. The crimp termination type ensures secure attachment to cables, providing mechanical robustness and electrical integrity.
Manufactured in Germany, this connector meets strict manufacturing and quality control standards to deliver dependable long-term service. This product is ideal for industrial RF systems, telecommunications equipment, measurement instruments, and communications infrastructure.
The right angle design is optimal for applications with space constraints. The nickel plating and gold plating enhance durability and ensure stable contact resistance. Compatible with multiple cable types for flexible system design.
Thermally stable from extreme cold to high heat conditions suits demanding environments. Explore EnvMart's wide selection of Coaxial Connectors for high quality, performance-driven RF connectivity solutions tailored to diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports operating frequencies up to 18 GHz, making it suitable for high frequency applications.
It is compatible with RG142B/U, RG223/U, and RG400/U cable types, providing versatility for various coaxial cable assemblies.
The connector operates reliably in a wide temperature range from -65°C to 165°C, suitable for harsh environments.
This model features a crimp termination type, ensuring secure attachment to cables for mechanical robustness and electrical integrity.
The contact is plated with gold over nickel over copper, enhancing durability and ensuring stable contact resistance.
This connector has a standard impedance rating of 50 Ω, which is commonly used in RF systems.
It features a right angle body design, which allows for compact installation in tight spaces.
This product is manufactured in Germany, adhering to strict manufacturing and quality control standards.
The contact material is beryllium copper, which provides excellent conductivity and mechanical strength.
The body of this connector is nickel-plated, which provides corrosion resistance.
It is designed for use in RF and microwave applications, including telecommunications equipment and measurement instruments.
This model is classified as a standard size connector, designed for cable mounting without a bulkhead.
