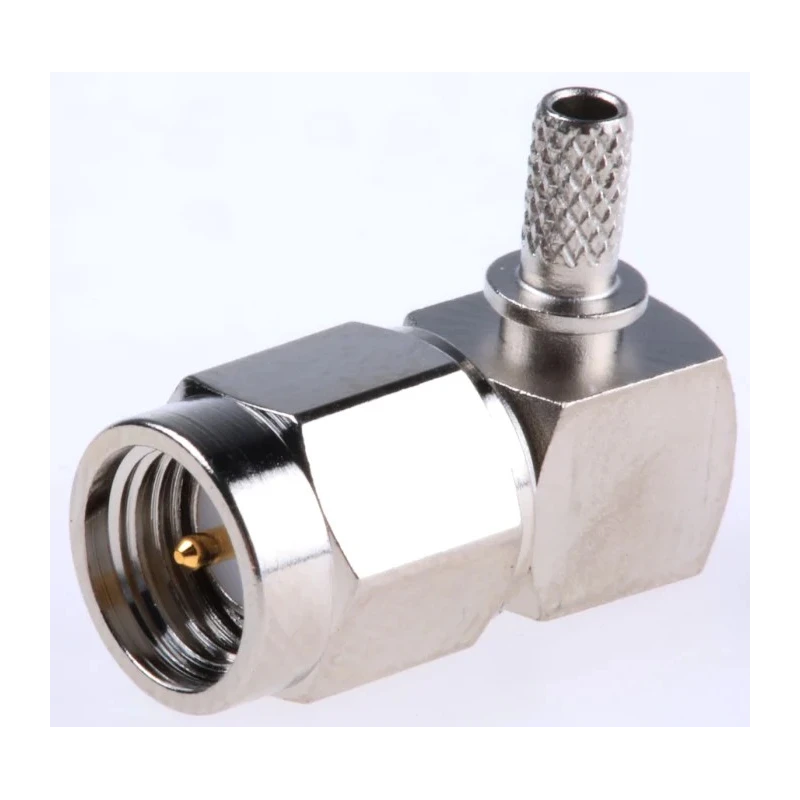

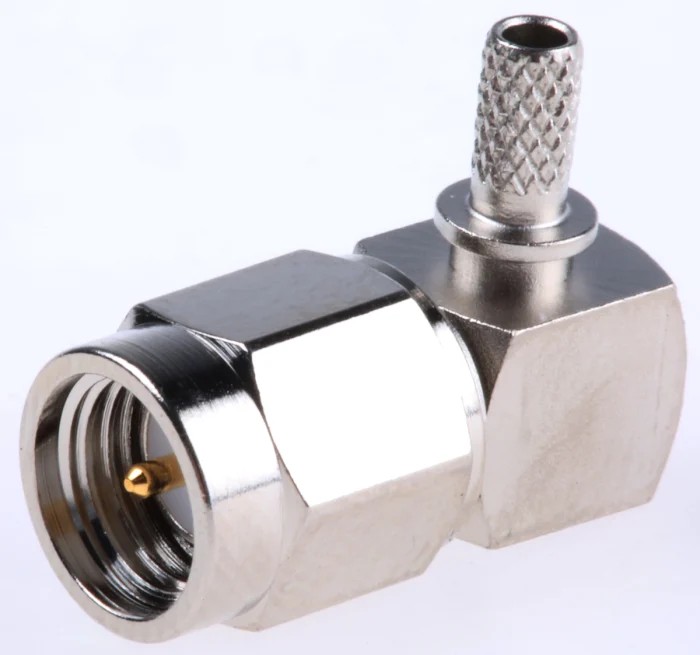

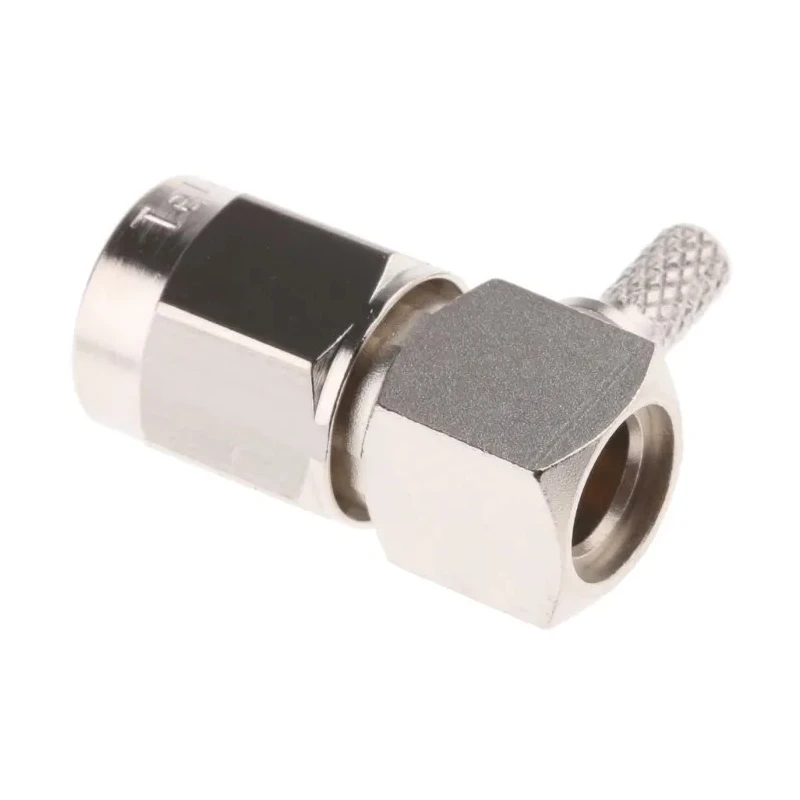

Telegartner SMA Series Coaxial Connector Cable Male SMA, 50 Ω, Right Angle Body Crimp J01150A0069
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01150A0069 |
| Mount Type | Cable |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | SMA |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG316/U, RG188A/U, RG-174U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel over Copper |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMA |
| Body Plating | Nickel |
Key Features
- Nickel-plated brass housing for enhanced durability.
- Gold-plated beryllium copper contacts ensure low electrical resistance.
- Right angle body orientation optimizes cable routing in limited spaces.
- Supports operating frequencies up to 18 GHz for high-frequency applications.
- Compatible with RG316/U, RG188A/U, and RG-174U cable types.
- Crimp termination type for secure and stable cable attachment.
- PTFE insulation delivers excellent electrical and thermal performance.
- Operates reliably in temperature range from -65°C to 165°C.
Product Description
Telegartner J01150A0069 SMA Series Coaxial Connector Cable is a precision-engineered RF coaxial connector designed for industrial and electronic applications requiring stable high-frequency signal transmission.
This cable assembly features a right angle male SMA connector with a 50 Ω impedance, optimized for RF and microwave signal integrity. The connector body is crafted from nickel-plated brass, providing robustness and excellent corrosion resistance.
The inner conductors utilize gold-plated beryllium copper contacts combined with PTFE insulation to achieve low signal loss and maintain consistent electrical performance over wide temperature ranges from -65°C up to 165°C. The termination type is crimp, ensuring firm and reliable mechanical and electrical connection to cables, compatible with RG316/U, RG188A/U, and RG-174U cable types.
Nickel-plated brass housing for enhanced durability. Gold-plated beryllium copper contacts for superior conductivity. Right angle body orientation for flexible installation. Supports operating frequency up to 18 GHz for high-performance applications.
Compatible with multiple cable types including RG316/U, RG188A/U, and RG-174U. Crimp termination ensures stable and secure connections. PTFE insulation for reliable thermal and electrical insulation. Operates effectively within a temperature range from -65°C to 165°C.
Manufactured in Germany to stringent quality standards.
This product is ideal for use in electronic components, power connectors, RF communication systems, telecommunications, and other high-frequency laboratory and industrial settings. Its design and material selection ensure long service life and excellent performance in demanding environments.
Explore more Coaxial Connectors and related accessories in the Electronics & Electricals category on EnvMart for comprehensive product options tailored to professional technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports operating frequencies up to 18 GHz, making it suitable for high-frequency applications.
It is compatible with RG316/U, RG188A/U, and RG-174U cable types, ensuring flexible installation options.
This connector operates reliably within a temperature range from -65°C to 165°C, suitable for various environments.
The housing is made of nickel-plated brass, while the contacts are gold-plated beryllium copper, ensuring low electrical resistance.
It features a crimp termination type, providing a secure and stable connection to cables.
This model has an impedance of 50 Ω, which is standard for many RF applications.
The connector has a right angle body orientation, optimizing cable routing in limited spaces.
The contacts are plated with gold over nickel over copper, which enhances conductivity and reduces signal loss.
This connector is manufactured in Germany to stringent quality standards.
Both the contact and connector gender of this unit is male, suitable for various applications.
This model belongs to the SMA series, which is designed for RF and microwave signal integrity.
The connector is classified as a standard size, although specific dimensions are not provided.
