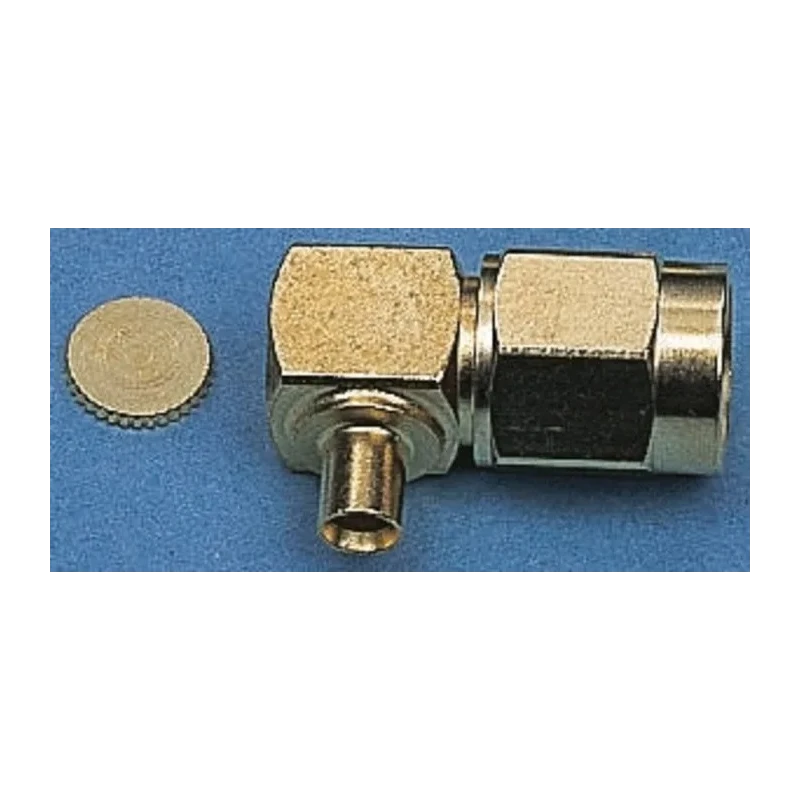

Telegartner SMA Series Coaxial Connector Cable Male SMA, 50 Ω, Right Angle Body, Solder Termination J01150A0151

Telegartner J01150A0151 SMA Series Coaxial Connector Cable is engineered for high-frequency RF applications requiring robust and precise connectivity. This coaxial connector cable features a male SMA connector with a right angle body, designed for solder termination, providing secure mechanical and electrical performance.

The cable uses RG402/U type coaxial cable with a standard size, maintaining a characteristic impedance of 50 Ω, essential for minimizing signal loss and reflections in RF circuits. Its design supports operation up to 18 GHz, making it suitable for radar, telecommunication, test equipment, and other electronic industries requiring high-frequency data transmission.

This connector's body is plated with gold, ensuring excellent corrosion resistance and signal integrity, while the internal contact is made of beryllium copper plated with gold over nickel over copper to guarantee superior conductivity and mechanical strength. The PTFE insulation ensures excellent dielectric properties and stability across a wide temperature range from -65°C to 165°C.

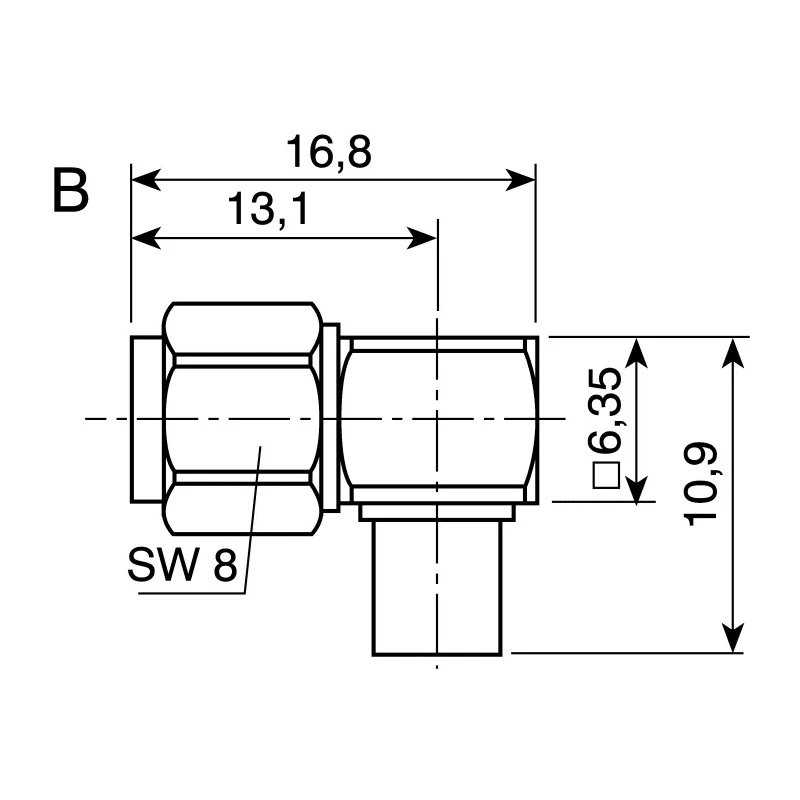

The right angle orientation facilitates space-saving cable routing in complex assemblies or constrained environments without compromising performance. Its solder termination type provides a strong, fixed connection between the cable and connector, suited for permanent installations.

This product complies with no specific additional standards or approvals but benefits from Telegartner's high manufacturing and quality control standards. It is made in Germany, reflecting top-tier engineering and reliability.

Operates up to 18 GHz frequency, suitable for RF applications. Constructed with gold-plated brass shell and PTFE insulation for durability. Features beryllium copper contacts plated with gold over nickel over copper for excellent conductivity.

Compatible with RG402/U cable type and standard size configuration. Designed to withstand operating temperatures from -65°C to 165°C. Solder termination offers secure and reliable cable connections. Right angle connector orientation improves cable routing in tight spaces.

Impedance of 50 Ω is standard for RF and coaxial cable systems. Precise normal polarity and male contact gender ensure system compatibility. Manufactured in Germany under strict quality standards.

This coaxial connector cable is ideal for industrial, laboratory, telecommunications, defense, and electronic manufacturing sectors that require durable, high-frequency coaxial cable solutions. Look for more quality Coaxial Connectors and cables in the Electronics Components category at EnvMart.
