KEMET Film Capacitor Through Hole ±5 % Tolerance 68 nF 630 V dc 400 V ac R76PI268050H7J

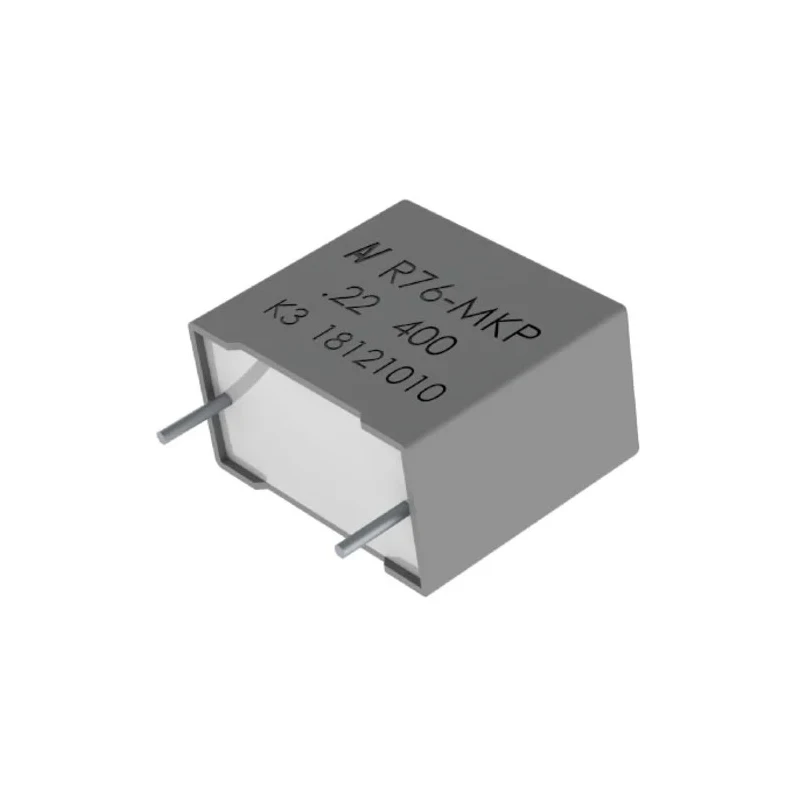

The KEMET R76PI268050H7J is a film capacitor designed for precise electronic component applications, featuring a 68 nF capacitance and ±5 % tolerance. It operates at a rated DC voltage of 630 V and an AC voltage of 400 V. The capacitor employs a through-hole mounting style with radial tinned leads and solder terminals, ensuring reliable electrical connection and mechanical stability.

This capacitor is constructed with polypropylene film and double metallized polyester film electrodes, encapsulated within a self-extinguishing, solvent-resistant plastic case incorporating thermosetting resin. The design supports a wide operating temperature range from -55°C up to 125°C, making it suitable for challenging industrial environments.

Its lead pitch is 15 mm with a lead length of 25 mm and a pin count of 2. The component complies with automotive quality requirements per AEC-Q200 standard and adheres to RoHS and IEC 60286-2 environmental and safety standards. Electrical characteristics include a low dissipation factor of 0.1 % and an equivalent series resistance (ESR) value of 19 mΩ, ensuring efficiency and performance at high frequencies.

The capacitor is ideal for use in resonant circuits, high frequency and snubber circuits, silicon-controlled rectifiers (SCR), insulated-gate bipolar transistors (IGBT) applications, and MOSFET commutation circuits, particularly in high voltage and high current scenarios with elevated ambient temperatures.

Manufactured in China, this capacitor is supplied in a bag packaging suitable for handling and storage. The R76 series covers voltage ratings from 250 to 2000 V DC, capacitance from 100 pF to 15 μF, and lead spacing options from 10 mm to 37.5 mm, providing extensive versatility for diverse electronic designs.

The capacitor is constructed with polypropylene and metallized polyester films for durability and self-healing. It meets strict automotive standards, including AEC-Q200, ensuring high reliability. Excellent electrical characteristics include low ESR and dissipation factor for high frequency use.

Wide temperature range operation supports harsh environmental conditions. Compliant with RoHS and IEC 60286-2 environmental standards. Ideal for resonant circuits, snubbers, SCR, IGBT, and MOSFET applications. Lead pitch and length optimized for through-hole solder mounting.

This product belongs to the Film Capacitor category in Electronics Components, suitable for industrial, laboratory, automotive, electronic design, and manufacturing applications. Explore more high-performance capacitors and electronic components on EnvMart for your project needs.
