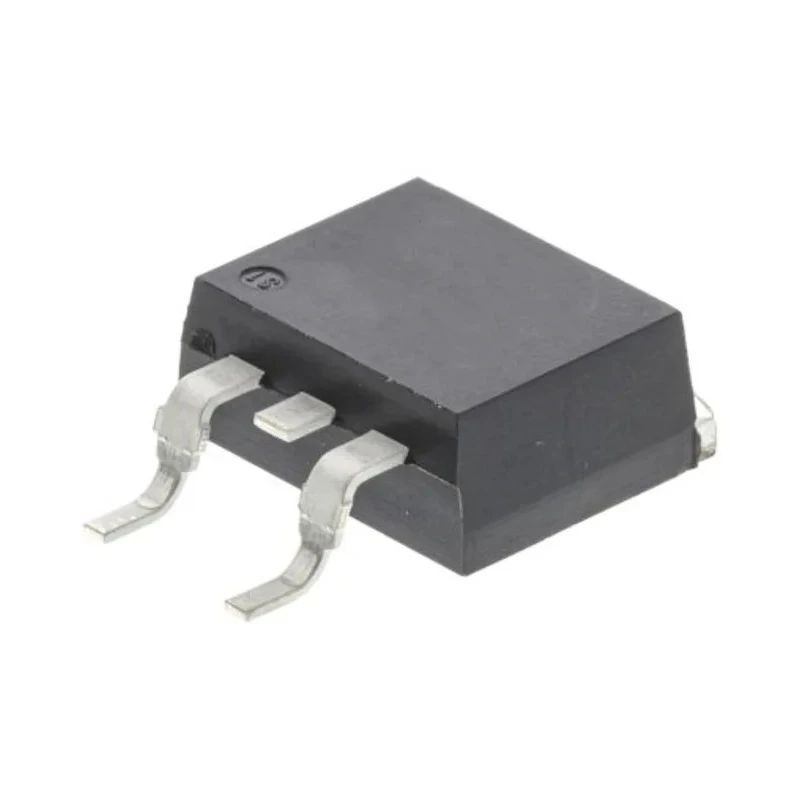

STMicroelectronics High Temperature 20 A SCR Thyristor 600 V TO-263 Package TN2010H-6G
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Model | TN2010H-6G |
| Mount Type | Surface |
| Series | TN |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL94 V0, ECOPACK2 |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 20A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 180A |
| Maximum Gate Trigger Current Igt | 10mA |
| Maximum Holding Current Ih | 40mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.6V |
| Repetitive Peak Off-State Current | 5μA |
Key Features
- Rated average on-state current of 20 amperes for robust load handling.
- Repetitive peak reverse voltage of 600 volts suitable for high voltage applications.
- Surge current rating of 180 amperes supports transient load surges.
- Low gate trigger current of 10 milliamperes enables efficient control circuit design.
- Operates reliably over a wide temperature range from -40°C to 150°C junction temperature.
- High noise immunity with dV/dt of 400 V/μs enhances performance under electrical noise.
- Compact TO-263 (D²PAK) package for modern surface mount technology designs.
- Features 3 pins and maximum holding current of 40 milliamperes for stable operation.
Product Description
STMicroelectronics TN2010H-6G is a high temperature rated silicon controlled rectifier (SCR) designed for demanding power control applications requiring up to 20 A RMS current handling. Packaged in a TO-263 surface mount D²PAK, this SCR supports modern compact circuit board layouts and back-to-back configurations.
This device delivers high thermal performance with a maximum junction temperature of 150 °C, enabling stable operation in harsh thermal conditions. The repetitive peak reverse voltage rating of 600 V and surge current capacity of 180 A make it reliable for a broad range of industrial power switching tasks.
Featuring a low gate triggering current of 10 mA and high noise immunity (dV/dt of 400 V/µs), the TN2010H-6G facilitates the design of compact and robust control circuits capable of withstanding electrical interference. Its 3-pin configuration and 40 mA maximum holding current ensure consistent switching operation.
The peak on-state voltage of 1.6 V helps minimize conduction losses, improving efficiency. This product complies with UL94 V0 flammability rating and ECOPACK2 environmental standards, affirming its quality and safety.
Typical applications include industrial automation power controllers, motor speed controllers, lighting controls, and heating element regulation within commercial, manufacturing, and HVAC systems. The device's high junction temperature tolerance and robust electrical ratings offer reliable performance in these environments.
Manufactured in China, the TN2010H-6G is part of STMicroelectronics' trusted TN series of thyristors, providing dependable solutions for power semiconductor requirements. Rated average on-state current: 20 A. Repetitive peak reverse voltage: 600 V.
Surge current rating: 180 A. Maximum gate trigger current: 10 mA. Operating temperature range: -40°C to 150°C. Package type: TO-263 D²PAK surface mount. Pin count: 3. Maximum holding current: 40 mA. Peak on-state voltage: 1.6 V.
Standards: UL94 V0, ECOPACK2.
Discover a wide range of Discrete Semiconductors and power control components from STMicroelectronics and browse EnvMart for reliable industrial electronic parts suited to your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for the TN2010H-6G is 20 amperes, suitable for robust load handling.
This model operates reliably at a maximum junction temperature of 150°C.
The repetitive peak reverse voltage rating of the TN2010H-6G is 600 volts, making it suitable for high voltage applications.
The surge current rating for this thyristor is 180 amperes, supporting transient load surges.
The TN2010H-6G is packaged in a TO-263 (D²PAK) surface mount configuration.
The maximum gate trigger current for the TN2010H-6G is 10 milliamperes.
The peak on-state voltage of the TN2010H-6G is 1.6 volts, which helps minimize conduction losses.
The minimum operating temperature for the TN2010H-6G is -40°C.
This model features a 3-pin configuration for stable operation.
This device complies with UL94 V0 flammability rating and ECOPACK2 environmental standards.
The maximum holding current for the TN2010H-6G is 40 milliamperes.
Typical applications include industrial automation power controllers, motor speed controllers, and lighting controls.
