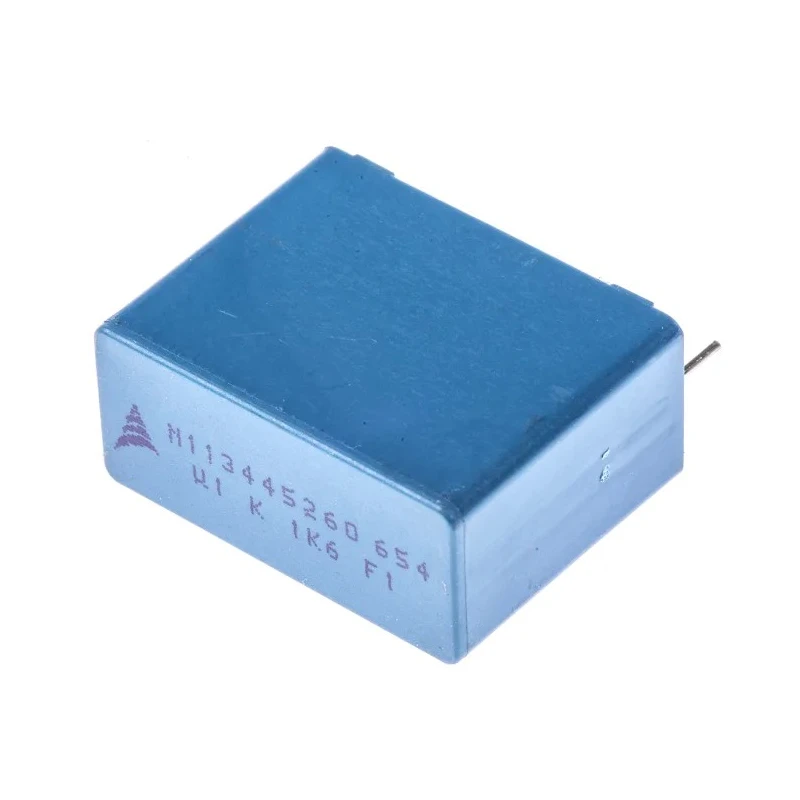

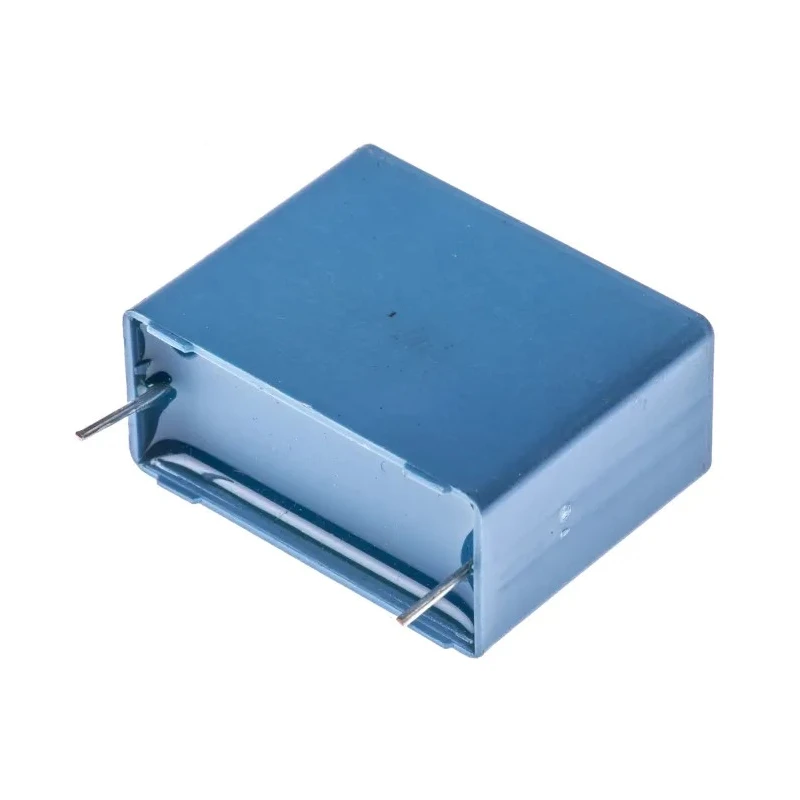

TDK B32654 Film Capacitor, 100 nF Capacitance, 500V AC Rated Voltage, 1.6 kV DC Rated Voltage, Through Hole B32654A1104K000

The TDK B32654A1104K000 film capacitor offers a robust 100 nF capacitance suited for various high voltage electronic applications. It is rated for an AC voltage of 500V and DC voltage up to 1.6 kV, making it ideal for demanding industrial and automotive environments.

This capacitor employs wound capacitor technology with an internal series connection, enhancing voltage resilience beyond 1250 Vdc. The plastic case is UL 94 V-0 flame retardant rated and sealed with epoxy resin, ensuring safety and durability during operation. Its through-hole mounting style features a 2-pin configuration with a lead pitch of 27.5 mm and a lead diameter of 0.8 mm, facilitating secure and precise PCB placement.

Measuring 31.5 mm in length, 14 mm in width, and 24.5 mm in height, this compact capacitor fits well within space-constrained designs. It tolerates a maximum operating temperature of 100°C, allowing reliable operation in industrial and automotive temperature conditions.

The component meets the rigorous automotive standard AEC-Q200 Rev D, ensuring suitability for automotive electronic systems. Its high pulse strength and contact reliability enhance electronic performance and lifespan.

Common applications include TV S-correction, TV flyback circuits, and electronic ballast circuits for lighting systems, providing excellent electrical stability and durability. Rated AC voltage of 500V and DC voltage rating of 1.6 kV for high voltage applications.

Wound capacitor construction with internal series connection ensures durability and reliability. Plastic case with UL 94 V-0 flame retardant rating and epoxy resin seal for safety and protection. Lead pitch of 27.5mm and pin diameter of 0.8mm for easy PCB mounting.

Compact dimensions: Length 31.5mm, Width 14mm, Height 24.5mm suitable for compact assemblies. Maximum operating temperature of 100°C enabling stable operation in demanding environments. Meets automotive standard AEC-Q200 Rev D for quality and reliability in automotive applications.

Typical use includes TV S-correction, TV flyback circuits, and electronic ballast circuits. High pulse strength and contact reliability for enhanced performance. Explore our Electronics & Electricals category for more Film Capacitors, components, and electronic solutions optimized for your projects and industrial needs at EnvMart.
