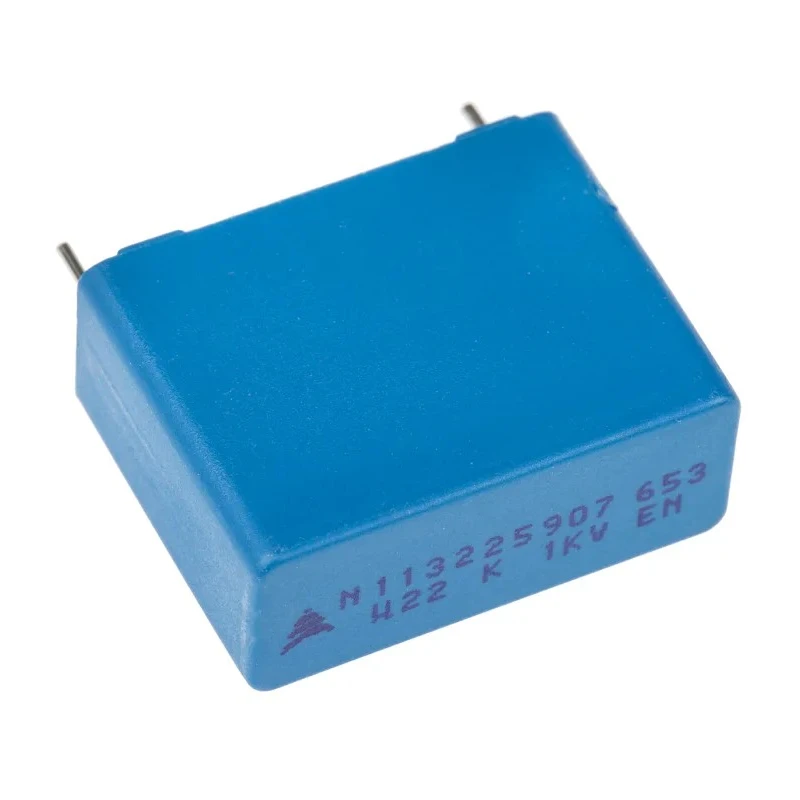

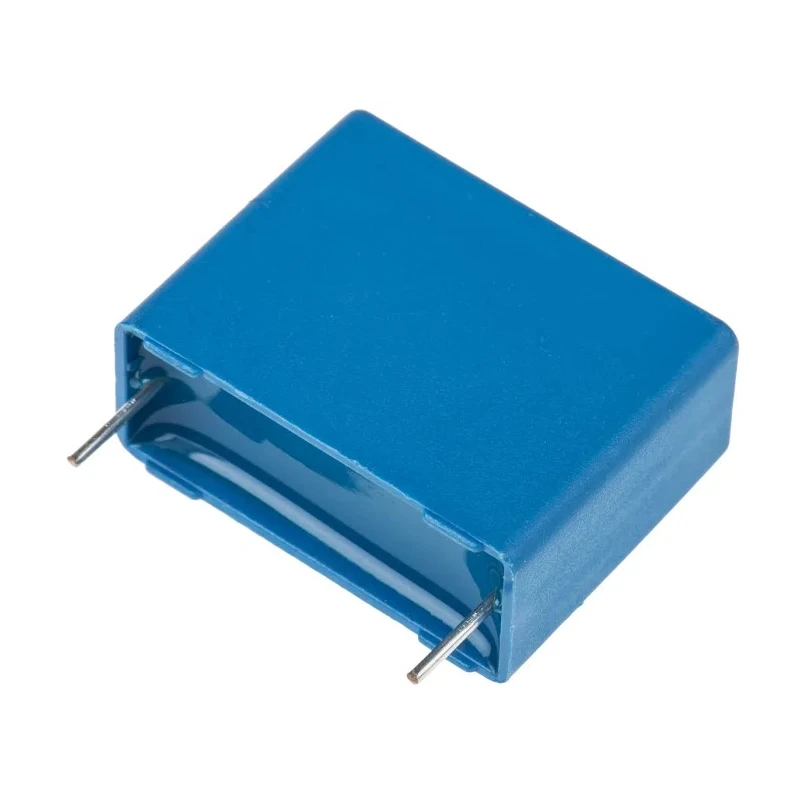

TDK Film Capacitor Through Hole Mount 220 nF Capacitance 250V AC 1 kV DC Rated Voltage Model B32653A0224K000

TDK B32653A0224K000 is a high-quality film capacitor designed for reliable performance in industrial and electronic applications. This through hole mount capacitor offers a capacitance of 220 nF and supports an AC voltage rating of 250V as well as a DC voltage rating of 1 kV, making it suitable for circuits requiring stable and high-voltage capacitance.

Manufactured using wound capacitor technology with internal series connection, this product delivers high pulse strength and durability. The capacitor is housed in a flame retardant plastic case compliant with UL 94 V-0 standards, sealed with epoxy resin for enhanced safety and environmental protection.

Its compact size with dimensions approximately 26.5 mm length, 20.5 mm height, and 11 mm width allows for space-efficient PCB layouts. The 2-pin configuration with a lead pitch of 22.5 mm and lead diameter of 0.8 mm enables secure through hole mounting on printed circuit boards.

Compliant with automotive standard AEC-Q200 Rev D, this capacitor is designed for high contact reliability, making it suitable for use in automotive electronics and demanding industrial environments. Typical applications include TV S-correction circuits, TV flyback transformers, and electronic ballast circuits that require stable filtering and voltage regulation.

Constructed with wound capacitor technology ensuring long-lasting performance. Epoxy resin sealed in a UL 94 V-0 plastic case ensuring flame retardancy and safety. High pulse strength and contact reliability for stable operation.

Rated for 250V AC and 1 kV DC voltage with a capacitance of 220 nF. Lead pitch 22.5 mm with 2 pins and a maximum operating temperature of 100°C. Suitable for industrial, automotive, consumer electronics, and HVAC applications.

Compact design facilitates easy mounting and integration into circuitry.

This TDK Film Capacitor offers reliable performance in electronic component applications and is readily available for immediate industrial use. It is engineered to maintain functionality under thermal stress and high-voltage conditions, making it a preferred choice for electronics manufacturers and maintenance professionals.
