Molex Patch WiFi Antenna with UFL/IPEX MHF Connector Bluetooth (BLE) WiFi 5.8–5.9GHz Gain 5.5dBi Cable Length 211996-0100

Free Delivery in India | Lowest Global Shipping Charges

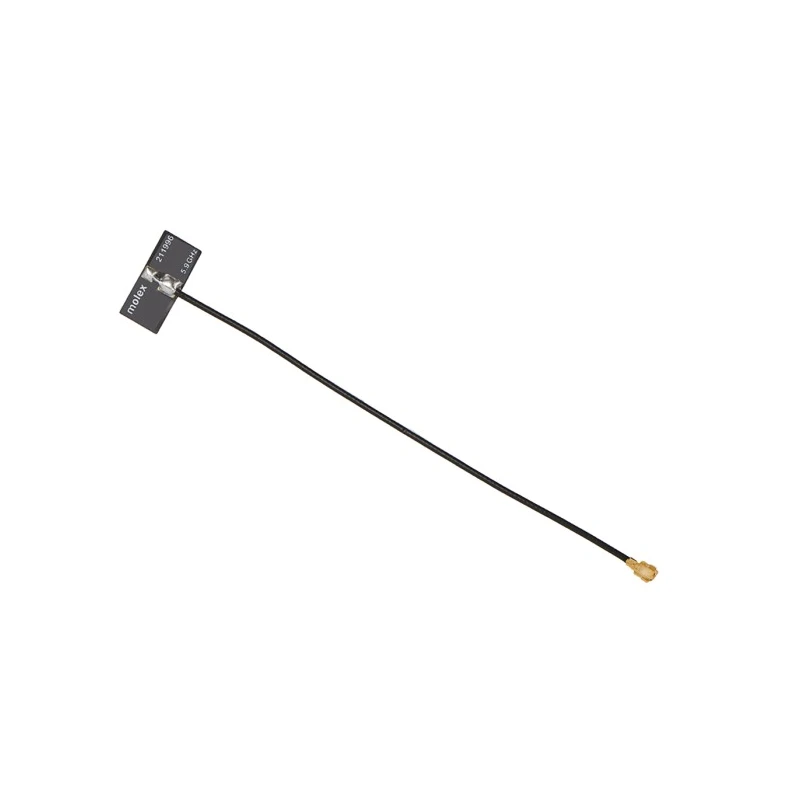

Molex Patch WiFi Antenna with UFL/IPEX MHF Connector Bluetooth (BLE) WiFi 5.8 - 5.9GHz Gain 5.5dBi Cable Length 211996-0100

Name: Molex Patch WiFi Antenna with UFL/IPEX MHF Connector Bluetooth (BLE) WiFi 5.8 - 5.9GHz Gain 5.5dBi Cable Length 211996-0100
Brand: Molex
SKU: 158828



Category WiFi Antenna Brand Molex Condition New

Specifications

Country of Origin	China
Brand	Molex
Cable Length	100mm
Connector Type	UFL/IPEX MHF
Series	211996
Gain	5.5dBi
Maximum Frequency	5.9GHz
Minimum Frequency	5.8GHz
RF Protocols	Bluetooth (BLE), WiFi
Antenna Physical Form	Patch
Antenna Mount Type	Adhesive
Directivity	Omni-Directional

Key Features

The antenna uses a patch physical form with adhesive mounting for versatility.
It features a UFL/IPEX MHF connector type with a 100mm cable length for flexible device integration.
Gain of 5.5dBi ensures strong signal reception and transmission.
Omni-directional directivity supports balanced signal coverage.
The antenna is designed with a compact, peel-and-stick format for easy mounting on non-metal surfaces.
Includes a micro-coaxial cable option enhancing connectivity design flexibility.
Ground-plane independent dual-band design reduces engineering complexity and cost.
Suitable for industrial, commercial, and consumer electronic applications.

Product Description

Molex 211996-0100 Patch WiFi Antenna with UFL/IPEX MHF Connector is designed for high-performance Bluetooth (BLE) and WiFi communications in the 5.8 to 5.9GHz frequency spectrum. This antenna features a patch physical form factor with an easy peel-and-stick adhesive mount enabling rapid installation on non-metal surfaces within device chassis.

The UFL/IPEX MHF connector coupled with a 100mm micro-coaxial cable provides flexible integration options tailored for various PCB layouts. Its gain of 5.5dBi and omni-directional directivity facilitate broad signal coverage, making it ideal for wireless connectivity in industrial, laboratory, HVAC, manufacturing, and commercial electronic equipment.

The antenna incorporates a ground-plane independent dual-band balanced design, which minimizes the need for additional PCB ground engineering, lowering development costs and speeding product time-to-market. Its poly-flexible top side and double-sided adhesive backing support secure mounting on internal walls of device housings. For rugged applications, an optional rigid PCB antenna variant with screw-nut mounting offers enhanced mechanical stability.

Additional features include multiple micro-coaxial cable length options (50, 100, 150, 200, 250, 300mm) to extend connectivity as per design requirements. The antenna's compact dimensions deliver space savings crucial for modern device miniaturization efforts.

The antenna provides Bluetooth (BLE) and WiFi RF protocols supporting reliable wireless network connections. UFL/IPEX MHF connector ensures secure radio device attachment. Gain of 5.5dBi for enhanced signal performance in demanding environments.

Omni-directional radiation pattern for consistent signal dispersion. Ground-plane independent design reduces PCB layout constraints. Micro-coaxial cable customization enables adaptable device design. Durable peel-and-stick type enables quick assembly in production lines.

This antenna is manufactured in China and is intended for new product applications requiring high reliability and flexibility in WiFi and Bluetooth wireless system designs. It fits typical usage scenarios in consumer electronics, industrial IoT devices, and embedded wireless modules. For more specialized industrial antennas browse related products on EnvMart.
