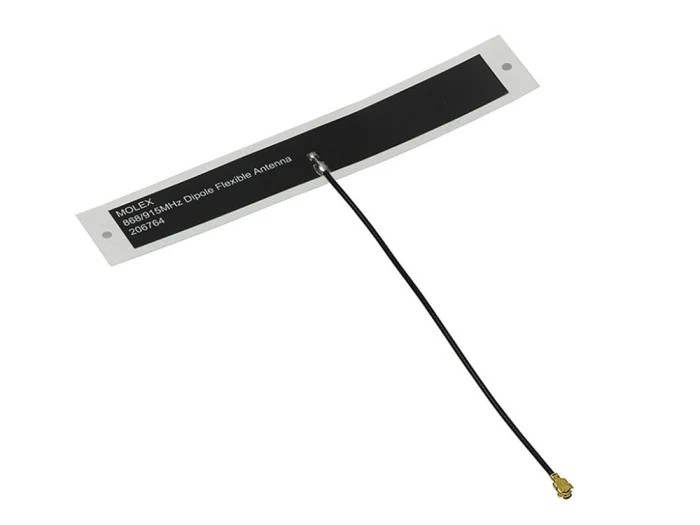

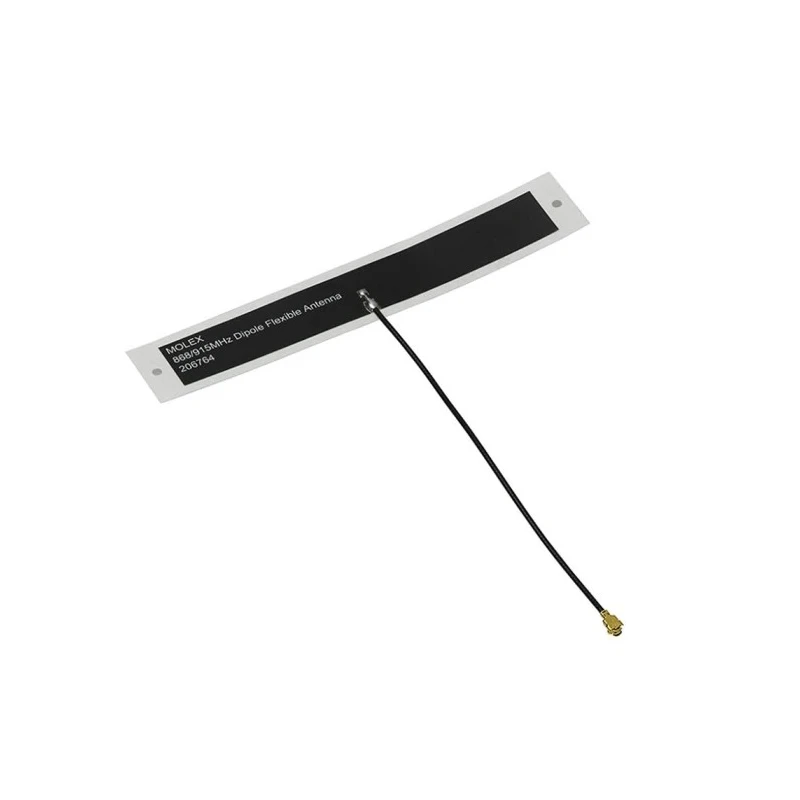

Molex Patch WiFi Antenna, ISM Band, UFL/IPEX MHF Connector, 868 - 915MHz, 1.2dBi, Adhesive Mount, Internal Dipole 206764-0100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Cable Length | 100mm |
| Connector Type | UFL/IPEX MHF |
| Series | 206764 |
| Gain | 1.2dBi |
| Maximum Frequency | 915MHz |
| Minimum Frequency | 868MHz |
| Internal/External | Internal |
| RF Protocols | ISM Band |
| Antenna Physical Form | Patch |
| Antenna Mount Type | Adhesive |
| Directivity | Omni-Directional |
| Antenna Internal Construction | Dipole |
| Number of Bands | 2 |
Key Features
- Internal patch antenna optimized for 868 - 915MHz ISM band applications.
- Gain of 1.2dBi enhances signal coverage and performance.
- Adhesive mounting simplifies installation in space-restricted environments.
- 100mm cable length allows flexible connectivity with UFL/IPEX MHF interface.
- Dipole construction ensures reliability for wireless systems.
- Compatible with protocols including LoRa, Zigbee, SigFox, and Z-Wave.
- Omnidirectional radiation pattern for uniform coverage.
- Compact form ideal for smart home and industrial sensor networks.
Product Description
Molex 206764-0100 is a highly engineered patch WiFi antenna designed for efficient wireless connectivity in ISM band applications. Engineered to operate between 868MHz and 915MHz, this antenna is suitable for internal installations in devices requiring low gain, robust communication. Its UFL/IPEX MHF connector offers secure, versatile interfacing and the adhesive mount makes for easy, tool-free placement in tight spaces.
The antenna delivers a 1.2dBi gain, supporting reliable omnidirectional coverage for diverse wireless protocols such as LoRa, Zigbee, SigFox, and Z-Wave. Its compact construction and 100mm integrated cable allow seamless integration within consumer electronics, industrial sensor nodes, and smart home automation systems.
Designed as a dipole, the 206764-0100 features durable internal construction to maintain stable performance in environments where conventional external antennas may not fit. The adhesive mounting streamlines installation, reducing the need for additional hardware and ensuring secure operation in confined areas.
Molex’s patch antenna is ideal for wireless sensor networks, automated electrical systems, and intelligent building management solutions requiring dependable communication in the ISM frequency spectrum. Applications also include industrial IoT, remote monitoring, and space-constrained embedded designs.
Internal patch antenna optimized for 868 - 915MHz ISM band applications. Gain of 1.2dBi enhances signal coverage and performance. Adhesive mounting simplifies installation in space-restricted environments. 100mm cable length allows flexible connectivity with UFL/IPEX MHF interface.
Dipole construction ensures reliability for wireless systems. Compatible with protocols including LoRa, Zigbee, SigFox, and Z-Wave. Omnidirectional radiation pattern for uniform coverage. Compact form ideal for smart home and industrial sensor networks.
This antenna is ideal for electronic engineers, designers, and OEMs working on wireless communication systems and IoT devices. Explore more WiFi Antennas and solutions from Molex and other top brands in Electronics & Electricals at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates between 868MHz and 915MHz, making it suitable for ISM band applications.
It has a gain of 1.2dBi, which enhances signal coverage and performance.
The antenna uses an adhesive mount, simplifying installation in space-restricted environments.
The antenna has a cable length of 100mm, providing flexible connectivity options.
It features an omnidirectional radiation pattern, ensuring uniform coverage.
This model is designed as a patch antenna, optimized for internal installations.
It is compatible with various protocols including LoRa, Zigbee, SigFox, and Z-Wave.
It has a dipole internal construction, which contributes to its reliable performance.
This antenna is ideal for wireless sensor networks, smart home automation systems, and industrial IoT applications.
The country of origin for this model is China.
