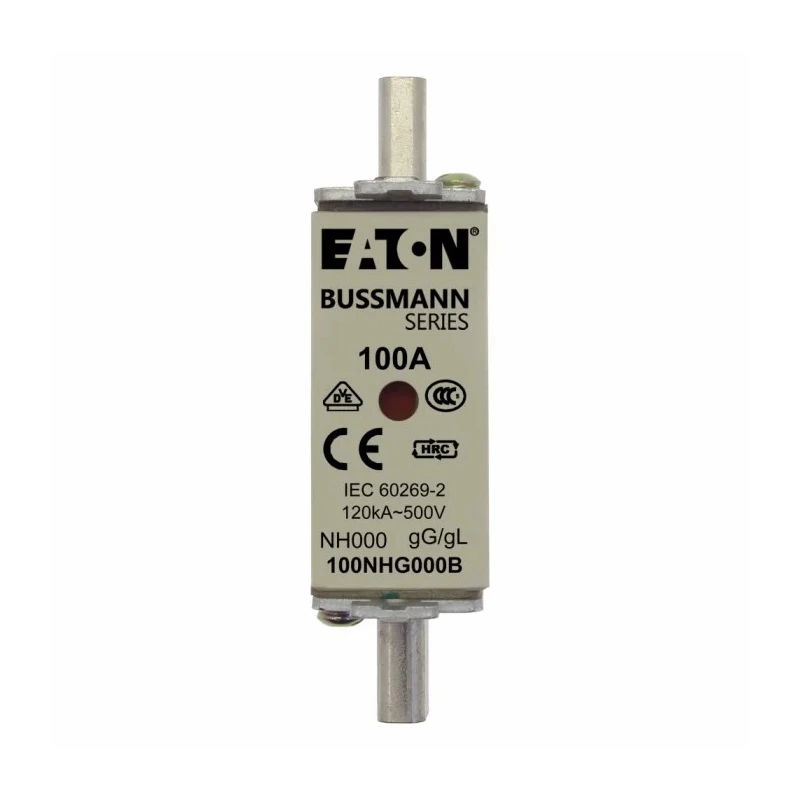

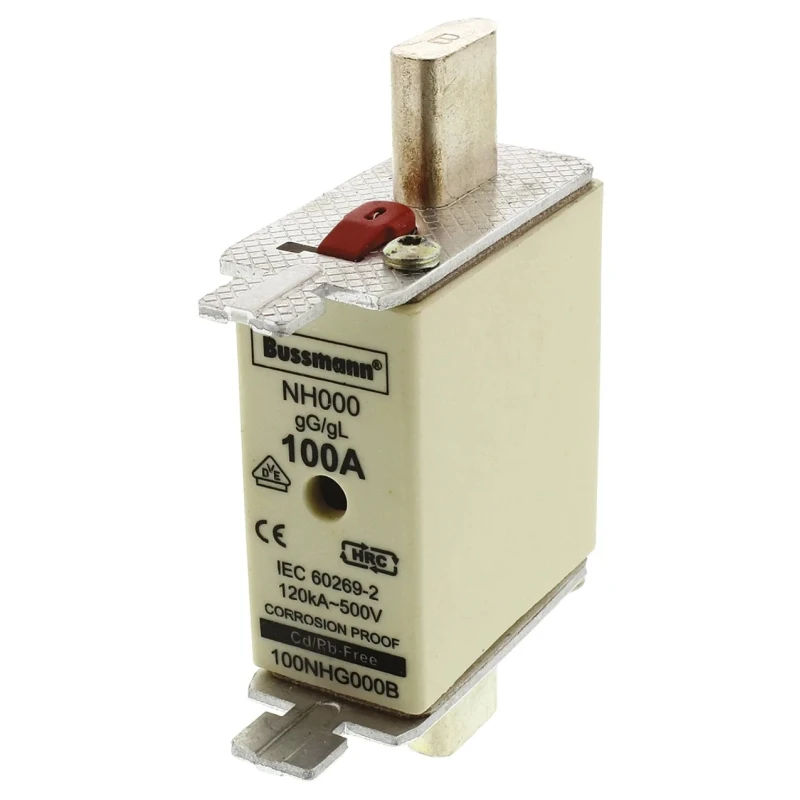

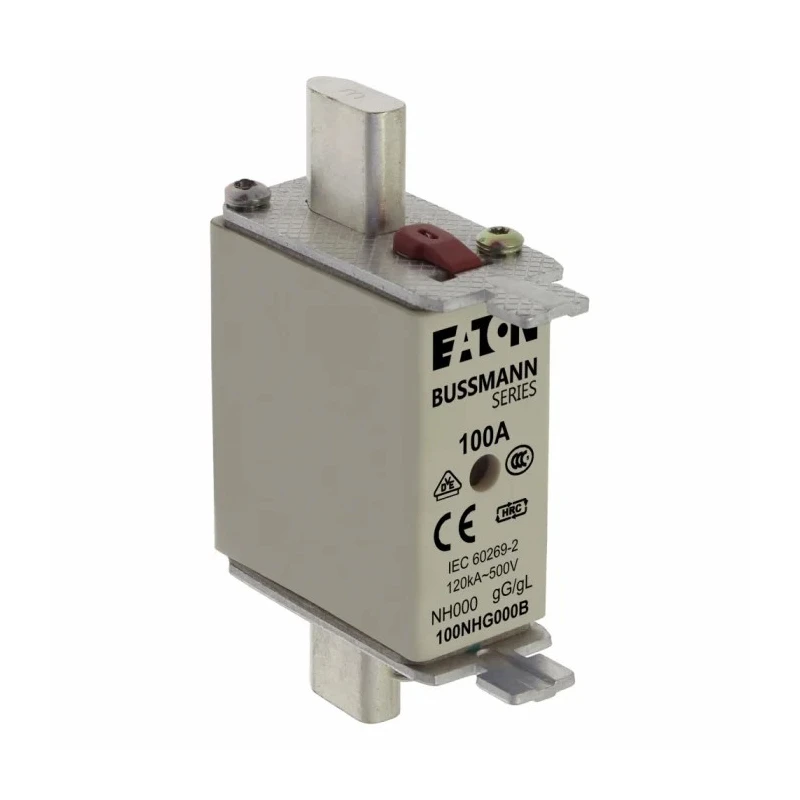

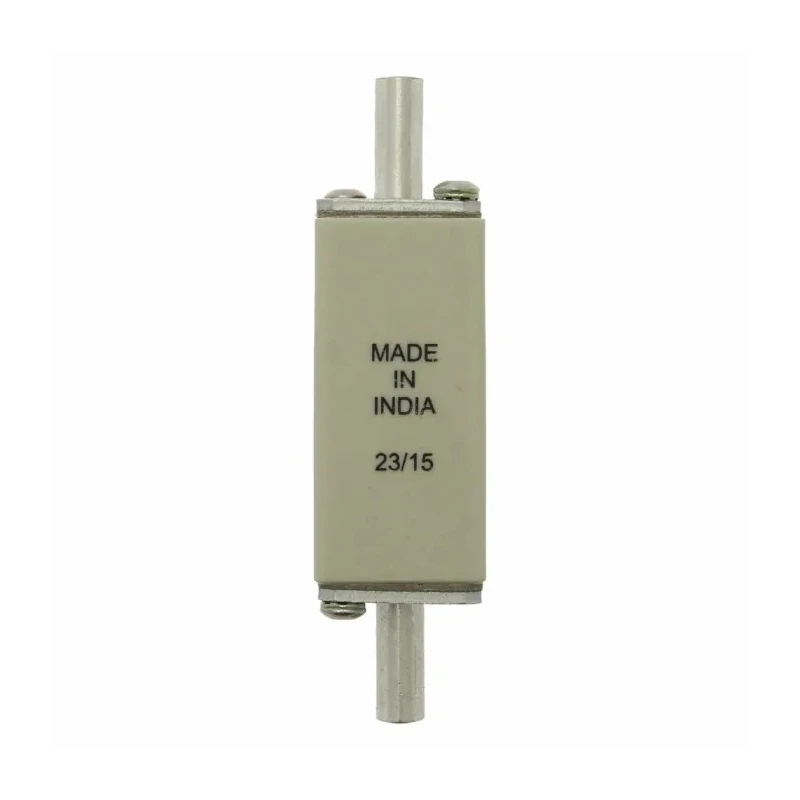

Eaton 100A Tag Fuse NH000 500V AC High Rupture Capacity Dual Indication NH000

Eaton NH000 100NHG000B Tag Fuse is a high-quality industrial fuse with a current rating of 100A and voltage rating of 500V AC, designed to protect electrical circuits from short circuits and overcurrents. Featuring a durable ceramic casing, it ensures thermal resistance and safety under high temperature conditions.

The fuse employs centered blade tags at each end, enabling straightforward mounting on open fuse bases and DIN rail holders. Its compact size of 78.5mm overall length, with 41mm height and 21mm width, supports space-saving installations in industrial control panels and equipment.

This fuse boasts a high rupture capacity, allowing it to reliably interrupt fault currents and withstand electrical surges. The dual indication characteristic aids maintenance personnel by visually signaling fuse status, allowing for quick identification and replacement without the need for complex testing.

Compliance with international standards including DIN 43620, IEC 60269, and VDE 0636 assures users of its performance and safety credentials. The fuse’s metal-plated copper terminals ensure reliable electrical connections and reduce contact resistance.

Weighing only 130 grams, this lightweight fuse simplifies handling and installation processes. It is suited for various industrial and electrical applications including microswitch protection, motor control circuits, and electrical substations, ensuring safe and efficient operation.

Designed as a one-time-use component, it requires replacement after a fault occurrence. Eaton, formerly known as Bussmann, provides a reliable range of NH fuses for industrial use, with this NH000 100A model being a key product for protecting low-voltage AC circuits.

The fuse features a ceramic casing providing thermal resistance to prevent overheating. It offers compact dimensions of 41mm height, 54mm length, and 21mm width for space efficiency. Equipped with a centered mounting blade tag on each end for easy installation and removal.

Its high rupture capacity allows it to withstand current spikes ensuring consistent performance. Dual indication status feature enables quick fault detection and easy replacement. The fuse complies with DIN 43620, IEC 60269, and VDE 0636 standards.

Lightweight construction at approximately 130 grams for ease of handling. Ideal for use in low-voltage industrial applications such as microswitches, electrical substations, and motors. Suitable for DIN rail mounting, facilitating time-efficient installation.
