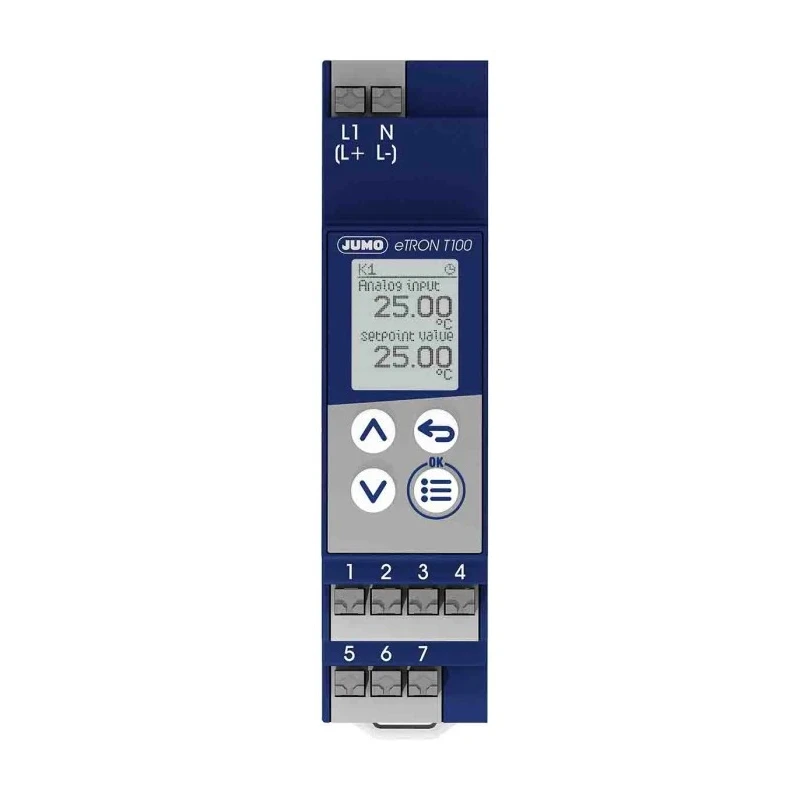

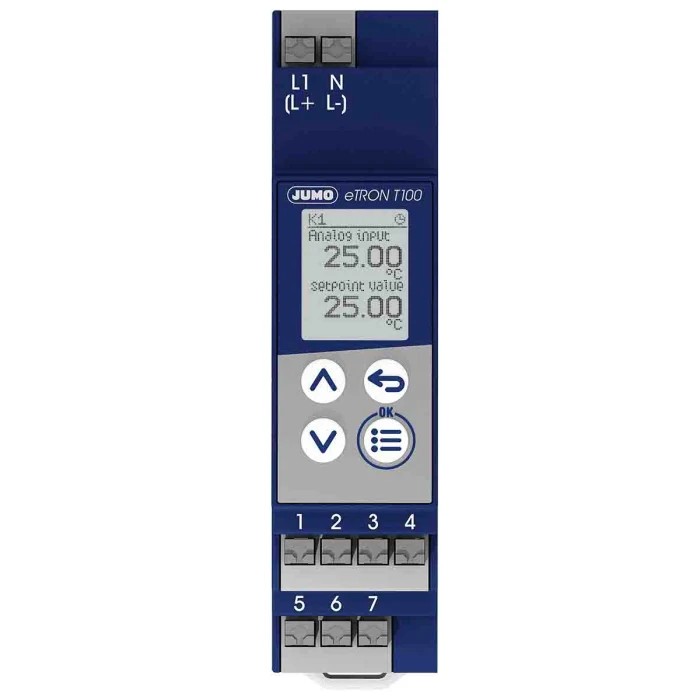

Jumo eTRON T100 DIN Rail On-Off Temperature Controller 1 Input 1 Output Relay 230V 701052/8-02-02-00/000

Jumo 701052/8-02-02-00/000 On-Off Temperature Controller is a versatile industrial device designed for precise temperature regulation. Operating at 230V, this controller accepts inputs from J Type thermocouples, resistance thermometers, and current signals (0(4) to 20 mA), allowing extensive application in process control environments.

The eTRON T100 series features a clear, backlit LCD dot matrix display (64 x 80 pixels) that simultaneously shows the actual and setpoint values along with relay and digital output states. Multilingual support includes German, English, French, and Spanish, enabling ease of operation across diverse industrial settings. User interaction is facilitated via four keys on the front panel and can be supplemented by a USB interface setup program, providing advanced configuration options including customer-specific linearization and a data logger function.

Equipped with a 10A changeover relay and an optional PhotoMOS relay for limit value monitoring, this controller offers flexible control capabilities. The integrated timer function facilitates timing control cycles, optimizing processes in heating or cooling applications. The device mounts conveniently on standard DIN rails and measures 90mm in width, 22.5mm in length, with a panel depth of 62mm, making it suitable for compact control panels.

Designed with industrial robustness in mind, the controller supports operating temperatures from -10°C to 70°C and has an IP20 protection rating. Connection is made via screw-type PCB terminals with push-in technology, ensuring secure electrical contact suitable for industrial automation and control gear environments.

This product is made in Germany, maintaining high manufacturing standards. It is ideal for use in industrial automation, laboratory settings, process control, HVAC systems, and manufacturing plants where accurate temperature control is critical.

Compatible with J Type thermocouple inputs for accurate temperature sensing. Features a 10A relay with changeover contact for reliable switching. Equipped with a backlit 64 x 80 pixel LCD display supporting multiple languages.

Includes timer function to limit or start heating or cooling control as required. Operated via 4 front panel keys and configurable using USB setup program. Provides data logger and service hour counter to monitor device usage.

Advanced features include limit value monitoring and customer-specific linearization. Compact DIN rail mounting with dimensions 90mm (W) x 22.5mm (L) x 62mm (Depth). Suitable for a wide temperature range from -10°C to 70°C.

Constructed to IP20 standard ensuring protection suitable for industrial environments. Explore more Temperature Controllers and industrial automation solutions in the Electronics & Electricals category of EnvMart for efficient process management and control.
