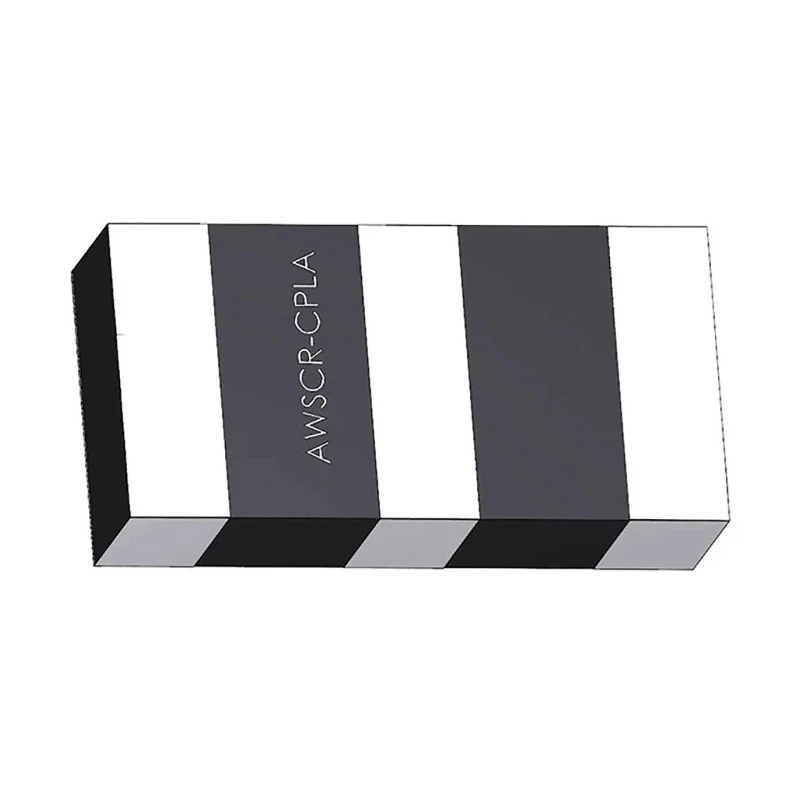

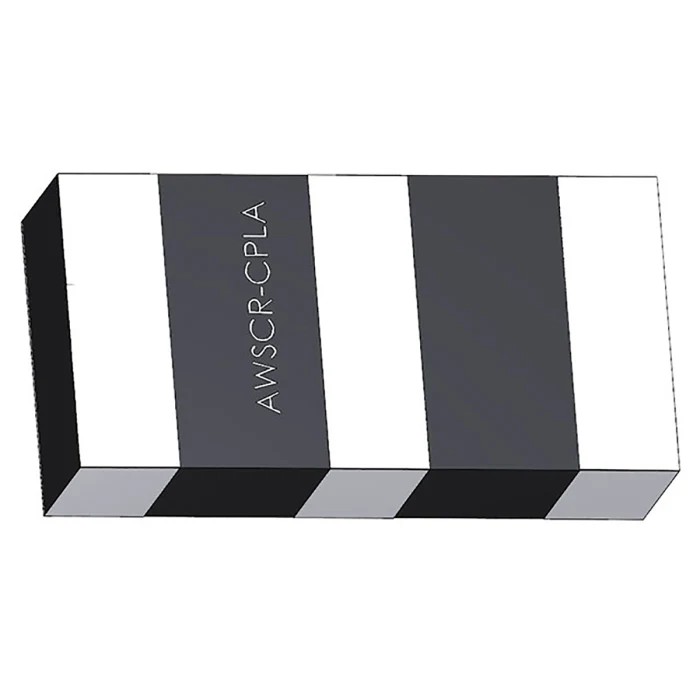

Abracon Ceramic Resonator 8 MHz 33 pF 3-Pin Surface Mount Tape & Reel AWSCR-8.00CPLA-C33-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.5mm |
| Length | 6mm |
| Model | AWSCR-8.00CPLA-C33-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 33pF |
| Resonance Frequency | 8MHz |
| Resonance Resistance | 30Ω |
Key Features
- Resonates at 8 MHz frequency providing precise oscillation.
- Load capacitance of 33 pF suitable for typical oscillator circuits.
- Surface mount type with solder termination for easy PCB assembly.
- Packaged in tape and reel format facilitating automated placement.
- Operates reliably between -40°C and 85°C temperature range.
- Extends frequency stability within ±0.3% tolerance for consistent performance.
- Complies with RoHS standards ensuring environmentally friendly manufacturing.
- Low resonance resistance of 30Ω minimizes signal loss.
Product Description
Abracon AWSCR-8.00CPLA-C33-T4 Ceramic Resonator is engineered to deliver stable frequency oscillation at 8 MHz with a load capacitance of 33 pF. It features a surface mount design with solder termination and is supplied in tape and reel packaging for streamlined automated PCB assembly. Its compact size with dimensions of 6 mm length, 3 mm width, and 1.5 mm height allows integration into compact electronic devices.
This resonator offers a frequency tolerance of ±0.5% and frequency stability within ±0.3%, ensuring reliable performance in industrial electronic applications such as metering systems, remote controls, industrial control, and microprocessor timing circuits. The device operates across a wide temperature range from -40°C to 85°C, suitable for demanding environmental conditions.
The resonator boasts low resonance resistance (30Ω) to minimize power loss and improve signal integrity. It is manufactured to RoHS standards, supporting environmentally responsible production. Packaged as a tape and reel with 3 pins, this component is optimized for automated pick-and-place processes in electronics manufacturing.
Resonates at 8 MHz frequency providing precise oscillation. Load capacitance of 33 pF suitable for typical oscillator circuits. Surface mount type with solder termination for easy PCB assembly. Packaged in tape and reel format facilitating automated placement.
Operates reliably between -40°C and 85°C temperature range. Extends frequency stability within ±0.3% tolerance for consistent performance. Compact dimensions: Length 6mm, Width 3mm, Height 1.5mm. Complies with RoHS standards ensuring environmentally friendly manufacturing.
Low resonance resistance of 30Ω minimizes signal loss. Industrial applications in metering, control systems, and microprocessor circuits.
This Ceramic Resonator is ideal for industrial electronics, microprocessor timing, metering equipment, and control system applications requiring reliable frequency control. Its compliance with industry standards and robust specifications make it a dependable component for manufacturing and design engineers.
Explore more components in the Electronics & Electricals category at EnvMart to find complementary parts and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this ceramic resonator is 8 MHz.
This model has a load capacitance of 33 pF, making it suitable for typical oscillator circuits.
It operates reliably between -40°C and 85°C, which accommodates various environmental conditions.
The dimensions of this resonator are 6 mm in length, 3 mm in width, and 1.5 mm in height.
It is packaged in tape and reel format, facilitating automated placement during PCB assembly.
This model features solder termination, which is suitable for surface mount applications.
The resonance resistance is 30Ω, which helps minimize signal loss.
It complies with RoHS standards, ensuring environmentally friendly manufacturing practices.
This resonator is suitable for applications in metering systems, remote controls, industrial control, and microprocessor timing circuits.
This model belongs to the AWSCR-CPLA series, which includes various ceramic resonators.
It offers frequency stability within ±0.3%, ensuring consistent performance.
This resonator has 3 pins, designed for surface mount applications.
