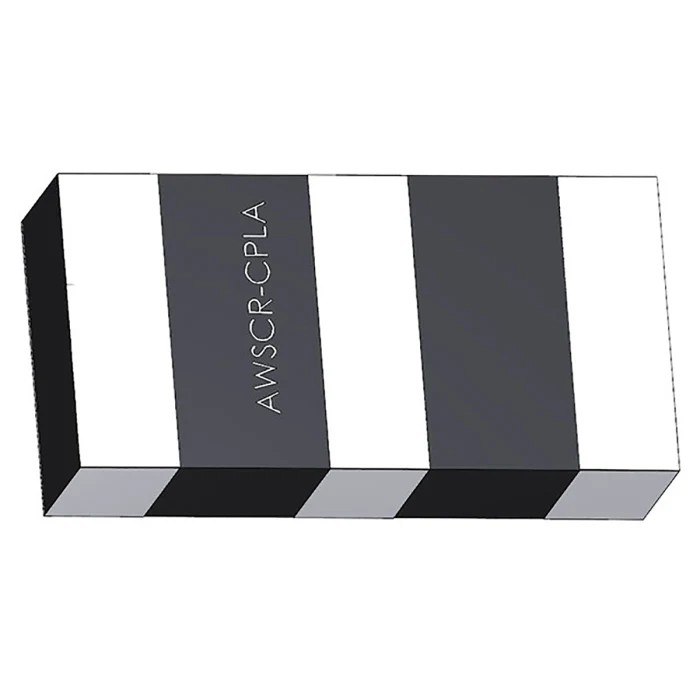

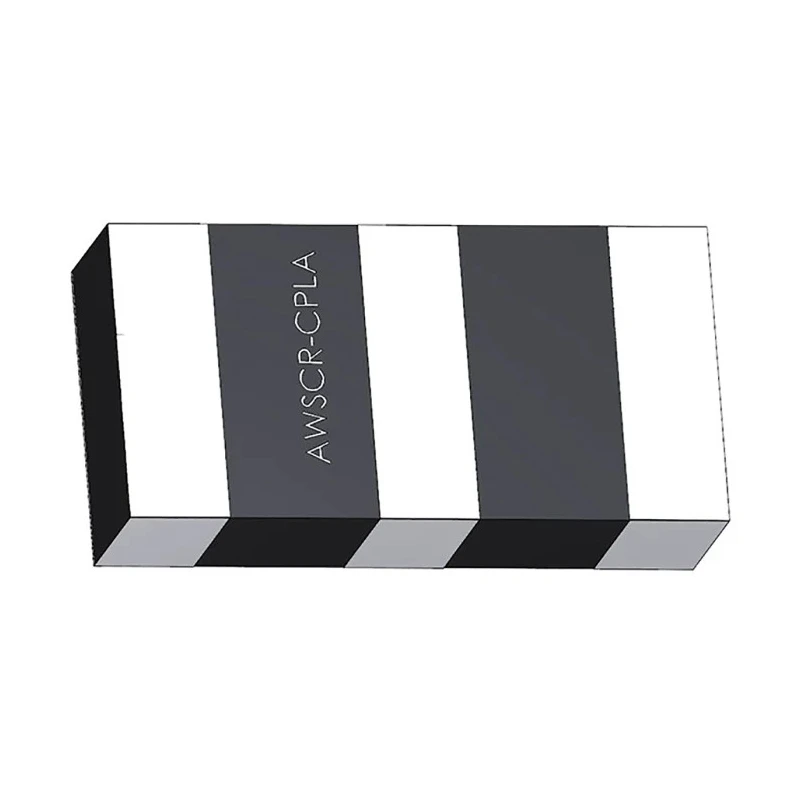

Abracon Ceramic Resonator 2 MHz 15 pF 3-Pin Surface Mount Tape & Reel 6 mm x 3 mm x 1.8 mm AWSCR-2.00CPLA-C15-T4

Abracon AWSCR-2.00CPLA-C15-T4 ceramic resonator is a surface mount electronic component designed for frequency stabilization and timing control in electronic circuits. It operates at a resonance frequency of 2 MHz with a load capacitance of 15 pF. Packaged on a 3-pin tape and reel format, this device is ideal for automated manufacturing lines and compact PCB layouts.

This resonator features a 3-pin surface mount package with typical dimensions of 6 mm length, 3 mm width, and 1.8 mm height, enabling integration into space-sensitive designs. Operating reliably across a temperature range from -40°C to 85°C, it suits a wide range of environments including industrial, metering, remote control, microprocessor applications, and electric appliances.

With a resonance resistance of 100 Ω and frequency tolerance of ±0.5%, it provides stable frequency output. The frequency ageing specification of ±0.1% and frequency stability of ±0.3% further ensures consistent long-term operation. Additionally, its solder termination type and RoHS compliance align with industry standards for environmentally safe electronics manufacturing.

The product is made in China and part of the AWSCR-CPLA series, representing an industry standard footprint with low resonance impedance and built-in capacitance options. Its tape & reel packaging facilitates streamlined automated assembly processes.

Application domains for this ceramic resonator include metering systems, remote control devices, microprocessor-based circuits, industrial control systems, and various electric appliances requiring stable oscillator frequency components.

Choose Abracon ceramic resonators for dependable frequency control solutions in your advanced electronic equipment manufacturing, ensuring industry-grade performance and reliable operation.

Explore more electronic components and Ceramic Resonators on EnvMart to meet your industrial and laboratory needs efficiently. Resonance frequency of 2 MHz with ±0.5% frequency tolerance for precise timing applications. Tape & reel packaging ensures easy automated PCB assembly handling.

Surface mount device with a 3-pin configuration and solder termination. Operating temperature range from -40°C to 85°C for extended environmental use. Dimensions: 6 mm length, 3 mm width, and 1.8 mm height for compact PCB space requirements.

Low resonance resistance of 100 Ω for efficient signal integrity. Frequency ageing of ±0.1% and frequency stability of ±0.3% ensuring long-term reliability. RoHS compliant product with country of origin China, suitable for various industries.
