onsemi Zener Diode 180 V 5 W Through Hole 2-Pin DO-15 1N5386BG

Free Delivery in India | Lowest Global Shipping Charges

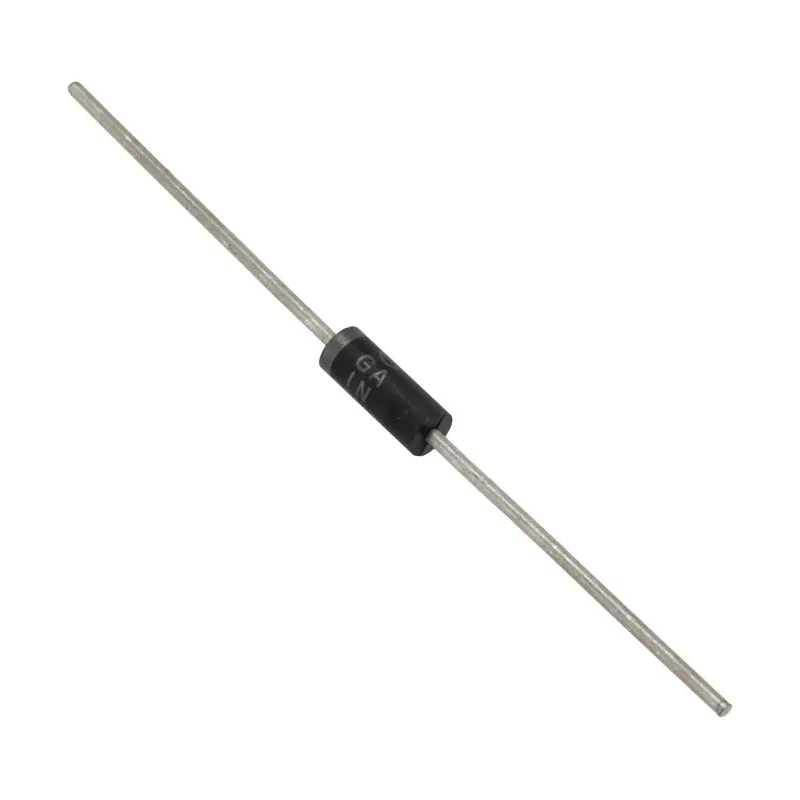

onsemi Zener Diode 180 V 5 W Through Hole 2-Pin DO-15 1N5386BG

Name: onsemi Zener Diode 180 V 5 W Through Hole 2-Pin DO-15 1N5386BG
Brand: onsemi
SKU: 157642
Price: 0.27 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5386BG
Mount Type	Through Hole
Series	1N53
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	180V
Zener Type	Voltage Regulator
Maximum Zener Impedance	430Ω

Key Features

This Zener diode has a single diode configuration.
It features a voltage regulator Zener type with 5% tolerance.
The maximum power dissipation is rated at 5 watts ensuring efficient voltage regulation.
The device has a maximum Zener impedance of 430 ohms and a test current of 5 mA.
It supports a maximum reverse leakage current of 500 nA for low leakage performance.
The package has 2 pins suitable for through-hole mounting applications.
Operating temperature ranges from -65°C to 200°C for reliable performance in harsh environments.
Compact dimensions with a height of 3.68 mm and length of 8.89 mm facilitate easy PCB integration.

Product Description

onsemi 1N5386BG Zener Diode is a high-quality discrete semiconductor device designed for voltage regulation applications within electronic circuits. It offers a nominal Zener voltage of 180 V and a maximum power dissipation of 5 W housed in a through hole 2-pin DO-15 package, making it ideal for industrial, electronics manufacturing, and power supply designs.

This Zener diode features a single diode configuration with a voltage regulator type Zener ensuring precise voltage control with a tolerance of ±5%. The device can operate reliably over a broad temperature range from -65°C up to 200°C, suitable for demanding industrial and laboratory environments.

With a test current of 5 mA and a maximum Zener impedance of 430 ohms, the diode offers stable performance under test conditions. The maximum reverse leakage current is limited to 500 nA, which minimizes leakage losses in sensitive electronics.

The compact DO-15 package with 2 pins supports through hole mount technology, facilitating straightforward assembly on printed circuit boards for various power electronics and control applications.

This component is part of the 1N53 series from onsemi, known for robust construction, long lifecycle, and consistent electrical characteristics, suitable for use in electric power regulation, automotive electronics, communication equipment, and industrial controllers.

This Zener diode has a single diode configuration. Voltage regulation within ±5% tolerance. Maximum power dissipation of 5 watts. Through hole mounting in a DO-15 package type. Operating temperature range from -65°C to 200°C.

Low maximum reverse leakage current of 500 nA. Compact size: 3.68 mm height, 8.89 mm length. Stable operation with a test current of 5 mA. Part of the 1N53 series for reliable performance. Find more onsemi semiconductor components and Zener Diodes in the Electronics & Electrical category on EnvMart for industrial and commercial applications.
