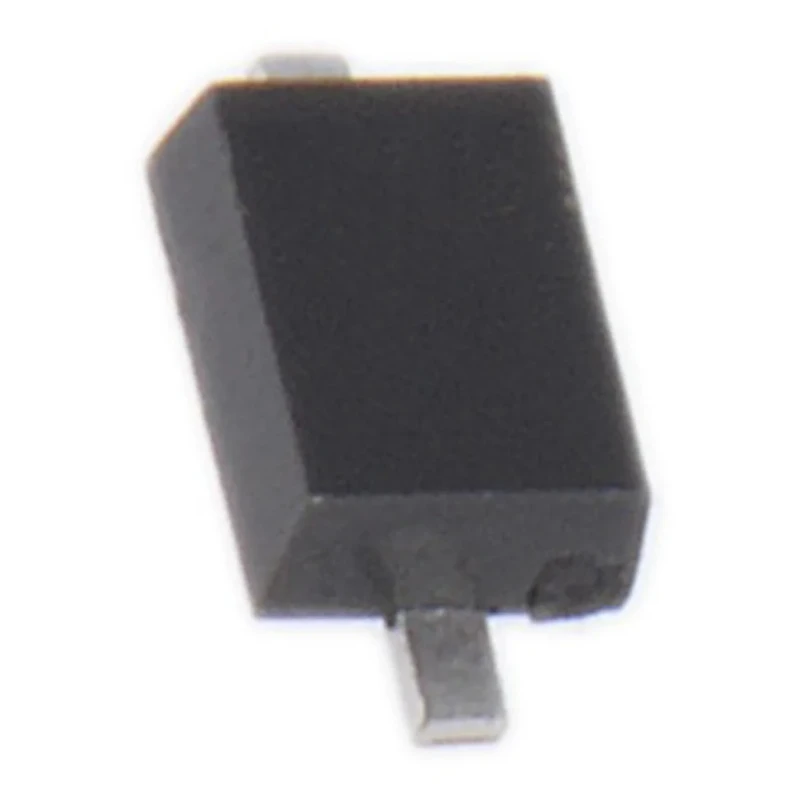

onsemi Zener Diode 18V 200mW 2% Tolerance Surface Mount 2-Pin SOD-323 MM3Z18VB

Name: onsemi Zener Diode 18V 200mW 2% Tolerance Surface Mount 2-Pin SOD-323 MM3Z18VB
Brand: onsemi
SKU: 101871
Price: 0.04 USD
Availability: InStock



Category Zener Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1mm
Length	2.7mm
Model	MM3Z18VB
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	200mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	45nA
Nominal Zener Voltage Vz	18V
Zener Type	Voltage Regulator
Maximum Zener Impedance	212Ω
MM3Z18VB	18.0V 200mW 2% Zener, SOD323F

Key Features

The diode has a nominal Zener voltage of 18 volts.
Maximum power dissipation rated at 200 milliwatts ensures efficient performance.
Surface mount type with a compact 2.7 mm length and 1 mm height package (SOD-323).
Features a maximum reverse leakage current of 45 nanoamperes for minimal losses.
Designed to operate between -65°C and 150°C for wide temperature resilience.
Test current is specified as 5 mA, optimizing voltage regulation operation.
Matte tin finish offers lead-free and RoHS-compliant packaging.

Product Description

The onsemi MM3Z18VB is a high quality Zener Diode designed for voltage regulation applications requiring an 18 volt nominal Zener voltage with a power dissipation capacity of 200 milliwatts. This device is packaged in a compact surface-mount SOD-323 package measuring 2.7 mm in length and 1 mm in height, making it suitable for space-constrained circuit boards.

Its ±2% voltage tolerance ensures reliable and accurate voltage clamping under varying electrical conditions. The diode features an extremely low maximum reverse leakage current of 45 nanoamperes at the test current of 5 mA, which supports high efficiency in power-sensitive applications.

Built for durability, the MM3Z18VB operates across a wide temperature range from -65°C to 150°C, suitable for use in industrial, automotive (non-automotive qualified), consumer electronics, and general-purpose electronic manufacturing environments.

The matte tin, lead-free finish complies with RoHS environmental directives, supporting sustainable manufacturing processes without hazardous substances.

This Zener diode’s attributes make it a versatile component in electronic circuit protection, voltage regulation modules, and power supply designs where stable reference voltage is critical.

The diode configuration is single element type optimized for voltage regulation. Its 2-pin configuration and surface mount design enable easy PCB assembly. Voltage regulator Zener type is specifically engineered for precise voltage maintenance.
