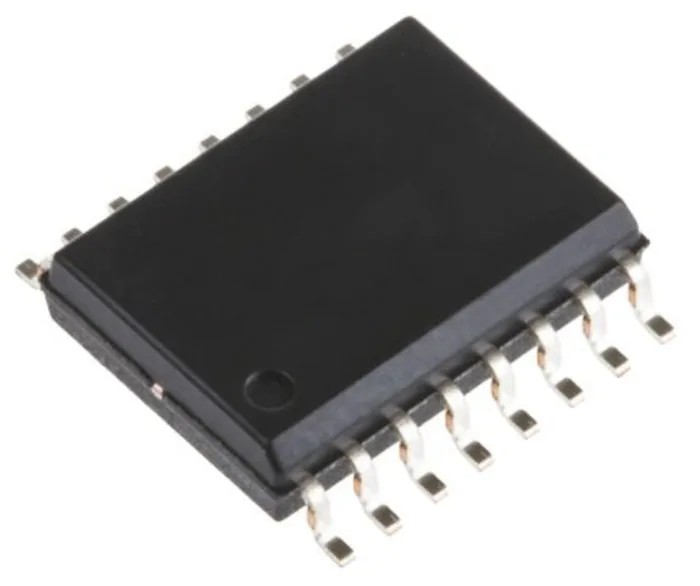

onsemi Shift Register VHC SOIC, 16-Pin, Surface Mount 2V-5.5V 74VHC595MX

onsemi 74VHC595MX Shift Register VHC SOIC, 16-Pin is a new surface mount semiconductor device designed as a high-speed shift register optimized for various digital electronic applications. Operating reliably with a supply voltage range of 2V minimum up to a maximum of 5.5V, this IC is ideal for logic signal processing and counter applications in industrial, commercial, and laboratory electronics.

This 16-pin SOIC package device measures 9.9 mm in length, 3.9 mm in width, and 1.75 mm in height, making it suitable for surface mount technology (SMT) assembly. It offers a typical propagation delay (tPD) of 5.4 nanoseconds at 5V supply voltage, enabling high-speed data handling.

The 74VHC595MX model features low power consumption with a maximum quiescent current (ICC) of only 4 microamperes at 25°C ambient temperature, contributing to energy-efficient circuit designs. It provides high noise immunity with input levels VNIH and VNIL at 28% of VCC minimum, thus ensuring robustness against electrical interference.

The device includes power-down protection on all inputs to prevent accidental operation during power interruptions. Additionally, it maintains low noise output voltage with a typical VOLP value of 0.9 volts.

The trigger type is positive edge-compatible, allowing integration with clocked logic circuits. Its pin and functional compatibility with the widely used 74HC595 series allows seamless replacement or upgrade in existing designs.

This IC is rated for operation up to 85°C, covering a broad temperature range suitable for industrial environments. The product has no specific automotive or other certifications and does not carry approvals beyond standard semiconductor quality controls.

High speed operation with typical 5.4 ns propagation delay. Low power dissipation enhances energy efficiency. High noise immunity ensures signal integrity. Power down protection on all inputs for safety. Low noise output voltage for clean signal output.

Compact SOIC 16-pin surface mount package. Operating temperature range up to 85°C for industrial use. Positive edge trigger suitable for clocked digital logic. Pin compatible with 74HC595 devices for design flexibility.

onsemi 74VHC595MX belongs to the family of Counter ICs widely used in electronics manufacturing, control systems, and embedded applications. It supports modern PCB layouts and contributes to durable and scalable electronic assemblies.
