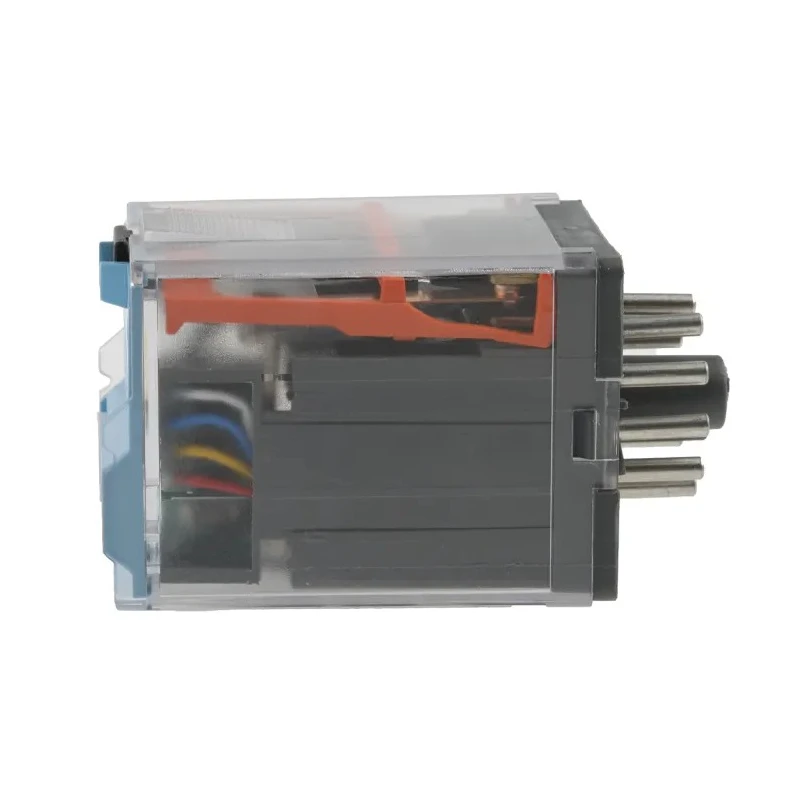

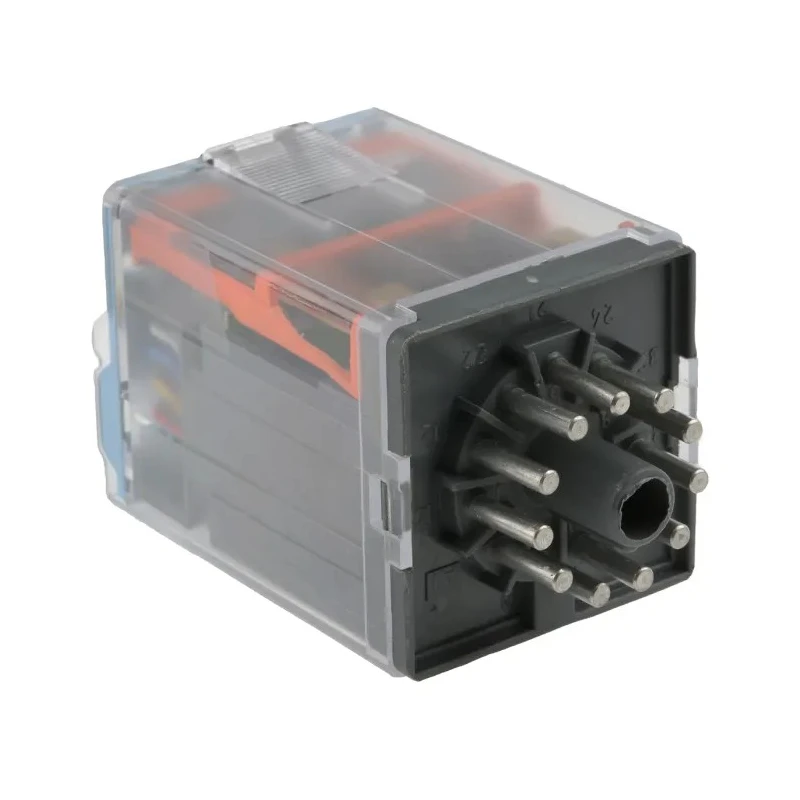

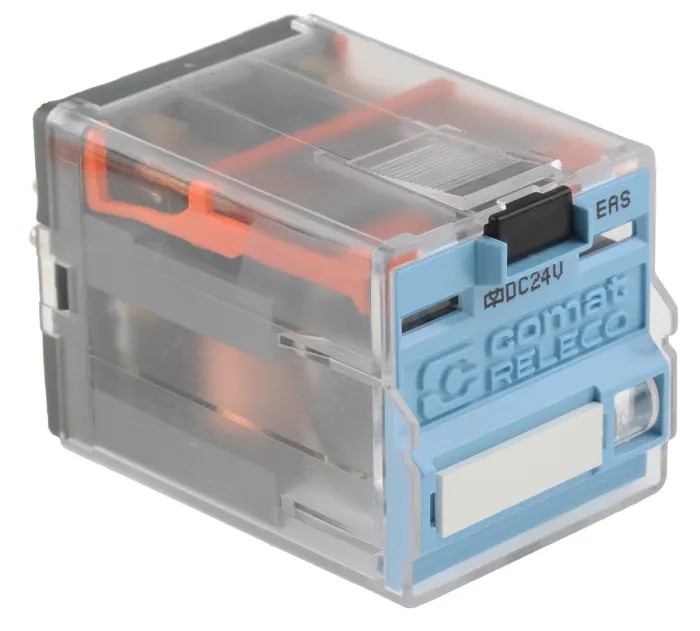

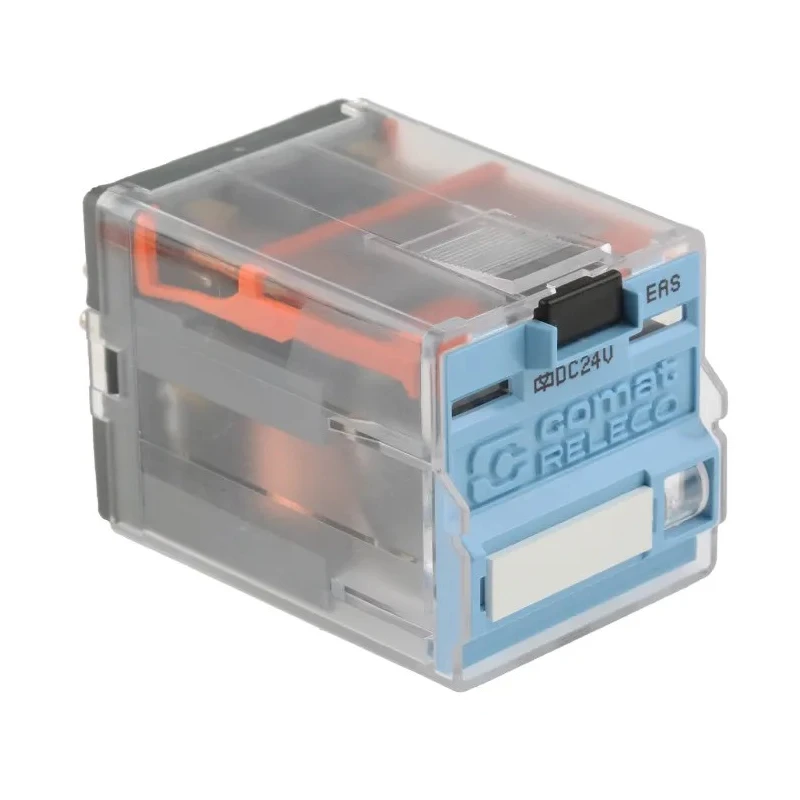

Releco Power Relay 24V DC Coil 10A Switching Current DPDT C3-R20 / DC 24 V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |
| Height | 66mm |
| Length | 35mm |
| Model | C3-R20 / DC 24 V |
| Width | 35mm |
| Contact Material | Silver Alloy |
| Series | C3-R20 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL, EN, IEC, RoHS |
| Coil Resistance | 63Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.5W |
Key Features
- The relay features a DPDT contact configuration for versatile switching applications.
- Equipped with a 63Ω coil resistance to maintain low power consumption.
- Operates safely within a temperature range of -40°C to 60°C.
- Has a compact design of 35mm length, 35mm width, and 66mm height for easy integration.
- Silver alloy contact material ensures durable and efficient conductivity.
- Mechanical flag indicator provides clear status visibility.
- Designed to meet standards including CSA, UL, EN, IEC, and RoHS for industrial compliance.
- Switching power is rated at 2.5kVA with switching AC voltage up to 250V AC.
Product Description
Releco C3-R20 / DC 24 V power relay is a DC coil powered, bi-stable latching relay featuring two changeover silver alloy contacts capable of switching currents up to 10A. This DPDT relay retains its switching state on power loss, making it ideal for industrial automation and control systems.
The relay's coil voltage is rated at 24V DC with a coil resistance of 63Ω, consuming 1.5W coil power. It supports a switching power of 2.5kVA and switching AC voltage of 250V AC. Mechanical flag indicators provide visual confirmation of contact status, and the solder terminal type enables robust electrical connections.
Its compact dimensions (35mm length, 35mm width, 66mm height) and rugged construction using silver alloy contacts ensure durability and reliability in harsh operating environments ranging from -40°C to 60°C.
Certified to CSA, UL, EN, IEC, and RoHS standards, this power relay is suitable for a broad array of industrial applications including HVAC systems, industrial cleaning equipment, refrigeration, coffee machines, car washing equipment, and pumps.

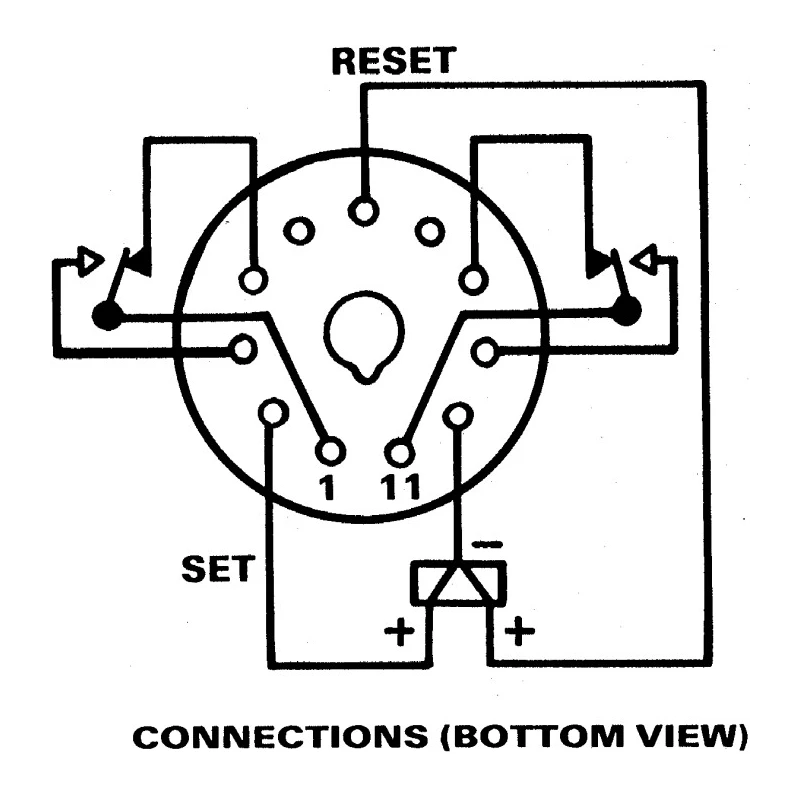

The relay includes an 11-terminal multipole connector complying with IEC 67. The contact configuration is DPDT (double-pole double-throw) suitable for multiple switching tasks. Designed to maintain state without continuous power due to latching functionality.
Equipped with a removable marking label for easy identification during installation. Mechanical flag indicator signals operational status clearly for troubleshooting and maintenance. Compact and robust design facilitates integration into control panels and automation systems.
High-quality silver-nickel contacts provide excellent conductivity and resistance to wear. Operating temperature range from -40°C to 60°C ensures performance in diverse environments.
This product is manufactured in India and is ideal for use in industrial, commercial, and HVAC systems requiring reliable and energy-efficient relay switching. The relay’s design caters to demanding environments and installation engineering requirements.
Explore a wide selection of Power Relays from trusted brands like Releco at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 10A.
The coil voltage for this relay is rated at 24V DC.
It features a DPDT (double-pole double-throw) contact configuration, suitable for versatile switching applications.
The dimensions of this relay are 35mm in length, 35mm in width, and 66mm in height.
The maximum operating temperature for this relay is 60°C.
The relay uses silver alloy as its contact material, ensuring efficient conductivity.
It is certified to CSA, UL, EN, IEC, and RoHS standards for industrial compliance.
The coil resistance of this relay is 63Ω.
The switching AC voltage rating for this relay is up to 250V AC.
This relay is equipped with a solder terminal type for robust electrical connections.
The coil power consumption is rated at 1.5W.
This relay is manufactured in India.
