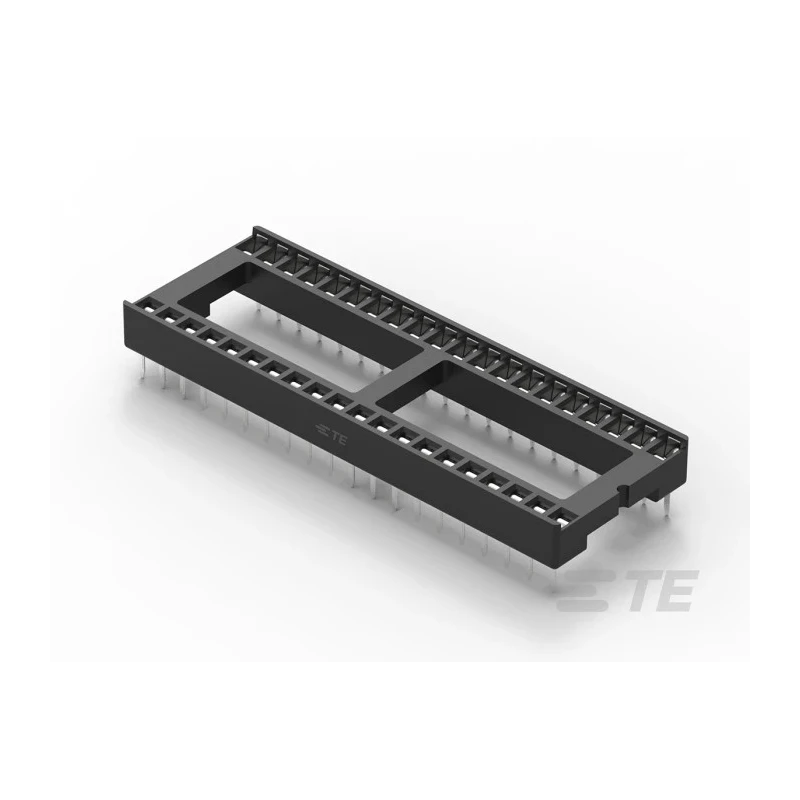

TE Connectivity 2.54 mm Pitch Straight 40 Way Through Hole Stamped Pin Ladder DIL Socket 1-2199299-5
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250, 250V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Frame Type | Ladder |
| Length | 50.8mm |
| Depth | 5.1mm |
| Width | 17.7mm |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic, Glass Filled Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 40 |
| Pin Type | Stamped |
| Row Width | 15.24mm |
Key Features
- The socket features a ladder frame type with phosphor bronze contacts for durability.
- It is designed for use with a 250V AC voltage rating.
- Housing is thermoplastic made from glass filled polybutylene terephthalate for robust insulation.
- Contact pins are tin plated to ensure good solderability and corrosion resistance.
- Suitable for operating temperatures ranging from -40°C to 105°C.
- The socket is easy to solder and supports quick IC mating and replacement.
- Common applications include industrial controls, intelligent building systems, medical devices, and military embedded systems.
- Manufactured in China by TE Connectivity with high quality standards.
Product Description
TE Connectivity 1-2199299-5 DIL Socket is a precision electrical connector featuring 40 contacts with a 2.54 mm pitch and a straight, stamped pin arrangement. This through hole ladder frame socket supports currents up to 1A and voltages up to 250V AC, making it ideal for reliable connection in various electronic assemblies.
The housing is constructed from thermoplastic, glass filled polybutylene terephthalate, providing strong mechanical stability and excellent insulation properties. Contacts are made of phosphor bronze with tin plating to ensure durability and corrosion resistance. The socket's dimensions are 50.8 mm in length, 17.7 mm in width, and 5.1 mm in depth, making it compact for PCB mounting.
Designed for operation in a wide temperature range from -40°C to 105°C, this component is suitable for demanding applications such as industrial controls, intelligent buildings, medical devices, military equipment, and other embedded systems. Its through hole solder termination enables robust mechanical and electrical connections, facilitating quick IC mating and unmating and easing maintenance or upgrades.
The socket offers a ladder frame design for stability during soldering and operation. Phosphor bronze contacts provide electrical reliability and longevity. Straight orientation simplifies PCB layout and design. Supports easy and quick IC replacement during field servicing.
Manufactured with no specific certifications listed but adhering to standard industrial quality norms. Perfect for use in a variety of electronic component assemblies requiring DIP socket solutions.
This TE Connectivity DIL Socket combines durability, precision stamping, and practical design features, ensuring dependable performance in electronic and industrial applications. Its robust thermoplastic housing and plated contacts facilitate a long service life and stable electrical connections.
Explore more from the TE Connectivity range in the DIL Socket category on EnvMart for reliable and high-quality electronic connectivity components.
