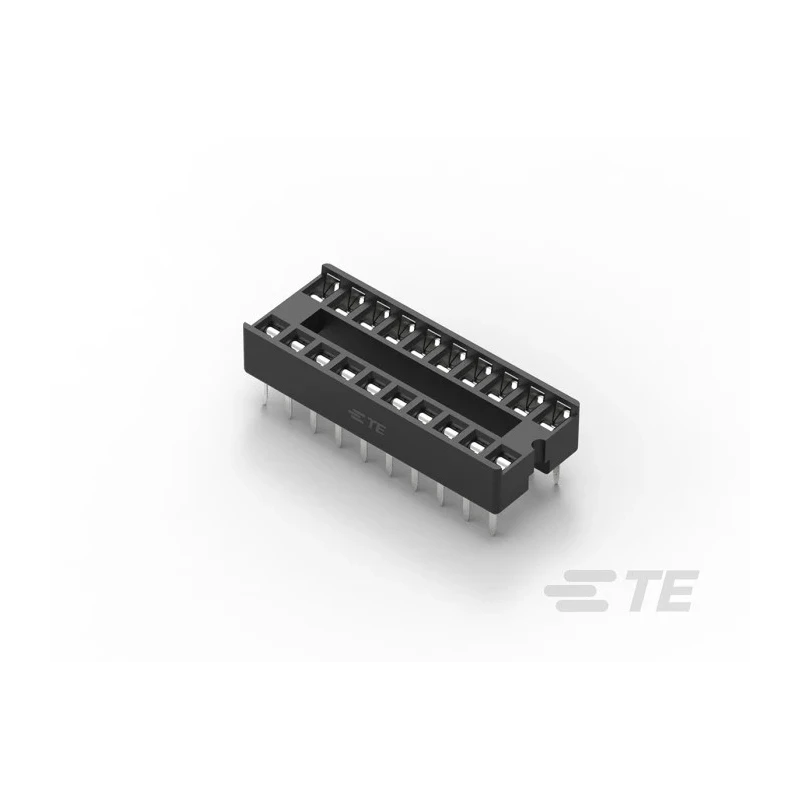

TE Connectivity 2.54 mm Pitch Straight 20 Way Through Hole Stamped Pin Ladder DIL Socket, 1A 1-2199298-6

TE Connectivity 1-2199298-6 is a precision-engineered DIL socket designed for 20-way integrated circuits with a pitch of 2.54 mm. This through-hole mounted socket features stamped pins arranged in a straight orientation, enabling efficient and secure connections on printed circuit boards.

Constructed with phosphor bronze contacts plated with tin, the socket guarantees stable electrical performance and longevity. The housing is fabricated from a glass filled polybutylene terephthalate thermoplastic, delivering resistance to heat and mechanical stress. Rated for a current capacity of 1A and voltage up to 250V AC, it supports various industrial and commercial electronic applications.

The product operates reliably across a wide temperature range from -40°C to 105°C, providing robustness under harsh conditions. With dimensions of 25.4 mm in length, 10 mm width, and 5.1 mm depth, it integrates seamlessly onto boards within compact electronic assemblies.

This socket's ladder frame type and solder termination method optimize durability and ease of assembly. Its design facilitates quick IC mating/unmating, supporting swift maintenance and reducing downtime. The socket helps prevent IC overheating during soldering processes and promotes system upgrade flexibility.

Widely used in industrial controls, intelligent building systems, medical devices, military hardware, and other embedded systems, it serves as a reliable connector solution. This TE Connectivity socket offers a large portfolio choice for connecting integrated circuit devices efficiently.

This socket has a straight orientation and ladder frame type providing reliable connections. Contact plating is tin over phosphor bronze contacts, ensuring durable conductivity. The housing is made from glass filled polybutylene terephthalate thermoplastic for thermal stability.

Operational temperature ranges from -40°C to 105°C for versatile industrial use. This 20-way DIL socket has a length of 25.4mm, width of 10mm, and depth of 5.1mm. Termination type is solder, suitable for PCB through-hole integration.

Applicable in industrial controls, embedded systems, medical devices, and military applications. Provides quick IC mating and easy field IC replacement to avoid overheating during soldering. Explore a wide range of DIL Sockets and related connectors from TE Connectivity at EnvMart for your industrial and electronic component needs.
