TDK Openable Ferrite Sleeve, Diameter 7 mm, Aperture 1, External Dimensions 16.5 mm x 17.4 mm x 30 mm, High ZCAT1730-0730A

TDK ZCAT1730-0730A openable ferrite sleeve is designed for use with USB cables to suppress electromagnetic interference. Featuring a 7 mm diameter aperture, this ferrite core provides high impedance across a wide frequency range, with 40Ω impedance at 25 MHz and 50 MHz, peaking at 100Ω at 100 MHz and 80Ω at both 300 MHz and 500 MHz. This effectively attenuates common mode EMC without compromising signal quality.

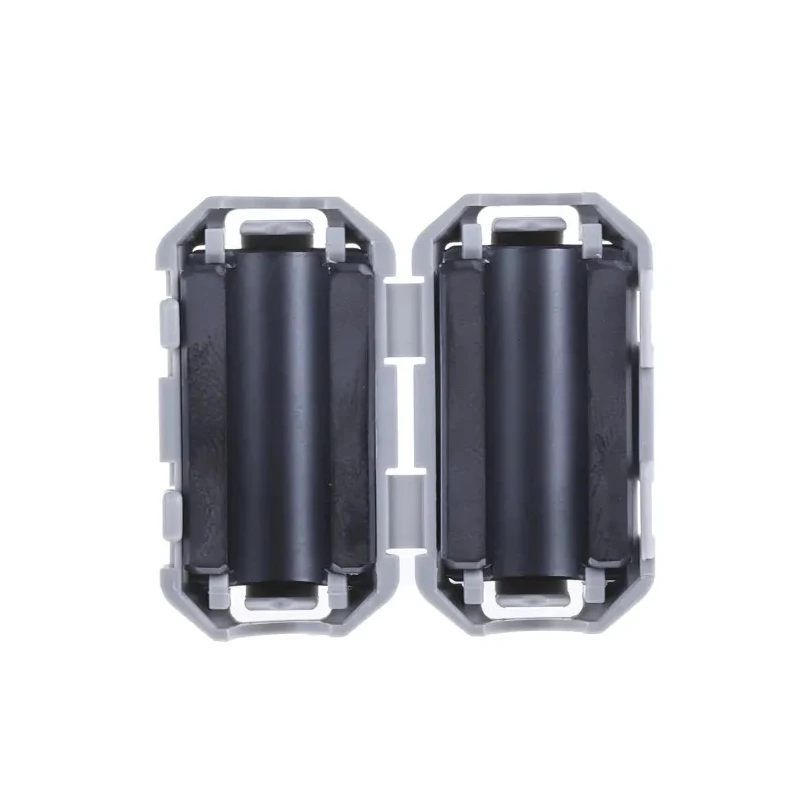

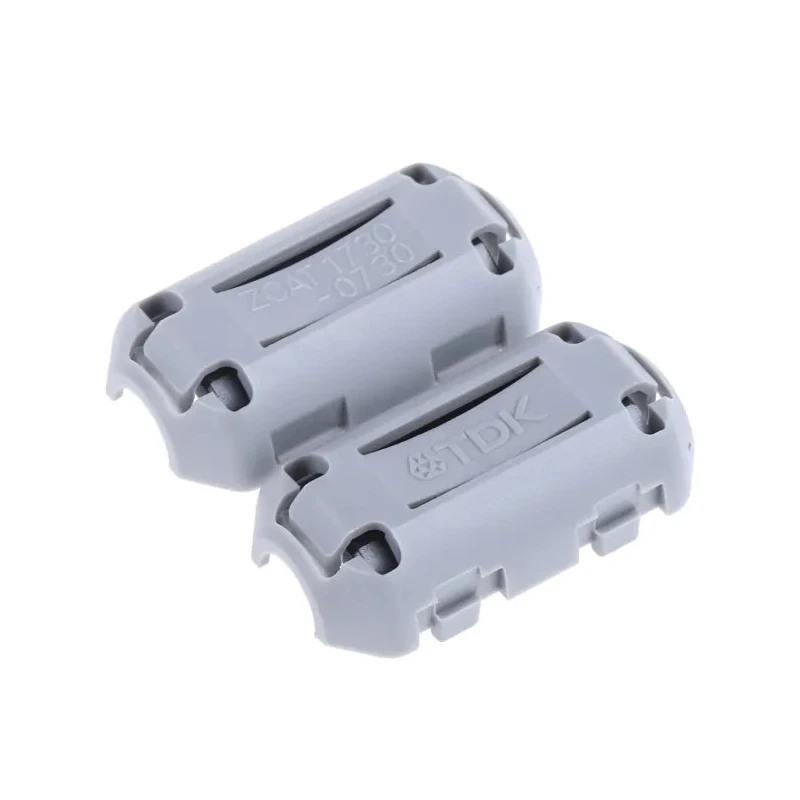

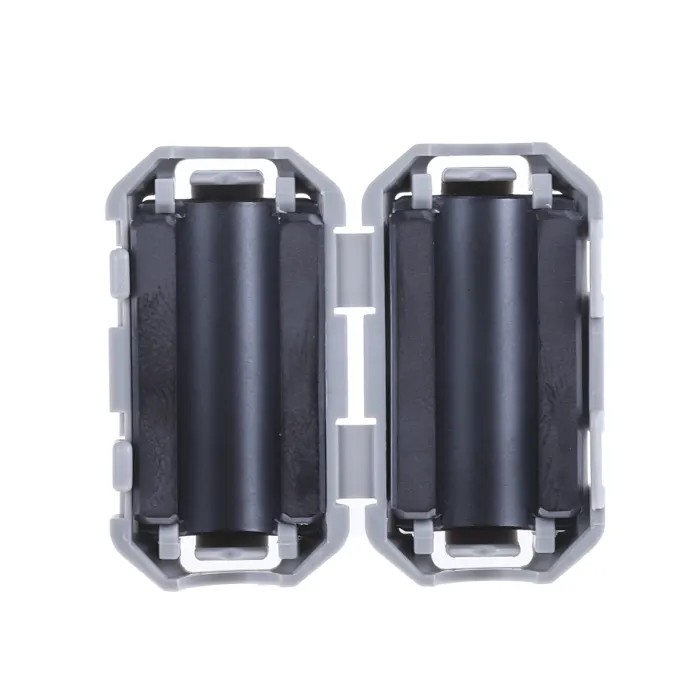

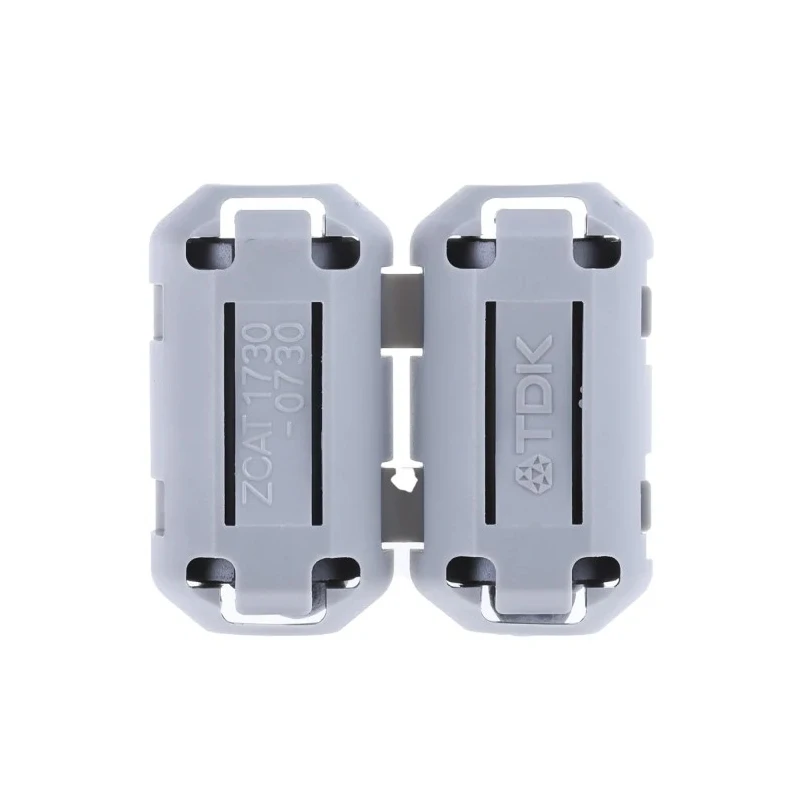

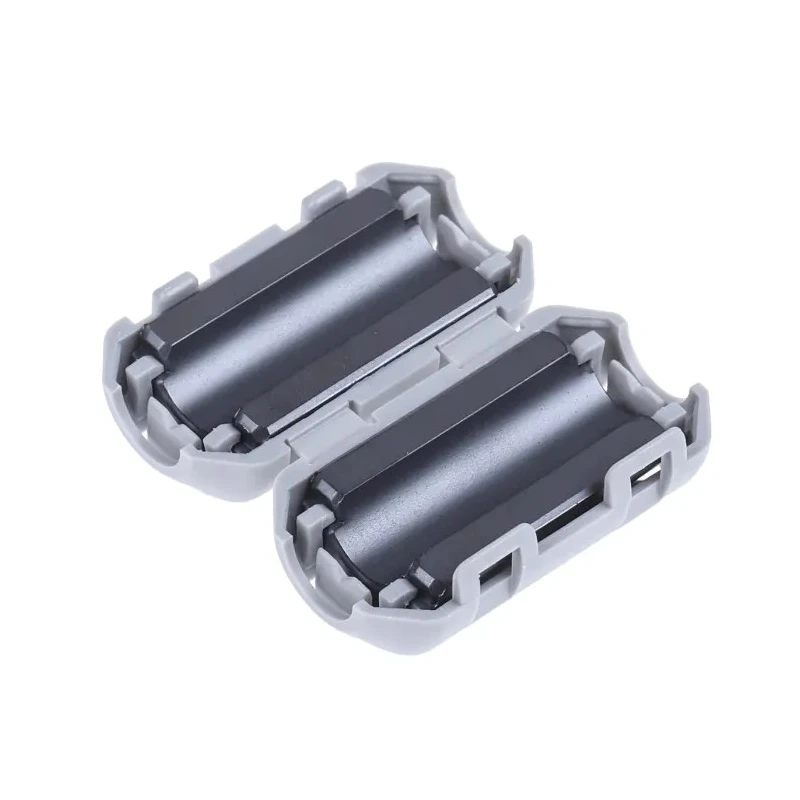

The sleeve is constructed from a specially selected 30 material ferrite core housed in a durable plastic casing that features a snap lock mechanism. This design allows for quick, convenient installation over existing cables without removing connectors, and prevents slippage to ensure stable positioning. The robust housing also protects the ferrite core halves from breakage during use.

With external dimensions of 16.5 mm in depth, 17.4 mm in height, and 30 mm in width, it provides a compact yet effective solution for cable EMI filtering. Its single aperture of 7 mm is well-suited for USB cable diameters, making it ideal for components such as personal computers, monitors, hard disk drives, digital telephones, audio devices, and more.

The ZCAT series is designed to handle large signal surges without core saturation, making it reliable for many electronic and industrial applications. The openable ferrite sleeve also complies with RoHS and REACH standards, ensuring it meets environmental and safety requirements.

The sleeve is openable, allowing easy installation on existing cables without disconnecting connectors. Constructed from 30 material ferrite core for excellent high-frequency EMC absorption. External dimensions measure 16.5 mm depth, 17.4 mm height, and 30 mm width for compact cable management.

Provides impedance of 40Ω at 25 MHz and 50 MHz, 100Ω at 100 MHz, and 80Ω at 300 MHz and 500 MHz. Single aperture design with 7 mm diameter suitable for USB cable shielding. Plastic snap lock housing protects core halves and prevents accidental opening.

Highly effective countermeasure against common mode electromagnetic interference without signal degradation. Ideal for applications in personal computers, monitors, audio devices, and industrial controllers. RoHS and REACH compliant ensuring safe environmental standards.

This product is part of the TDK ZCAT Series clamp filters known for their ease of installation and high EMC attenuation. They are widely used in industrial, electronic, laboratory, and commercial environments requiring effective EMI suppression on data and power cables.
