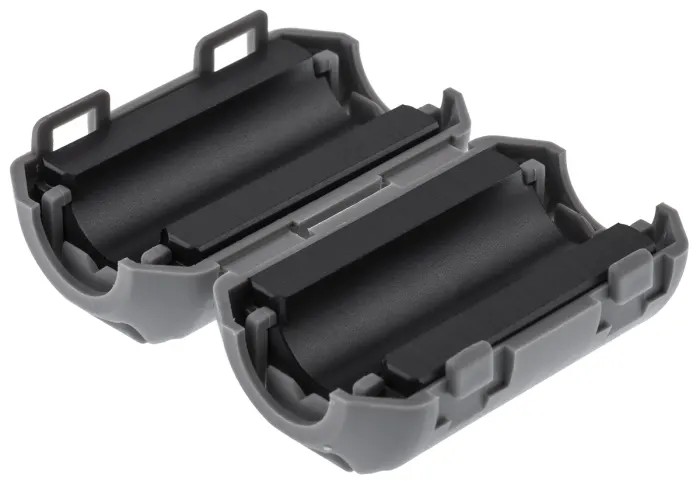

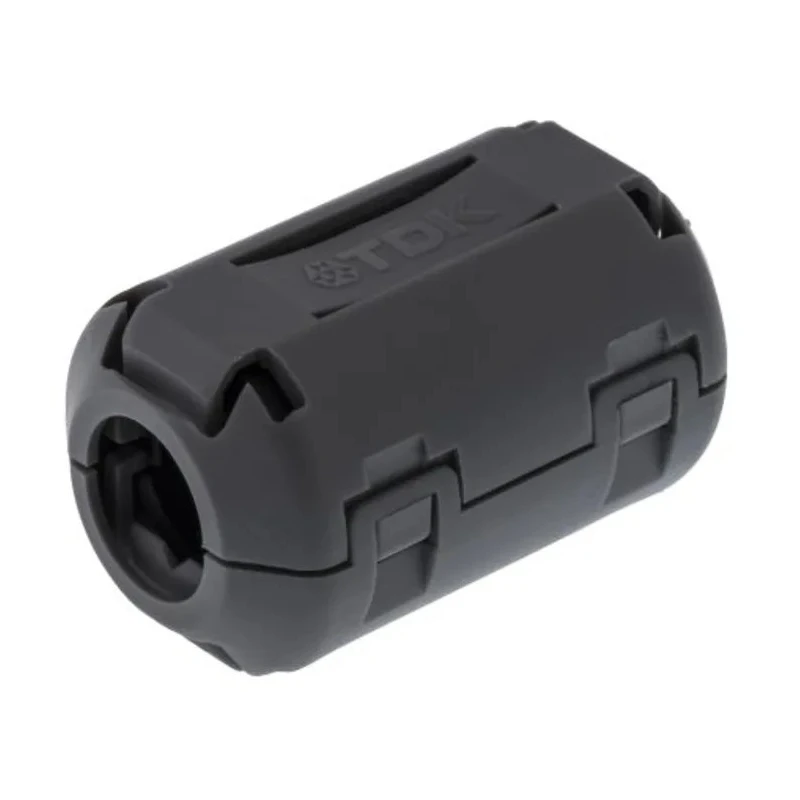

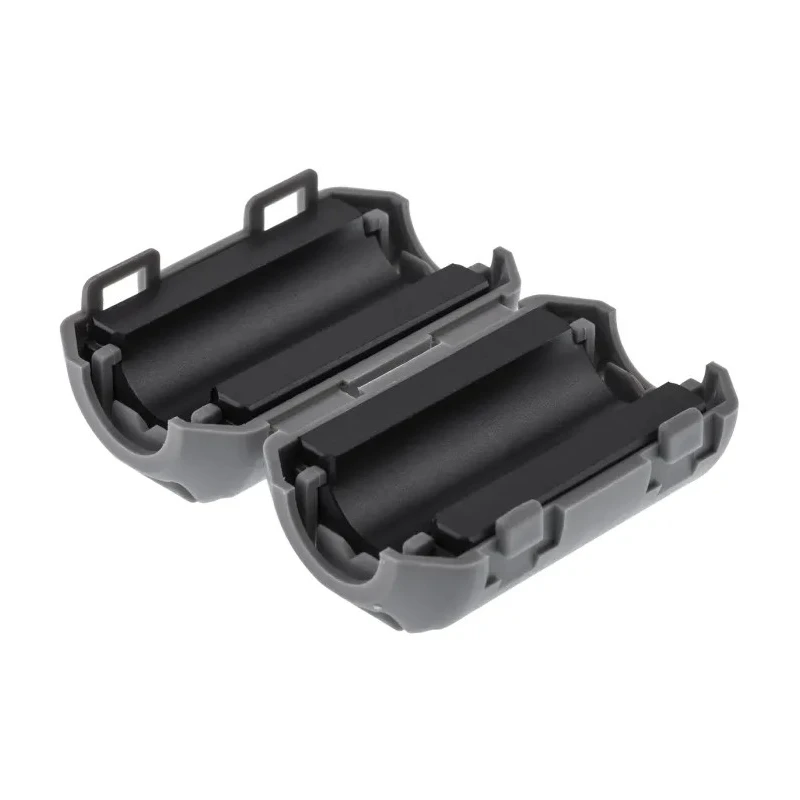

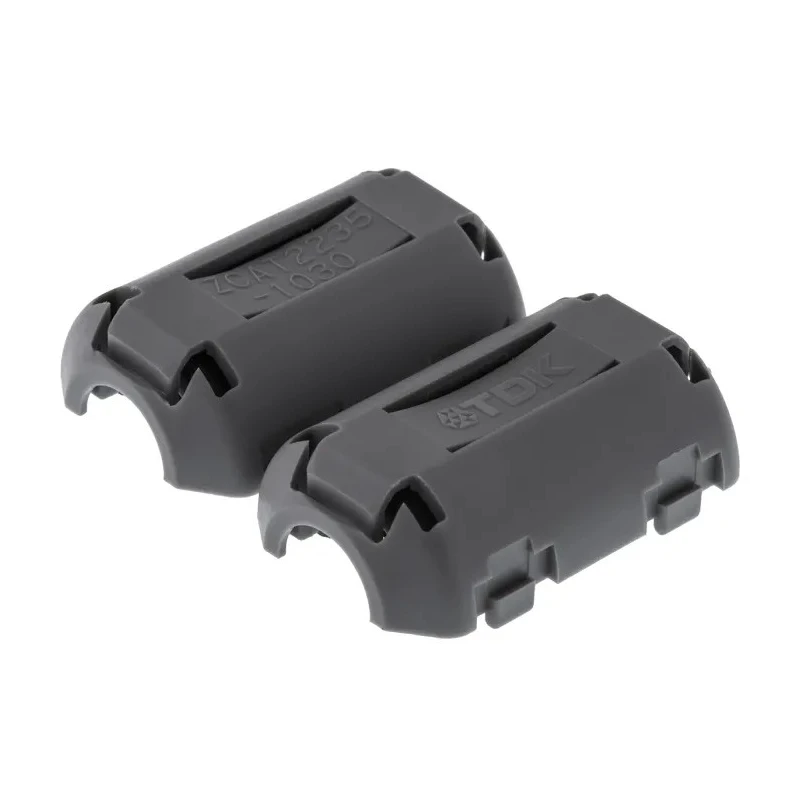

TDK Openable Ferrite Sleeve, Diameter 10 mm, Apertures 1 10 mm 20 mm 35 mm, For EMC Absorption ZCAT2235-1030A
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | 30 Material |
| Model | ZCAT2235-1030A |
| Series | ZCAT |
| Aperture diameter | 10mm |
| Sub Type | Bead |
| External Width | 35mm |
| External Depth | 10mm |
| External Height | 20mm |
| Standards/Approvals | REACH, RoHS |
| Impedance at 100 MHz | 100Ω |
| Impedance at 25 MHz | 50Ω |
| Number of Apertures | 1 |
| TDK Openable, Diameter 10 mm Ferrite Sleeve, Apertures | 1 10 mm 20 mm 35 mm, For EMC Absorption |
Key Features
- Constructed from 30 Material for effective EMC suppression.
- Features a snap-fixing design for easy and secure cable installation.
- Impedance values up to 100Ω at frequencies from 100 MHz to 500 MHz.
- Single aperture design with an external depth of 10 mm, height of 20 mm, and width of 35 mm.
- Complies with REACH and RoHS standards for environmental safety.
- Prevents electromagnetic interference in data and power cables effectively.
- Suitable for use with various cable diameters and snap-lock mechanism prevents accidental opening.
- Ideal for applications in computers, audio devices, telecommunication equipment, and industrial controllers.
Product Description
TDK ZCAT2235-1030A is an openable ferrite sleeve designed specifically for electromagnetic compatibility (EMC) absorption applications. It features a 10 mm diameter with one aperture and multiple aperture size options of 10 mm, 20 mm, and 35 mm for versatile use. Constructed from 30 Material, this ferrite sleeve offers excellent impedance performance, with values reaching 50Ω at 25 MHz and 50 MHz, and 100Ω at frequencies from 100 MHz up to 500 MHz.
The ZCAT Series uses a unique plastic casing and snap-fixing design that allows simple, secure installation on existing cables without slippage, ensuring stable EMC filtering. The self-holding mechanism is particularly useful in preventing accidental detachment, making it reliable in industrial and electronic environments.
This ferrite sleeve is designed to reduce high-frequency electromagnetic interference induced or radiated from power and data cables. The core is optimized to avoid saturation during signal surges, maintaining signal quality without degradation.
Typical applications include personal computers, monitors, word processors, hard disk drives, telephones, audio devices, musical instruments, video games, copiers, facsimiles, industrial controllers, medical engineering devices, and office machines. The outer housing protects the ferrite core from damage and allows optional fixing via glue or cable ties for enhanced reliability.
Constructed with durable 30 Material specifically formulated for EMC absorption. Single aperture with multiple aperture sizes improves compatibility with various cable diameters. Snap-lock mechanism ensures secure installation and prevents accidental opening.
High impedance ratings provide effective noise suppression across a broad frequency range. Meets environmental compliance standards including REACH and RoHS. Perfect for use in electronic and industrial applications requiring EMI suppression.
Robust plastic casing protects the ferrite core against damage and mechanical stress. Ease of assembly facilitates retrofitting on pre-installed cables with connectors.
Explore the full range of TDK Ferrite Sleeves and EMC absorption solutions on EnvMart for enhanced electromagnetic compatibility and noise control in your electronic and industrial systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers impedance values of 50Ω at 25 MHz and 50 MHz, and 100Ω at frequencies from 100 MHz to 500 MHz.
The external dimensions of this unit are 10 mm in depth, 20 mm in height, and 35 mm in width.
It is constructed from 30 Material, specifically formulated for effective EMC absorption.
This product complies with REACH and RoHS standards for environmental safety.
This ferrite sleeve features a single aperture design with multiple size options of 10 mm, 20 mm, and 35 mm.
The snap-lock mechanism allows for easy and secure installation on existing cables, preventing accidental opening.
Typical applications include personal computers, audio devices, telecommunication equipment, and industrial controllers.
The model number of this ferrite sleeve is ZCAT2235-1030A.
The ferrite core is optimized to avoid saturation during signal surges, maintaining signal quality without degradation.
The TDK Openable Ferrite Sleeve is manufactured in India.
The external height of this ferrite sleeve is 20 mm.
It effectively prevents electromagnetic interference in data and power cables, enhancing electromagnetic compatibility.
