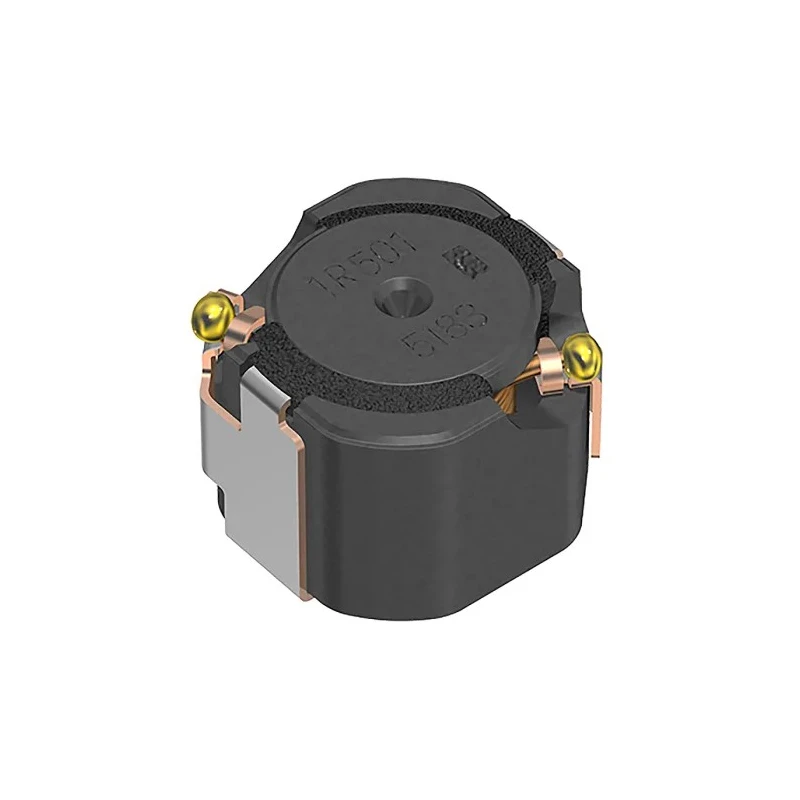

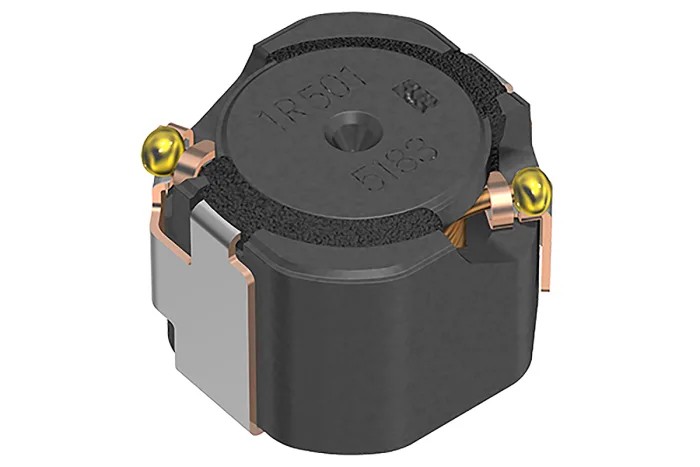

TDK 33 μH Shielded Wirewound Surface Mount Inductor 1.6 A Idc 6045 Package CLF6045NI-D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6mm |
| Brand | TDK |
| Height | 4.5mm |
| Length | 6.3mm |
| Model | CLF6045NI-D |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | CLF6045NI-D |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Standards/Approvals | RoHS |
| Package/Case | 6045 |
| Maximum DC Current | 1.6A |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a ferrite core for high magnetic performance.
- Features a shielded design that reduces electromagnetic interference.
- Operates reliably within a temperature range of -55°C to 150°C.
- Designed for surface mount termination style for efficient PCB integration.
- Meets AEC-Q200 automotive standard ensuring high quality and robustness.
- Maximum DC resistance is only 100 milliohms, maintaining low power loss.
- Supports lead-free reflow soldering processes compliant with RoHS standards.
- Self-resonant frequency reaches up to 100 kHz suitable for DC/DC converter applications.
Product Description
TDK CLF6045NI-D is a shielded wirewound surface mount inductor designed with a ferrite core, providing an inductance of 33 μH ±20% and supporting a maximum DC current of 1.6 A. Packaged in the 6045 case size, this component is suited for high-performance applications requiring compactness and reliability.
The inductor features high mechanical robustness and low DC resistance of 100 mΩ, enabling efficient energy storage and minimal losses. Its shielded construction minimizes electromagnetic interference, which is critical in densely populated electronic circuits.
It operates across a wide temperature range from -55°C to 150°C, compliant with the AEC-Q200 automotive standard, making it ideal for automotive electronics including DC/DC converters, voltage filtering, coupling, and decoupling tasks.
The component supports surface mount technology with lead-free reflow soldering processes, complying with RoHS environmental standards. Its maximum self-resonant frequency is rated at 100 kHz, ensuring stable performance in switching power supplies and filtering circuits.
Physical specifications include a length of 6.3 mm, height of 4.5 mm, depth of 6 mm, and a diameter of 6 mm, allowing integration into compact layouts. Constructed with a ferrite core for high magnetic efficiency. Shielded design reduces electromagnetic interference.
Compliant with automotive AEC-Q200 standard for reliability. Low DC resistance of 100 mΩ minimizes power loss. Supports lead-free reflow soldering and RoHS compliance. Wide operating temperature range from -55°C to 150°C.
Suitable for DC/DC converters and filtering in automotive electronics. Compact 6045 package with precise dimensional specifications.
This TDK surface mount inductor is the robust choice for electronic systems demanding high current handling, low loss, and interference immunity. Ideal for use in industrial, automotive, commercial, and embedded power management circuits.
Explore more Surface Mount Inductors and electronic components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 33 μH ±20%.
It supports a maximum DC current of 1.6 A.
This unit has a length of 6.3 mm, height of 4.5 mm, and depth of 6 mm.
The maximum DC resistance is 100 milliohms, which helps maintain low power loss.
It operates reliably within a temperature range of -55°C to 150°C.
Yes, it meets the AEC-Q200 automotive standard, ensuring high quality and robustness.
The maximum self-resonant frequency is rated at 100 kHz.
It features a surface mount termination style for efficient PCB integration.
The inductor is constructed with a ferrite core, providing high magnetic performance.
It is packaged in tape and reel format, suitable for automated assembly processes.
Yes, it supports lead-free reflow soldering processes and complies with RoHS standards.
It is suitable for applications including DC/DC converters, voltage filtering, coupling, and decoupling tasks in automotive electronics.
