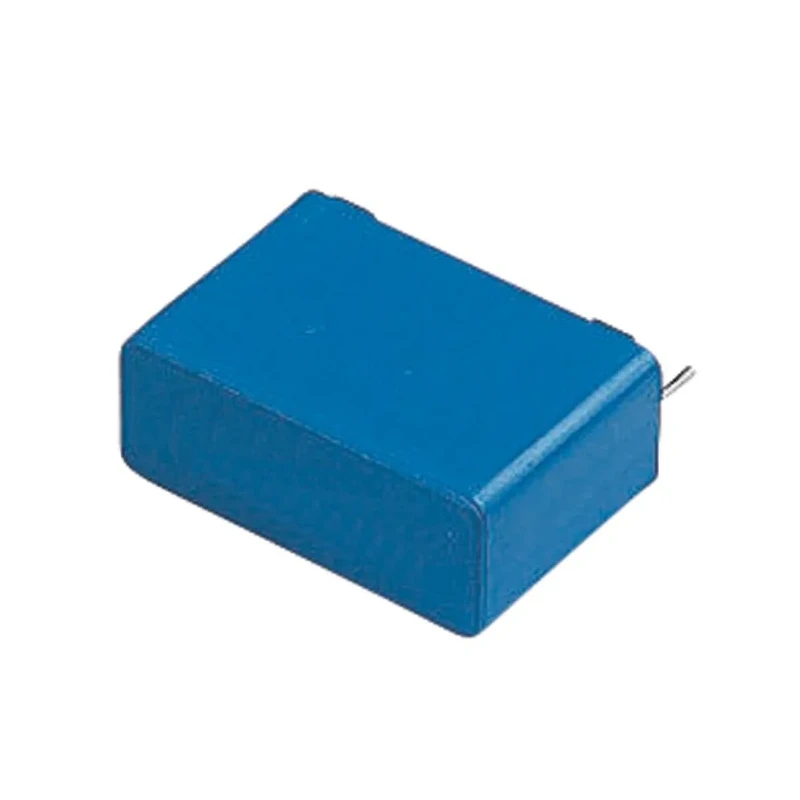

TDK B32522 Film Capacitor 100nF 200V AC 630V DC Through Hole 2-Pin 15mm Lead Pitch B32522Q8104J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 12.5mm |
| Length | 18mm |
| Model | B32522Q8104J000 |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | B32522 |
| Maximum Operating Temperature | 125°C |
| Capacitance | 100nF |
| Standards/Approvals | RoHS, UL |
| Pin Count | 2 |
| Rated AC Voltage | 200V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 Rev D |
Key Features
- Capacitance is precisely 100nF for stable electronic performance.
- Rated AC voltage is 200 volts, suitable for standard AC circuits.
- Provides a high DC voltage rating of 630 volts for reliable DC operation.
- Lead pitch of 15mm with 2 pins ensures compatibility with standard PCB layouts.
- Constructed with stacked-film and wound technology for durability.
- Plastic case with epoxy resin sealing meets UL 94 V-0 flammability standard.
- Designed for high pulse strength and high contact reliability in automotive applications.
- Maximum operating temperature rated at 125°C for robust performance under heat.
Product Description
TDK B32522Q8104J000 film capacitor is a high-quality passive electronic component optimized for precision capacitance of 100nF. It supports an AC voltage rating of 200V and a DC voltage rating up to 630V, making it versatile for a variety of electronic applications including power circuits and signal processing.
The capacitor features a through-hole mount with a 15mm lead pitch and 2 pins, designed for easy integration on printed circuit boards. Its construction uses stacked-film and wound technology enclosed in a plastic case sealed with epoxy resin compliant with UL 94 V-0 standards, ensuring both safety and durability.
This model meets the automotive quality standard AEC-Q200 Rev D, which certifies its suitability for rigorous automotive use, emphasizing high pulse strength and excellent contact reliability. The maximum operating temperature is 125°C, allowing operation in demanding thermal environments.
Physical dimensions are compact with length 18mm, width 7mm, and height 12.5mm, and a lead diameter of 0.8mm, providing a small footprint while maintaining performance. Such specifications make it ideal for general purpose blocking, coupling, decoupling, bypassing, and radio frequency interference mitigation in automotive, industrial, and consumer electronics.
The capacitor complies with RoHS and UL standards, confirming its adherence to environmental and safety regulations. Capacitance of 100nF provides stable and reliable electronic behavior. Dual voltage ratings enable flexible application across AC and DC circuits.
Rhombus-shaped plastic case with epoxy seals guarantee long-life performance. Automotive rated for high pulse and contact reliability. Suitable for industrial manufacturing, automotive electronics, and consumer devices. Compliant with RoHS and UL for environmental and safety assurance.
This film capacitor is a dependable choice for electronics designers seeking a robust and standard-compliant component. Explore more Film Capacitors and electronic components on EnvMart for professional-grade industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is precisely 100nF, providing stable electronic performance.
It has a rated AC voltage of 200V and a rated DC voltage of 630V, making it suitable for both AC and DC applications.
The maximum operating temperature is rated at 125°C, allowing it to perform in demanding thermal environments.
This capacitor features a lead pitch of 15mm and has 2 pins, ensuring compatibility with standard PCB layouts.
The dimensions are 18mm in length, 7mm in width, and 12.5mm in height, with a lead diameter of 0.8mm.
It is designed for through-hole mounting, facilitating easy integration on printed circuit boards.
This model complies with RoHS and UL standards, ensuring it meets environmental and safety regulations.
Yes, it meets the automotive quality standard AEC-Q200 Rev D, certifying its suitability for rigorous automotive use.
It is constructed using stacked-film and wound technology, enclosed in a plastic case sealed with epoxy resin.
It is suitable for general purpose blocking, coupling, decoupling, bypassing, and radio frequency interference mitigation in various electronic devices.
The epoxy resin sealing meets the UL 94 V-0 flammability standard, ensuring safety and durability in operation.
The country of origin for this capacitor is India.
