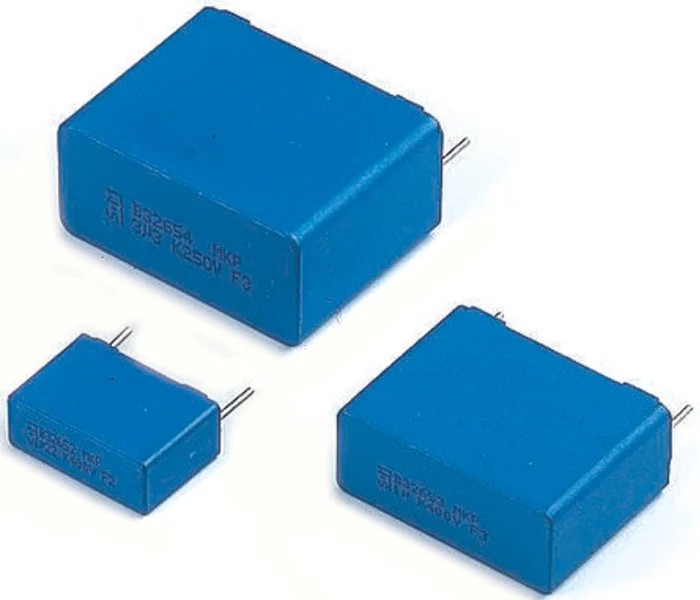

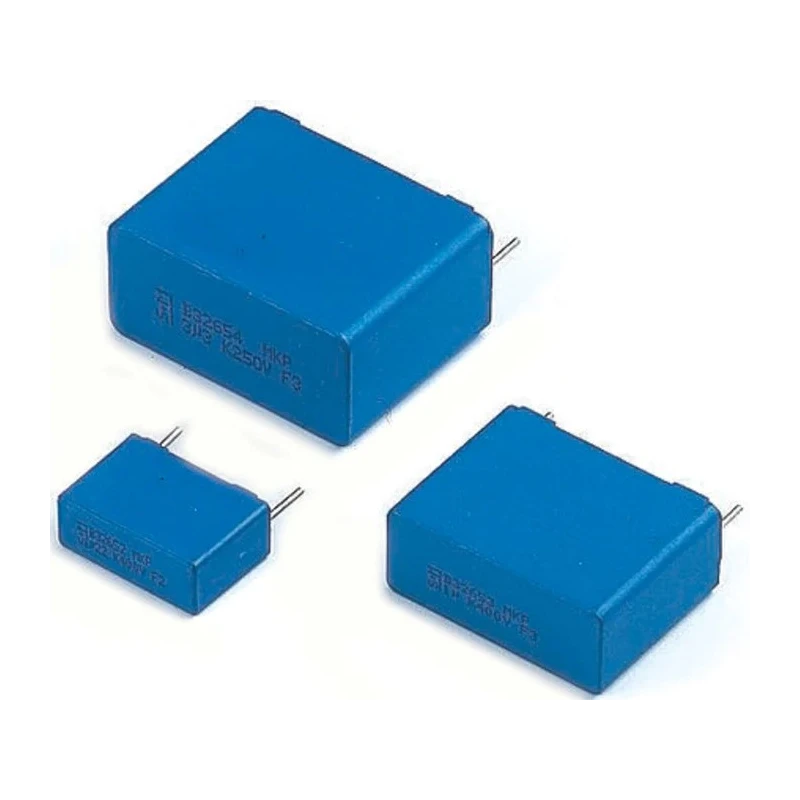

TDK Film Capacitor 470 nF 500V AC 1.25 kV DC, Tab Mount B32656S7474J564

The TDK B32656S7474J564 is a high-performance film capacitor designed for industrial and electronic applications requiring reliable capacitance and voltage endurance. This capacitor features a capacitance value of 470 nF and supports an AC voltage of 500V as well as a DC voltage rating of 1.25 kV, making it suitable for power electronics, filtering, and noise suppression tasks.

Manufactured under the B32656S series, the capacitor employs wound capacitor technology with an internal series connection to enhance pulse strength and contact reliability. The plastic case and epoxy resin sealing conform to UL 94 V-0 standards, ensuring durability and flame retardance. It has a tab mount type with 2 pins and a 12 mm lead pitch, facilitating easy integration on printed circuit boards (PCB).

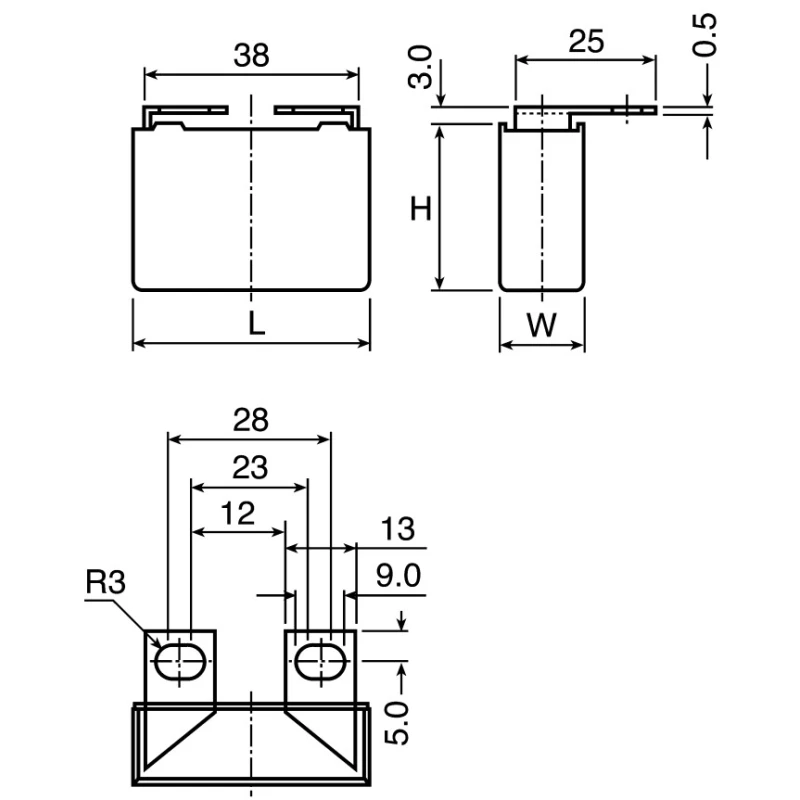

Dimensionally, the capacitor measures 42 mm in length, 32.5 mm in height, and 18 mm in width, providing a compact footprint while sustaining a maximum operating temperature of 100°C for robust thermal performance.

Compliance with UL and RoHS standards assures users of its safety, quality, and environmental friendliness. This capacitor is ideal for industrial machines, electronic devices, power supplies, and other demanding electrical systems requiring reliable passive components.

High pulse strength with reliable contact performance. Plastic case construction with epoxy resin sealing (UL 94 V-0 rated). Wound capacitor technology with internal series connection. Rated for maximum operating temperature of 100°C.

Complies with UL and RoHS standards for safety and environmental compliance. Compact dimensions with a lead pitch of 12 mm for PCB mounting. Capacitance value of 470 nF suitable for various electronic uses. Explore more Film Capacitors in the Electronics Components category at EnvMart for precise and reliable passive components.
