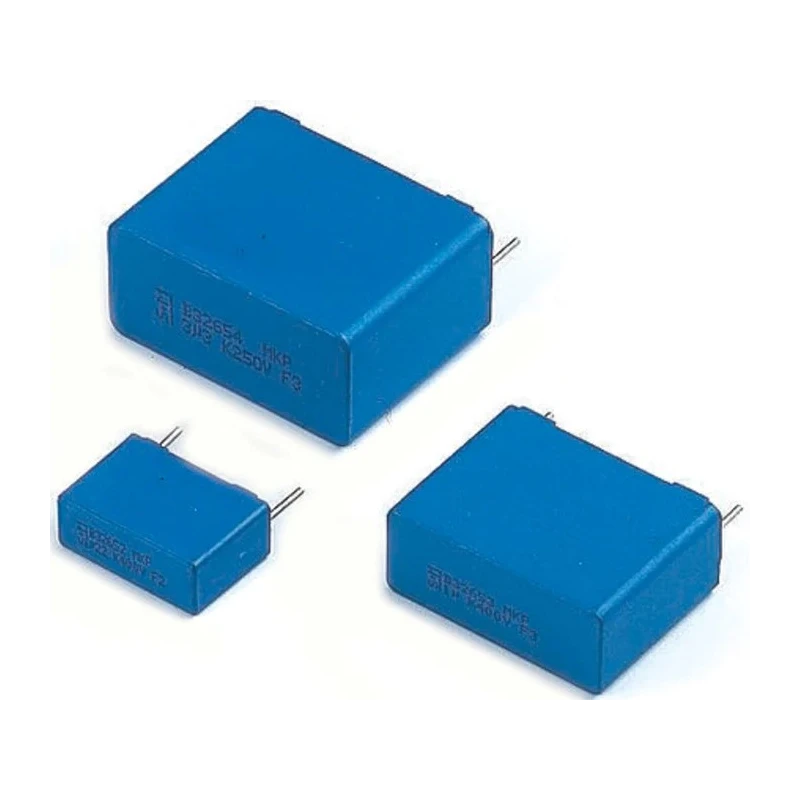

TDK Film Capacitor 470 nF, 800V AC, Tab Mount, Plastic Case, Epoxy Resin, B32656S2474J561

TDK B32656S2474J561 Film Capacitor offers a capacitance of 470 nF with an 800V AC rating, designed for robust and reliable electronic circuit applications. Featuring a Tab mount type, it is housed in a plastic case with epoxy resin sealing rated UL 94 V-0, ensuring high safety standards and mechanical protection.

This capacitor belongs to the B32656S series, distinguished by high pulse strength and superior contact reliability, making it suitable for demanding electronic environments. Its wound capacitor technology with internal series connection enables very low inductance, optimizing electrical performance.

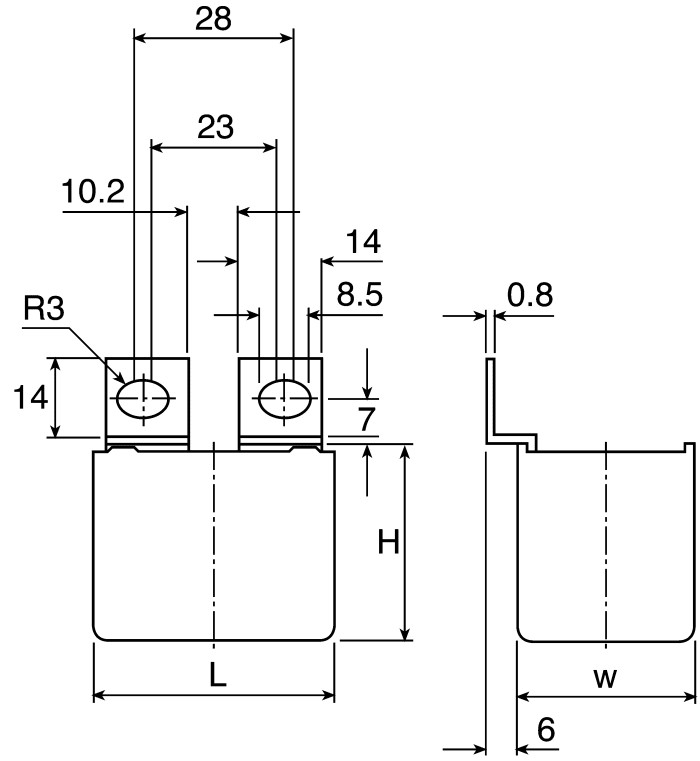

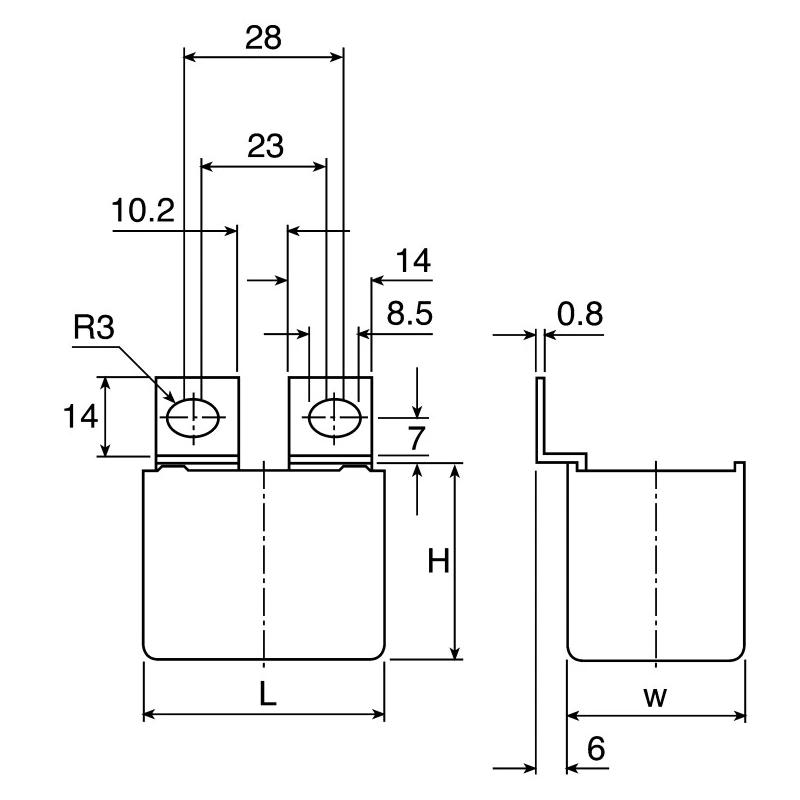

Operating temperature rating up to 100°C guarantees durability under thermal stress in industrial and commercial electrical systems. The compact dimensions of 42mm length, 45mm height, and 30mm depth enable space-efficient layout in circuit designs.

Common applications include industrial electronics, power conversion systems, signal processing equipment, and other high voltage AC applications where reliable capacitance and long-term stability are critical. The Tab mount facilitates effective PCB integration and secure connection.

High pulse strength and excellent contact reliability. Very low inductance design for improved electrical performance. Plastic case with epoxy resin sealing compliant with UL 94 V-0 for fire safety. Advanced wound capacitor technology with internal series connection.

Rated for 800V AC operation at up to 100°C maximum temperature. Compact form factor with dimensions 42mm x 45mm x 30mm. Simple Tab mounting for mechanical and electrical stability on PCBs.

This Film Capacitor delivers dependable performance for industrial, laboratory, manufacturing, and electronic component assembly applications. Its robust construction and high-voltage rating make it an essential part in power electronics and control systems. Browse EnvMart for more TDK capacitors and related passive components.
