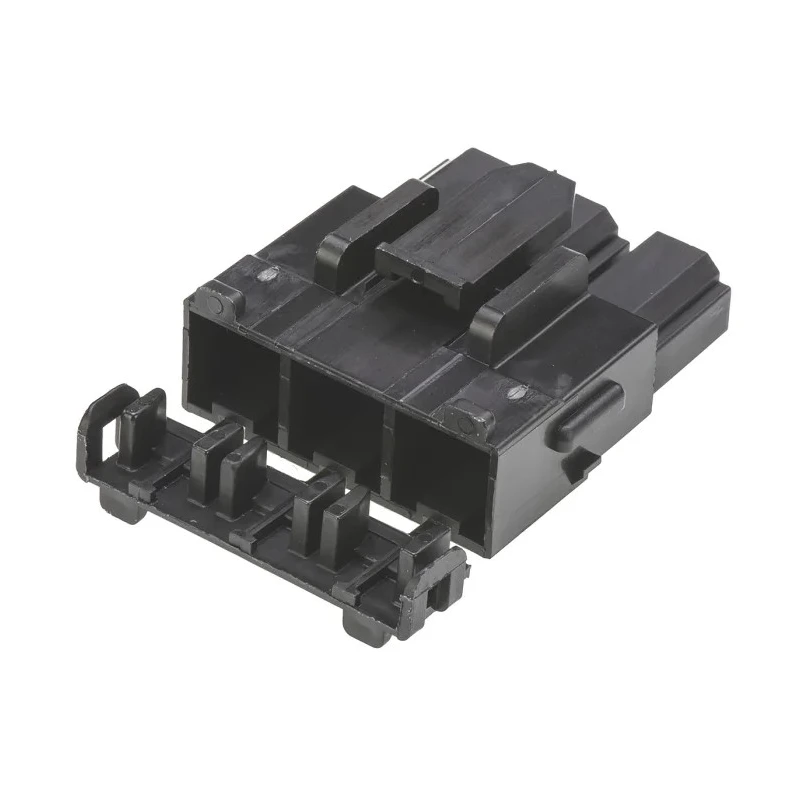

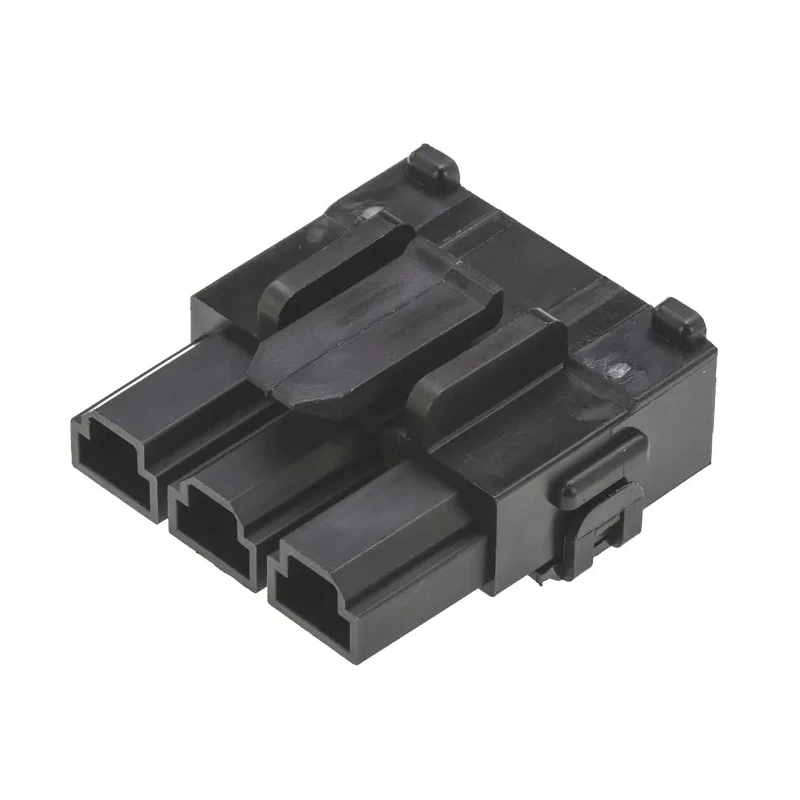

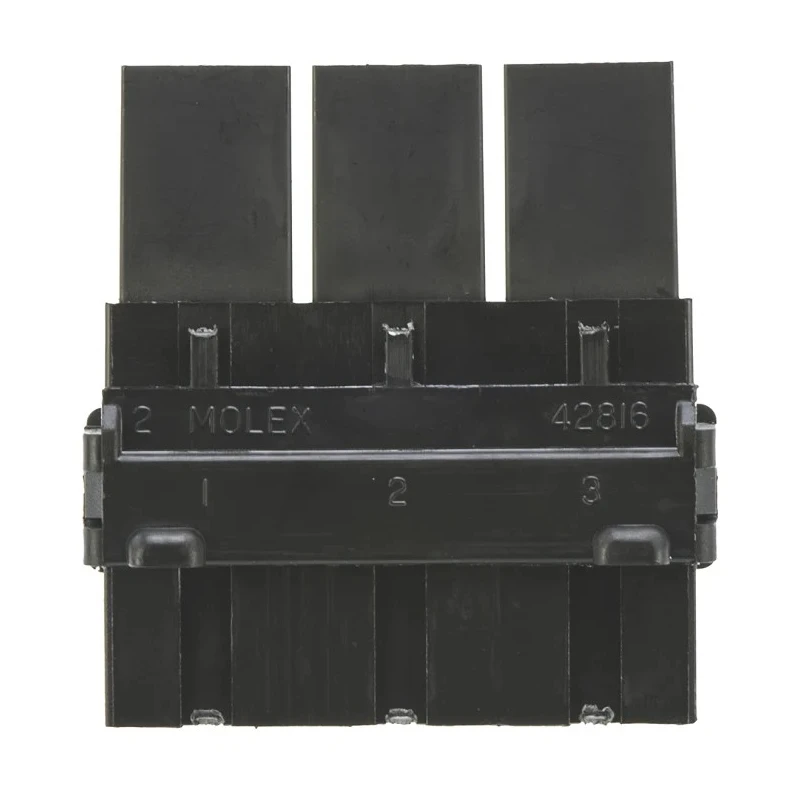

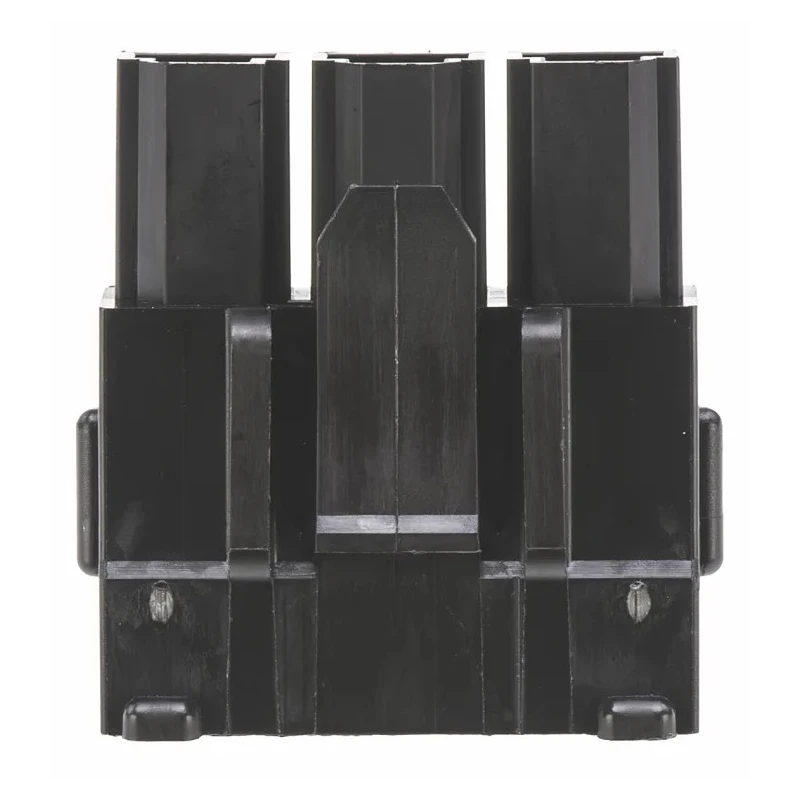

Molex Mini-Fit Female Connector Housing 10 mm Pitch 3 Way 2 Row Straight 42816-0312

Molex 42816-0312 Mini-Fit Female Connector Housing is engineered for reliable and high-performance connections in electrical and electronic assemblies. Featuring a 10 mm pitch and a 3 way, 2 row straight female configuration, this connector housing is ideal for managing multiple electrical hook-ups safely and efficiently. Its polyamide (PET) housing material provides excellent durability and impact resistance to protect sensitive electrical contacts.

The narrow 10 mm pitch supports optimized packing density on printed circuit boards, making this housing a suitable choice for compact designs. It supports a maximum current rating of 50A per contact, making it apt for high-current applications in various industrial and consumer sectors.

This Connector Housing has a polarised design that ensures connectors can only be mated in the correct orientation, preventing misalignment and ensuring reliable electrical performance. It includes a Terminal Position Assurance (TPA) clip, which is a secondary locking mechanism that guarantees terminals are fully inserted and securely locked within the housing.

The connector is designed for cable mounting and works with Molex 42815 Female Crimp Terminals. It features a length of 30.9 mm and a width of 34.4 mm, offering a compact footprint ideal for space-constrained applications.

Applications range across control applications, lighting systems, consumer electronics, and medical devices, highlighting its versatility and industrial suitability. The housing is part of the Mini-Fit Sr. series which boasts UL, CSA, and TUV approvals, positive mechanical latches to prevent disengagement, and high temperature resistance with glass-filled nylon headers.

Constructed from polyamide housing material for impact and electrical insulation. Supports up to 3 contacts arranged in 2 rows with 10 mm pitch spacing. Polarised connector prevents incorrect mating and ensures contact reliability.

Compatible with Molex 42815 female crimp terminals and includes a TPA clip. Compact dimensions of 30.9 mm length and 34.4 mm width. Withstands high current loads up to 50A per contact. Durable design suitable for industrial, consumer electronics, and medical use.

Part of the UL94V-0 rated Mini-Fit Sr. series with positive mechanical locking. Explore more quality connectors and accessories in the Electronics Components category on EnvMart for advanced electrical connectivity solutions.
