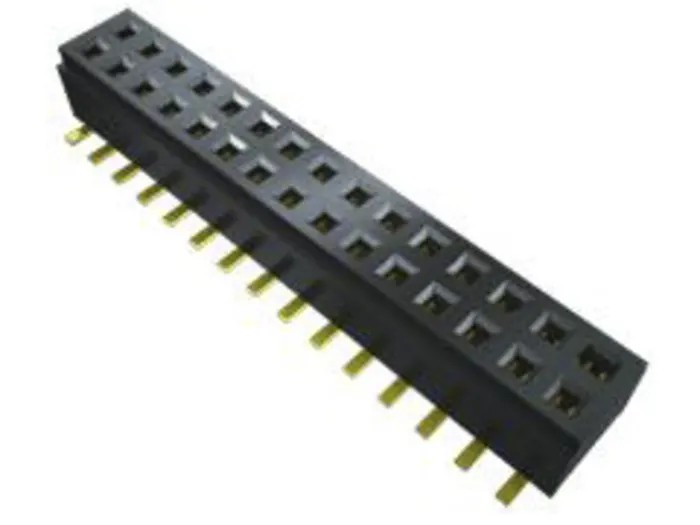

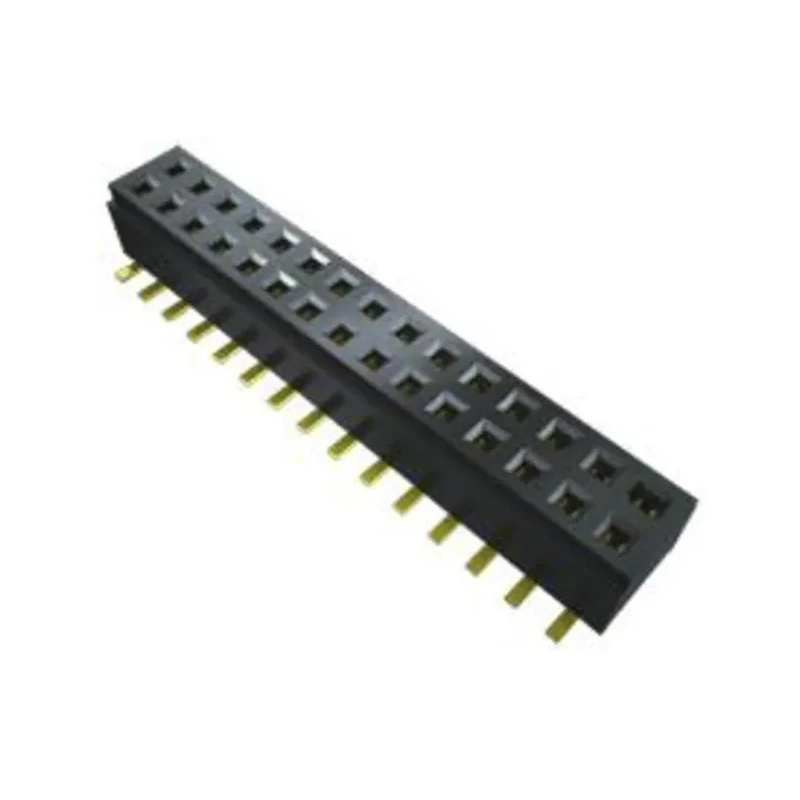

Samtec CLM Series Straight Surface PCB Socket 20-Contact 2 Row 1 mm Pitch Solder CLM-110-02-F-D
Specifications
| Country of Origin | Vietnam |
|---|---|
| Voltage | 270V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.8A |
| Model | CLM-110-02-F-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | CLM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Rugged Reliable Dual Wipe Micro Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Connector System | Board-to-Board |
Key Features
- Designed for board-to-board connector system applications.
- Operating voltage up to 270V and current rating of 2.8A.
- Constructed with bronze contact material plated with gold for enhanced conductivity and durability.
- Housing made from liquid crystal polymer ensuring high temperature resistance.
- Surface mount type with straight orientation for easy PCB integration.
- Temperature operating range from -55°C to 125°C ensures reliability under harsh conditions.
- Low profile with dual wipe Tiger Claw™ contact design for secure connections.
- Available with cost-saving gold plating and optional tape and reel packaging.
Product Description
Samtec CLM-110-02-F-D Straight Surface PCB Socket is a high-performance electronic component tailored for demanding board-to-board interconnect applications. This socket offers 20 individual contacts arranged in 2 rows with a precise 1 mm pitch designed to support solder termination.
Manufactured from durable bronze contacts plated with gold, it ensures superior electrical conductivity and corrosion resistance. The housing is crafted from liquid crystal polymer, which provides excellent structural integrity and thermal stability, capable of operating between -55°C and 125°C.
The socket supports up to 270 volts and 2.8 amperes, ensuring suitability for a wide range of industrial and electrical applications including electronics manufacturing, industrial control systems, and telecommunications equipment.
Its straight orientation and surface mount design allow for straightforward, reliable integration onto printed circuit boards. The rugged dual wipe Tiger Claw™ contacts provide enhanced mechanical reliability and low contact resistance.
Additional benefits include optional tape and reel packaging for automated assembly. This product is manufactured in Vietnam under stringent quality controls. Designed for board-to-board connector system applications. Operating voltage up to 270V and current rating of 2.8A.
Constructed with bronze contact material plated with gold for enhanced conductivity and durability. Housing made from liquid crystal polymer ensuring high temperature resistance. Surface mount type with straight orientation for easy PCB integration.
Temperature operating range from -55°C to 125°C ensures reliability under harsh conditions. Low profile with dual wipe Tiger Claw™ contact design for secure connections. Available with cost-saving gold plating and optional tape and reel packaging.
Made in Vietnam with high manufacturing standards.
This PCB Socket is ideal for use in industrial electronics, laboratory equipment, telecommunications devices, and manufacturing assembly lines that require reliable and rugged interconnect solutions. Browse our Electronics Components category for more connectors and sockets including other Samtec models and series.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 270V.
This PCB socket has a current rating of 2.8A.
The operating temperature range for this socket is from -55°C to 125°C.
This model features a 1 mm pitch and has 20 individual contacts arranged in 2 rows.
The contacts are made from bronze and are plated with gold, while the housing is constructed from liquid crystal polymer.
This socket uses solder termination.
The Samtec CLM-110-02-F-D has a straight orientation.
This model is a surface mount type, allowing for easy integration onto printed circuit boards.
It features a dual wipe Tiger Claw™ contact design for enhanced mechanical reliability and low contact resistance.
This PCB socket is manufactured in Vietnam.
It is suitable for industrial electronics, laboratory equipment, telecommunications devices, and manufacturing assembly lines.
Yes, this model is available with optional tape and reel packaging for automated assembly.
