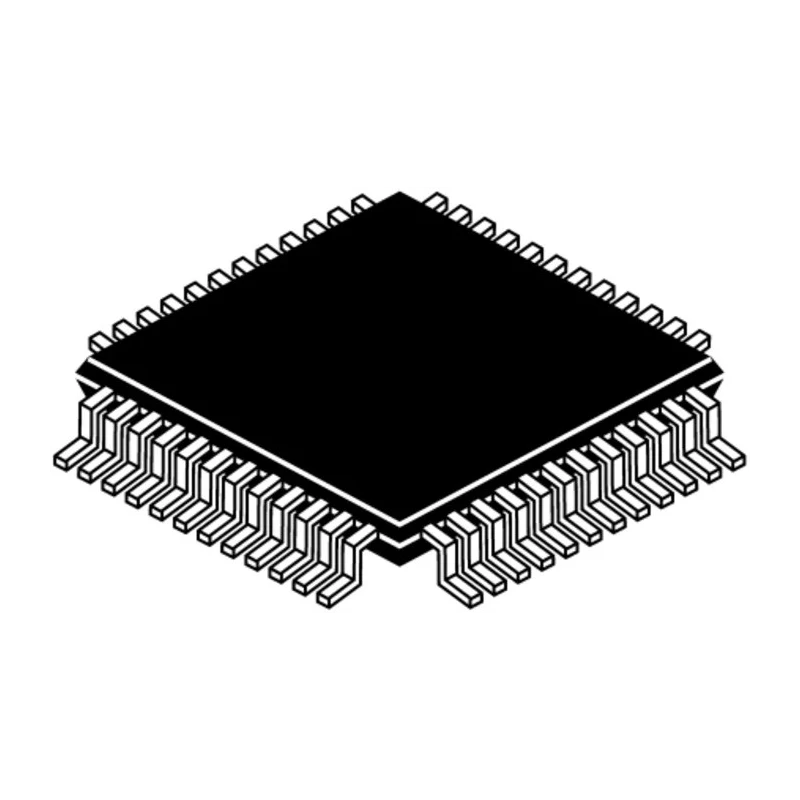

Texas Instruments Audio DAC Digital to Analogue Converter 24 bit Resolution 4-Channel SPI Interface 216 ksps PCM4104PFBT
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 24 bit |
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 7.2mm |
| Model | PCM4104PFBT |
| Mount Type | Surface |
| Sampling rate | 216ksps |
| Output type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -10°C |
| Number Of Channels | 4 |
| Interface Type | SPI |
| Architecture | Delta Sigma |
| Pin Count | 48 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 5V |
Key Features
- Delta Sigma architecture ensures high accuracy in audio signal conversion.
- Provides four audio channels suitable for complex audio processing.
- Operates at a minimum supply voltage of 5V and maximum supply voltage of 6V.
- Compact 48-pin TQFP package with dimensions 7.2 mm length and 1.2 mm height.
- Supports external voltage reference and differential output type for superior audio quality.
- Operates reliably in temperatures ranging from -10°C to 70°C.
- Surface mount type suitable for automated manufacturing processes.
- Interface through SPI enables easy integration with control systems.
Product Description
Texas Instruments PCM4104PFBT Audio DAC is a high-performance 24-bit Digital to Analogue Converter designed for industrial and commercial audio applications. It features a Delta Sigma architecture that provides precise and accurate conversion of digital audio signals into analogue output across four channels, enabling rich and immersive audio experiences in various electronic devices.
Operating at a sampling rate of 216 ksps, the PCM4104PFBT supports high-fidelity audio processing. Its surface mount 48-pin TQFP package measures 7.2 mm in length and 1.2 mm in height, making it suitable for compact PCB designs while maintaining robust electrical performance. The device requires a supply voltage between 5V and 6V and utilizes an external voltage reference to optimize signal accuracy.
This audio DAC provides differential output for reduced noise and interference, ensuring clear audio reproduction. The device supports SPI interface communication, facilitating straightforward integration into digital audio systems and embedded controllers.
The operating temperature range of -10°C to 70°C allows this component to function reliably in varied environmental conditions common in industrial, manufacturing, and consumer electronics settings. It does not conform to automotive standards but is ideal for general electronic products requiring high-quality audio output.
Delta Sigma architecture for accurate audio conversion. Four channels enable multi-audio stream processing. Compact 48-pin TQFP surface mount package. Supports external voltage reference for improved precision. SPI interface for easy system communication.
Wide operating temperature range from -10°C to 70°C. Differential output reduces audio noise and distortion. Compatible with 5V to 6V supply voltages. Designed for industrial and consumer audio applications. Explore more Texas Instruments semiconductor audio solutions and related digital-to-analog converters available at EnvMart for your next design or manufacturing project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCM4104PFBT has a resolution of 24 bits, providing high accuracy in audio signal conversion.
This model operates at a maximum sampling rate of 216 ksps, suitable for high-fidelity audio processing.
It supports four audio channels, allowing for complex audio processing and multi-audio stream capabilities.
The PCM4104PFBT provides a differential output type, which helps reduce noise and interference in audio reproduction.
It requires a supply voltage between 5V and 6V for operation.
This unit comes in a compact 48-pin TQFP package with dimensions of 7.2 mm in length and 1.2 mm in height.
The operating temperature range is from -10°C to 70°C, making it suitable for various environmental conditions.
It utilizes an SPI interface, facilitating easy integration with control systems and digital audio setups.
The PCM4104PFBT uses Delta Sigma architecture, which ensures high accuracy in audio signal conversion.
Yes, this model supports an external voltage reference to optimize signal accuracy for better audio quality.
It is designed for surface mounting, which is suitable for automated manufacturing processes.
This audio DAC is intended for industrial and commercial audio applications, providing high-quality audio output.
