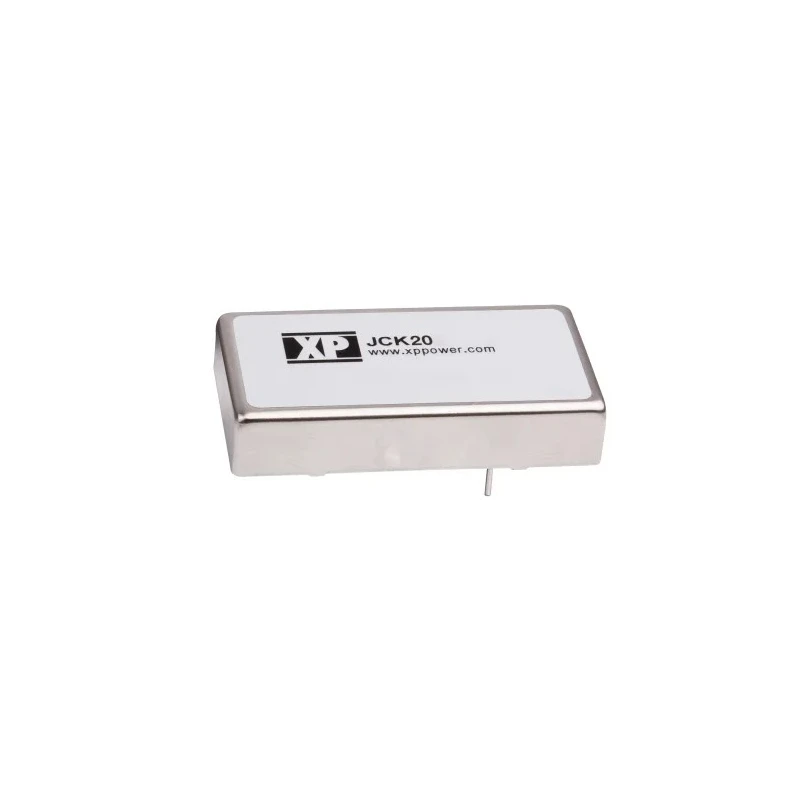

XP Power Isolated DC/DC Converter 5V DC Output 4A, 18-36V DC Input, 20W Max Power, Through Hole Mount JCK2024S05

XP Power JCK2024S05 is a highly reliable isolated DC/DC converter offering 20 watts of output power with a regulated 5V DC voltage at 4A output current. It accepts a wide input voltage range from 18V to 36V DC, making it versatile for various power supply needs. The converter features a through hole DIP package with 6 pins enabling secure mounting and effective heat dissipation on PCBs.

This device provides 1600 VDC isolation which enhances safety, particularly in industrial applications where electrical isolation is critical. Its high efficiency of up to 93% reduces energy losses and heat generation, improving operational cost-effectiveness. The unit operates safely over an extended temperature range from -40°C to +100°C, suitable for demanding environments.

The JCK20 series, including the JCK2024S05 model, incorporates remote on/off control, allowing users to conveniently enable or disable power output. With a Mean Time Between Failure (MTBF) of 680,000 hours, this converter is designed for longevity and dependable operation in manufacturing, industrial controls, telecommunications, and laboratory equipment.

Its compact form factor measuring 50.8mm length, 25.4mm width, and 10.2mm depth allows easy integration into existing systems. The single output design and DIP package type facilitate simple installation and replacement in board-mounted power applications. The JCK2024S05 is manufactured in Taiwan, reflecting quality standards consistent with XP Power’s reputation.

High efficiency up to 93% ensures optimal power conversion. Through hole mount DIP package designed for easy PCB integration. 1600 VDC isolation for safety in industrial and commercial applications. Wide operating temperature range from -40°C to 100°C for harsh environments.

Single output converter with 6 pins and compact dimensions of 50.8mm x 25.4mm x 10.2mm. MTBF rated at 680,000 hours indicating long operational life. Supports remote on/off functionality to control power supply effectively.

Suitable for industrial, manufacturing, laboratory, and power supply system applications.

This XP Power DC/DC Converter is ideal for applications requiring isolated and efficient voltage conversion such as industrial controls, power supply units, communication equipment, and laboratory instruments. Its rugged design and thermal tolerance make it suitable for a wide range of commercial and industrial environments. Browse EnvMart’s Electronics & Electricals category for more power supply and converter solutions from trusted brands like XP Power.
