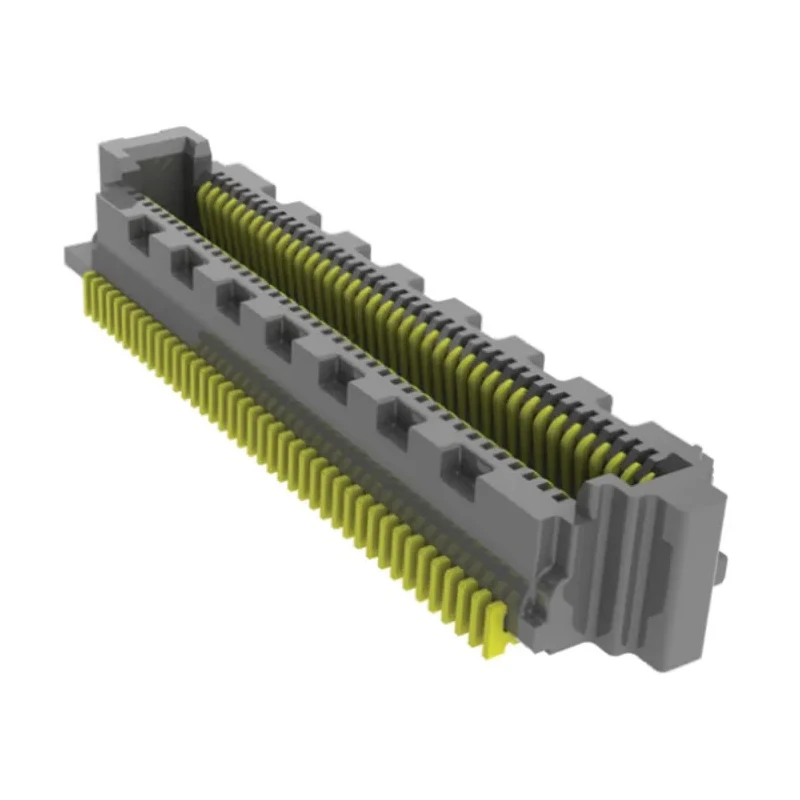

Samtec SS4 Series Straight Surface PCB Socket 100-Contact 2 Row 0.4 mm Pitch Solder SS4-50-3.00-L-D-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec SS4 Series Straight Surface PCB Socket 100-Contact 2 Row 0.4 mm Pitch Solder SS4-50-3.00-L-D-K-TR

Name: Samtec SS4 Series Straight Surface PCB Socket 100-Contact 2 Row 0.4 mm Pitch Solder SS4-50-3.00-L-D-K-TR
Brand: Samtec
SKU: 130563
Price: 6.64 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	1.3A
Model	SS4-50-3.00-L-D-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	SS4
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.4mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	6mm
Row Pitch	1.41mm

Key Features

High-density 100-contact design for board-to-board connectivity.
Dual row configuration with a pitch of 0.4 mm for space-saving PCB applications.
Constructed with Liquid Crystal Polymer housing for durability and heat resistance.
Phosphor bronze contacts plated with 0.25μm gold for reliable electrical performance.
Supports current rating of 1.3A with 6 mm stacking height for compact assembly.
Operates efficiently within temperature range of -55°C to 125°C.
Features polarized Razor Beam™ contacts for secure connection and increased withdrawal force.
Surface mount with straight orientation for easy integration during PCB assembly.

Product Description

Samtec SS4-50-3.00-L-D-K-TR straight surface PCB socket is a high-density, low profile board-to-board connector designed for demanding electronic applications. Featuring 100 contacts arranged in 2 rows with an ultra fine 0.4 mm pitch, this socket strip ensures reliable connections while saving valuable PCB space. The housing is crafted from black Liquid Crystal Polymer (LCP), providing excellent mechanical stability and thermal resistance.

The contacts are made from phosphor bronze with a 0.25μm thick gold plating on the contact areas, complemented by a matte tin plating on the tails. This design supports a current rating of 1.3A and a stacking height of 6 mm, offering versatility for compact electronic assemblies.

The SS4 series incorporates Razor Beam™ contacts with a 1 mm contact swipe for secure and high speed data transmission. This connector series also features a polarized design with undercut retention notches that provide tactile feedback and superior withdrawal force during mating and de-mating cycles.

Operating over a temperature range from -55°C to 125°C, the SS4 socket is suitable for rugged and high reliability industrial, telecommunications, consumer electronics, and computing applications requiring dense and durable PCB interconnect solutions.

High-density 100-contact dual row design for compact PCB layout. Durable Liquid Crystal Polymer housing ensures long-term stability. Gold plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance.

Polarized Razor Beam™ contacts increase connection security and withdrawal force. Wide operating temperature range suitable for diverse environments. Designed for surface mount technology with straight orientation. Low profile design with 6 mm stacking height optimizes PCB space.

Ideal for high speed and rugged board-to-board connectivity applications. Supports current rating of 1.3A for reliable signal integrity.

Choose Samtec SS4 series sockets for advanced PCB interconnection needs in industrial, manufacturing, telecommunications, and consumer electronic devices. Explore related PCB socket and connector products at EnvMart for comprehensive component solutions.
