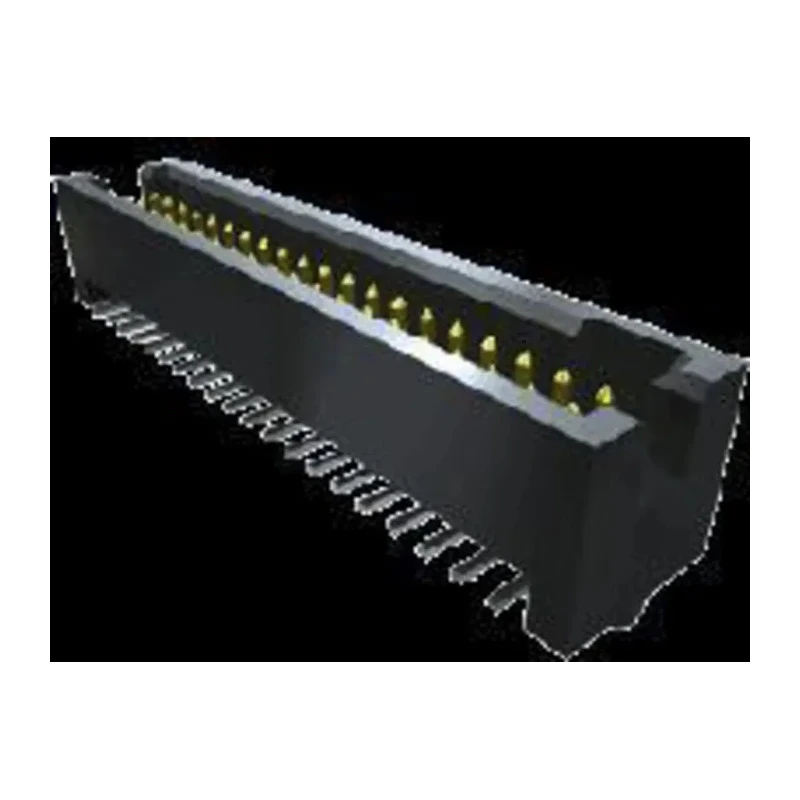

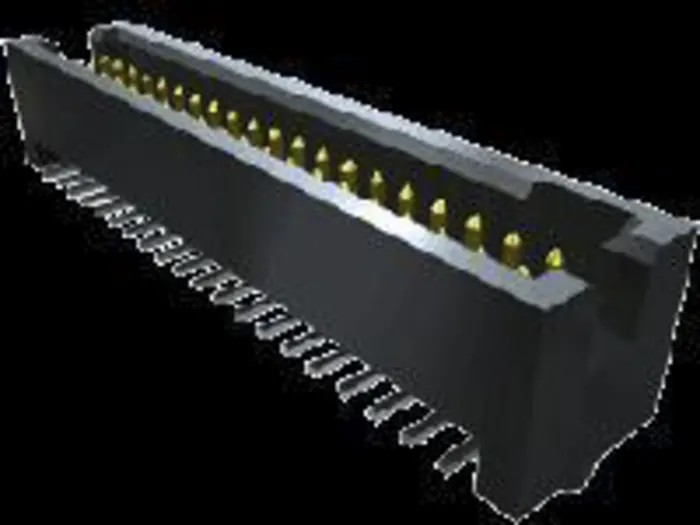

Samtec TFM Series Straight Through Hole PCB Header, 14 Contact, 1.27 mm Pitch, 2 Row, Shrouded TFM-107-01-S-D
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | TFM-107-01-S-D |
| Mount Type | Through Hole |
| Special Features | Screw down, weld tab and solder nail options available for most rugged requirements |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TFM |
| Termination | Through-hole, surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Contact System | .018" (0.46 mm) diameter post |
Key Features
- This PCB header features a pitch of 1.27 mm (0.050 inch) for precise board assembly.
- It contains 14 phosphor bronze contacts plated with gold to ensure excellent conductivity.
- The housing is made of durable Liquid Crystal Polymer material for high-temperature resistance.
- The connector supports a current rating of 3.2A and voltage rating of 250V.
- It is designed for through-hole mounting with solder termination and a straight orientation.
- The component is shrouded to facilitate blind mating and protect contacts.
- Operates reliably between temperatures of -55°C to 125°C.
- Special features include options like screw down, weld tab, and solder nail for rugged applications.
Product Description
Samtec TFM-107-01-S-D PCB Header is a highly reliable, shrouded, straight through hole connector designed for electronic assemblies requiring durable wire-to-board connections. Featuring 14 gold-plated phosphor bronze contacts arranged in 2 rows with a 1.27 mm pitch, it delivers stable electrical performance in demanding industrial and commercial electronic uses.
The housing is constructed from Liquid Crystal Polymer, providing exceptional mechanical strength and resistance to temperatures ranging from -55°C to 125°C. This makes the connector suitable for applications including industrial control systems, telecommunications equipment, and computer hardware where reliability and precision are critical.
The connector's design supports through-hole solder termination, ensuring secure mounting and electrical continuity. Its shrouded body allows for blind mating, protecting the contacts and enabling easy alignment during PCB assembly. The TFM series also offers specialized features like screw down and weld tab options for enhanced mechanical retention in rugged environments.
This product’s compact 1.27 mm pitch and standard 2-row configuration provide excellent flexibility for dense circuit board layouts. It is commonly used for mating with high-reliability Tiger Eye™ contact sockets and cable assemblies, supporting varied board orientations including vertical and right-angle installations.
14 gold-plated phosphor bronze contacts for reliable connectivity. Liquid Crystal Polymer housing withstands high temperatures and mechanical stress. Shrouded design for protection and blind mating capability. Current rating of 3.2A and voltage rating of 250V suitable for diverse electronic circuits.
Through-hole solder termination provides robust installation. Operating temperature range from -55°C to 125°C supports harsh industrial conditions. Options for screw down, weld tab, and solder nail enhance mounting security.
This PCB header is a dependable choice for high-performance electronics assembly, ensuring durability and electrical efficiency in laboratory, industrial, manufacturing, HVAC, and telecommunications applications. Explore more PCB Header solutions and related connectors in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 1.27 mm (0.050 inch).
It features 14 contacts arranged in 2 rows.
The current rating is 3.2A, and the voltage rating is 250V.
The housing is made of Liquid Crystal Polymer, which provides high-temperature resistance.
It supports through-hole mounting with solder termination.
It operates reliably between temperatures of -55°C to 125°C.
Yes, it includes options for screw down, weld tab, and solder nail for enhanced mounting security.
The connector system is designed for wire-to-board connections.
The contacts are made of phosphor bronze and are plated with gold for excellent conductivity.
It has a straight orientation for easy alignment during assembly.
The contact gender is male.
The country of origin for this PCB header is the United States.
