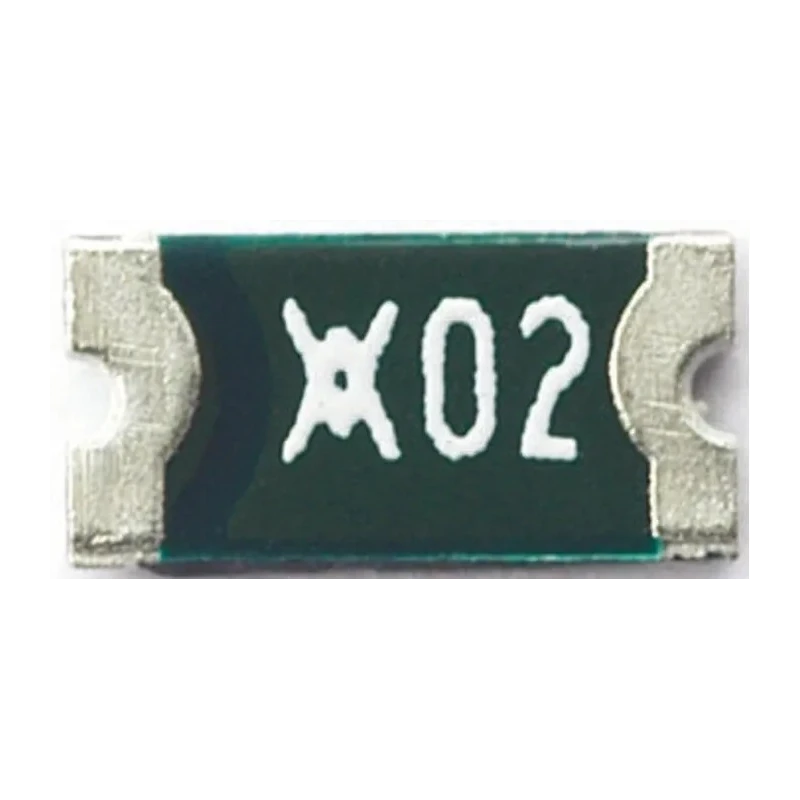

Littelfuse NanoSMDC Series 0.75 A Resettable Fuse 6V DC Surface Mount Technology NANOSMDC075F-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 6V dc |
| Brand | Littelfuse |
| Height | 0.68mm |
| Length | 3.4mm |
| Model | NANOSMDC075F-2 |
| Width | 1.8mm |
| Current Rating | 100A |
| Series | nanoSMDC |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Trip Current | 1.5A |
| Power Dissipation | 0.8W |
| Terminal Material | Matt Tin |
| Standards/Approvals | UL, CSA, TUV, RoHS |
| Time to Trip | 0.1s |
| Hold Current | 0.75A |
| Minimum Resistance | 0.09Ω |
| Maximum Resistance | 300mΩ |
Key Features
- Rapid switching from low to high resistance under electrical overload conditions.
- Automatic reset after fault condition clears without fuse replacement.
- Compact nanoSMDC series size with 3.4mm length ensuring space saving PCB design.
- Matt tin terminal material for reliable surface mount soldering.
- Operating temperature range from -40°C to 85°C suitable for various environments.
- Power dissipation rating of 0.8 Watts to handle heat generated during fault conditions.
- Certified to UL, CSA, TUV and RoHS standards for quality and safety compliance.
- Ideal for applications in security systems, power supplies, automotive, medical, instrumentation, and telecommunications.
Product Description
Littelfuse NANOSMDC075F-2 is a 0.75 Ampere resettable fuse featuring a 6V DC rating and nanoSMDC series surface mount technology.
This fuse offers reliable protection against overcurrent conditions by rapidly transitioning from a conductive low resistance state to a high resistance state under fault currents, limiting circuit damage.
The device automatically resets after fault clearance and power removal, supporting thousands of maintenance-free cycles which reduces downtime and maintenance costs. The compact dimensions of 3.4mm length, 1.8mm width, and 0.68mm height enable integration in miniature electronic assemblies without the need for an external fuse holder.
Constructed with matt tin terminal material ensures durable solder joints and consistent electrical contact. It operates effectively within a temperature range of -40°C to 85°C and has a power dissipation capacity of 0.8 Watts.
The fuse complies with industry standards UL, CSA, TUV, and RoHS, ensuring safety and environmental compliance.
Common industrial applications include security systems, power supplies and transformers, power switching devices, automotive and medical equipment, instrumentation and control systems, computers and peripherals, audio visual equipment, and telecommunications systems.
Rapid switching from low to high resistance under electrical overload conditions. Automatic reset after fault condition clears without fuse replacement. Compact nanoSMDC series size with 3.4mm length ensuring space saving PCB design.
Matt tin terminal material for reliable surface mount soldering. Operating temperature range from -40°C to 85°C suitable for various environments. Power dissipation rating of 0.8 Watts to handle heat generated during fault conditions.
Certified to UL, CSA, TUV and RoHS standards for quality and safety compliance. Ideal for applications in security systems, power supplies, automotive, medical, instrumentation, and telecommunications. Explore the Electronics & Electricals category at EnvMart for a wide range of circuit protection devices including Resettable Fuses from Littelfuse and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This resettable fuse has a current rating of 0.75 A, with a trip current of 1.5 A.
The NANOSMDC075F-2 operates at a voltage of 6V DC.
The dimensions are 3.4 mm in length, 1.8 mm in width, and 0.68 mm in height.
It has a power dissipation rating of 0.8 Watts, allowing it to handle heat generated during fault conditions.
This model operates effectively within a temperature range of -40°C to 85°C.
The terminals are made from matt tin material, ensuring reliable surface mount soldering.
It is certified to UL, CSA, TUV, and RoHS standards for quality and safety compliance.
It rapidly switches from a low resistance state to a high resistance state under electrical overload conditions, limiting circuit damage.
This fuse is ideal for applications in security systems, power supplies, automotive, medical equipment, instrumentation, and telecommunications.
The minimum resistance is 0.09Ω and the maximum resistance is 300mΩ.
The time to trip for the NANOSMDC075F-2 is 0.1 seconds.
The NANOSMDC075F-2 is provided in a reel package type.
