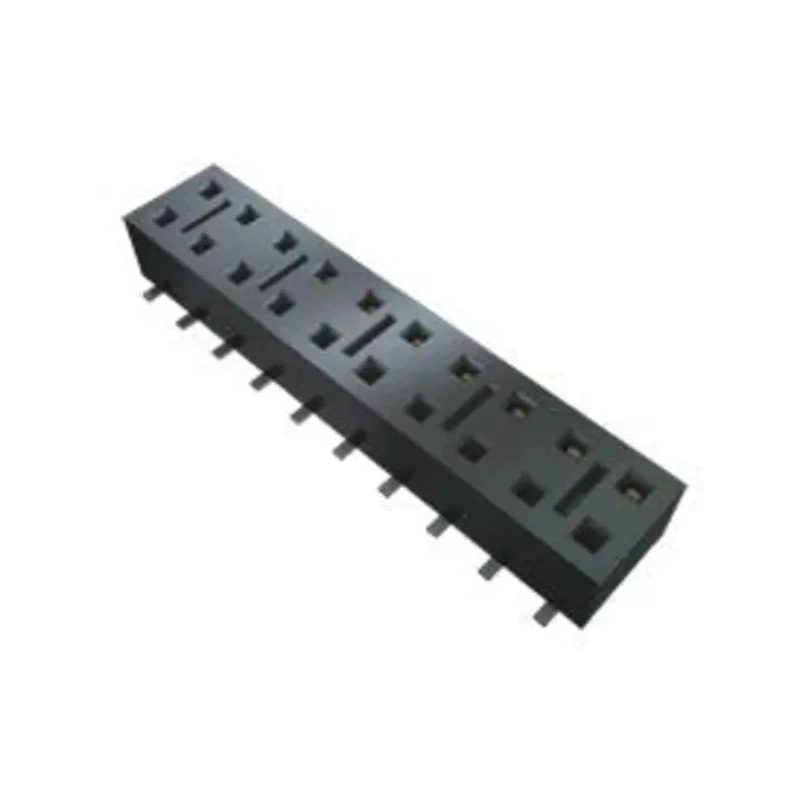

Samtec HLE Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 2.54 mm Pitch, 4.1 A, 400 V HLE-105-02-G-DV

Samtec HLE-105-02-G-DV is a high-quality straight through hole PCB socket designed for electronic component applications requiring reliable board-to-board connections. It features 10 contacts organized in two rows with a 2.54 mm pitch, providing a cost-effective single beam socket strip ideal for various industrial and commercial electronics assemblies.

The socket supports a current rating of 4.1 amperes and can handle voltages up to 400 volts, ensuring robust electrical performance in demanding environments. Its housing is made from liquid crystal polymer, enhancing durability and thermal stability, while the beryllium copper alloy contact material, coupled with gold plating, offers excellent conductivity, corrosion resistance, and longevity.

This component mounts through-hole with a straight orientation, facilitating easy solder connection in printed circuit boards. It is engineered to operate effectively within a wide temperature range from -55°C minimum to 125°C maximum, suitable for industrial, laboratory, manufacturing, and electronic assembly applications.

The Tiger Beam™ contact system incorporated in this socket ensures consistent, high-quality electrical contact. Additionally, the design includes top and bottom entry pass-through options, granting versatility for complex PCB layouts.

Samtec’s HLE series straight through hole PCB sockets are ideal for use in electronic devices requiring dependable and precise connector systems. Their design accommodates double-row configurations with up to 100 pins, providing scalable solutions for various application needs.

Designed for board-to-board connector applications. Supports a current rating of 4.1 A and voltage up to 400 V. Constructed with liquid crystal polymer housing for durability. Contacts made of beryllium copper alloy with gold plating for optimal conductivity.

Mount type is through-hole with straight orientation for secure soldering. Operates reliably across a temperature range from -55°C to 125°C. Features Tiger Beam™ contact system ensuring high performance. Includes top and bottom entry pass-through options for versatile use.

This product is manufactured new and originates from India-based supply chains. Browse the PCB Socket category on EnvMart for more Samtec components and related electronic connectors.
