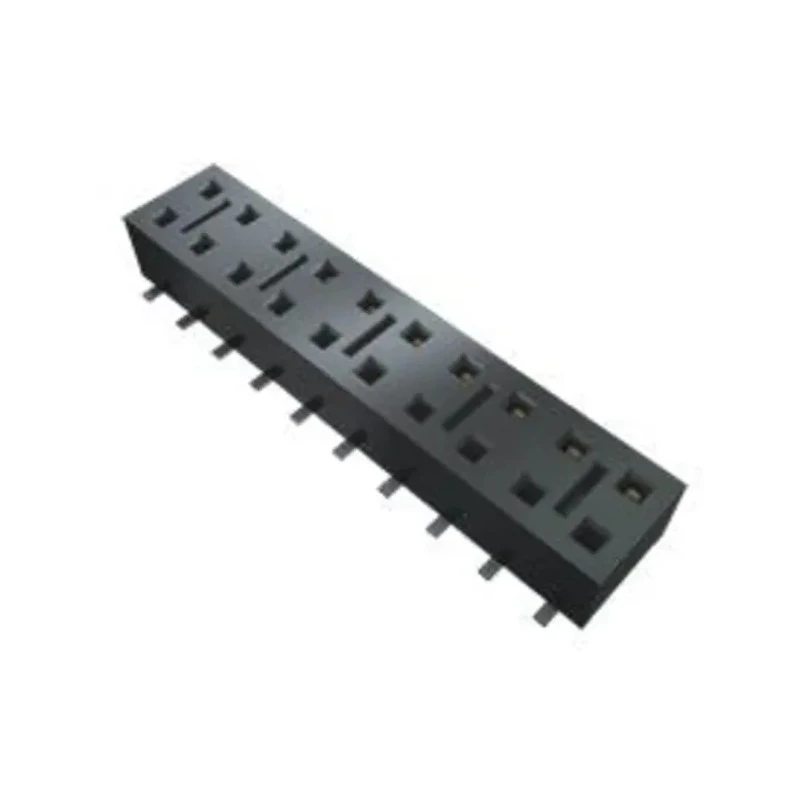

Samtec HLE Series Straight Through Hole PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder HLE-105-02-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.1A |
| Model | HLE-105-02-L-DV |
| Mount Type | Through Hole |
| Special Features | Top and bottom entry pass-through options |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HLE |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Cost-Effective Single Beam Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
| Contact System | Tiger Beam™ |
Key Features
- Cost-effective single beam socket strip for reliable performance.
- Constructed with liquid crystal polymer housing for durability.
- Beryllium copper alloy contact material plated with gold for excellent conductivity.
- Designed for through-hole mounting with solder termination.
- Supports board-to-board connector system at 400 V voltage rating.
- Operates in extreme temperatures from -55°C to 125°C.
- Features top and bottom entry pass-through options.
- Contact system uses Tiger Beam™ technology for secure connections.
Product Description
Samtec HLE-105-02-L-DV is a straight through hole PCB socket designed for high-reliability applications requiring 10 contacts arranged in 2 rows with a 2.54 mm pitch. The socket is part of the HLE series, recognized for its cost-effective single beam socket strips optimized for performance and durability.
The housing is made from liquid crystal polymer which provides excellent mechanical strength and electrical insulation. Contacts are manufactured from beryllium copper alloy with gold plating to ensure low contact resistance and corrosion resistance. The Tiger Beam™ contact system guarantees a secure and reliable connection.
Terminated via solder, this through-hole mount socket supports board-to-board connector systems and is rated for up to 400 V. It performs reliably across a wide operating temperature range from -55°C to 125°C. The design accommodates top and bottom entry pass-through options, making it suitable for versatile PCB assembly requirements.
This product is ideal for use in electronics manufacturing environments including industrial, communication, and consumer electronics sectors requiring compact and reliable PCB interconnections.
Cost-effective single beam socket strip for reliable performance. Durable liquid crystal polymer housing. Gold-plated beryllium copper alloy contacts. Through-hole solder termination mount. Supports 400 V board-to-board connection systems.
Wide operating temperature range from -55°C to 125°C. Tiger Beam™ contact system for secure connections. Top and bottom entry pass-through options available. Vertical orientation with 2 rows and 10 contacts. Explore more electronic components and PCB Sockets in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 400 V, making it suitable for board-to-board connector systems.
It operates reliably within a temperature range of -55°C to 125°C.
This unit features 10 contacts arranged in 2 rows.
The contacts are made from beryllium copper alloy and are plated with gold for excellent conductivity and corrosion resistance.
The pitch size is 2.54 mm, which is standard for many PCB applications.
It uses a through-hole solder termination method for secure mounting on PCBs.
Yes, this model is designed with both top and bottom entry pass-through options to accommodate various PCB assembly needs.
The current rating for this socket is 4.1 A, making it suitable for a variety of applications.
The housing is constructed from liquid crystal polymer, providing mechanical strength and electrical insulation.
It supports a board-to-board connector system, ensuring reliable interconnections in electronic applications.
The orientation of the HLE-105-02-L-DV is straight, which is typical for through-hole mounting applications.
This product is manufactured in India.
