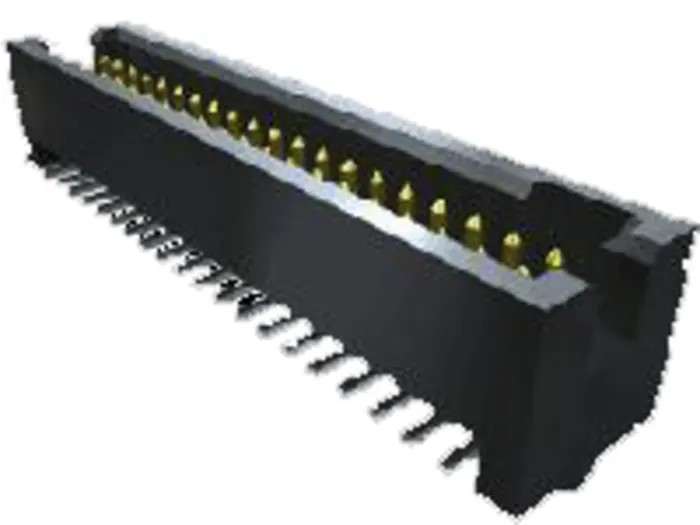

Samtec TFM Series Straight Through Hole PCB Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-110-12-L-D-A

Samtec TFM-110-12-L-D-A is a high-performance PCB header classified under the TFM Series, designed for straight through hole mounting. It consists of 20 male contacts organized in 2 rows with a pitch of 1.27 mm, making it suitable for compact and precise PCB assemblies.

The housing material is liquid crystal polymer which offers excellent durability and thermal stability. Contacts are made of phosphor bronze with gold plating to ensure low resistance, corrosion resistance, and reliable long-term electrical performance.

This PCB header supports a current rating of 3.2 amperes and a maximum voltage rating of 250 volts, operating efficiently over a temperature range of -55°C to +125°C. Such ratings make it appropriate for various industrial, electronic manufacturing, and power supply use cases where rugged and reliable connectors are mandatory.

Featuring a shrouded design, this connector facilitates blind mating to prevent contact damage during installation. The termination type is solder, offering a durable and stable connection. Multiple special features including screw down, weld tab, and solder nail options are available to meet specific rugged application requirements.

With its wire-to-board connector system and through-hole mount type, it is compatible with Tiger Eye™ contact sockets and cable assemblies that demand superior reliability and high cycle life.

This product originates from the United States and incorporates the advanced Tiger Eye™ contact technology for enhanced connection quality and longevity. Its vertical orientation and dual-row configuration increase design flexibility for various PCB layouts.

The Samtec TFM-110-12-L-D-A PCB header is ideal for industrial automation, electronic components, power distribution, manufacturing, and other applications requiring robust PCB connectors. It ensures precision, reliability, and durability for demanding electronic environments.

Constructed with liquid crystal polymer housing for durability and thermal resistance. Contact material is phosphor bronze with gold plating ensuring reliable electrical connections. Rated for 3.2A current and withstands operating voltages up to 250V.

Designed for through hole mounting with solder termination providing strong mechanical and electrical bonds. Supports operating temperature range from -55°C to 125°C suitable for harsh environments. Includes multiple special features like screw down, weld tab, and solder nail options for rugged applications.

Shrouded body enables blind mating and reduces risk of contact damage. Compatible with Tiger Eye™ contact sockets and cable assemblies for high-reliability connections. Ideal for industrial, electronic, power supply, and PCB assembly applications requiring durable wire-to-board connectors.
