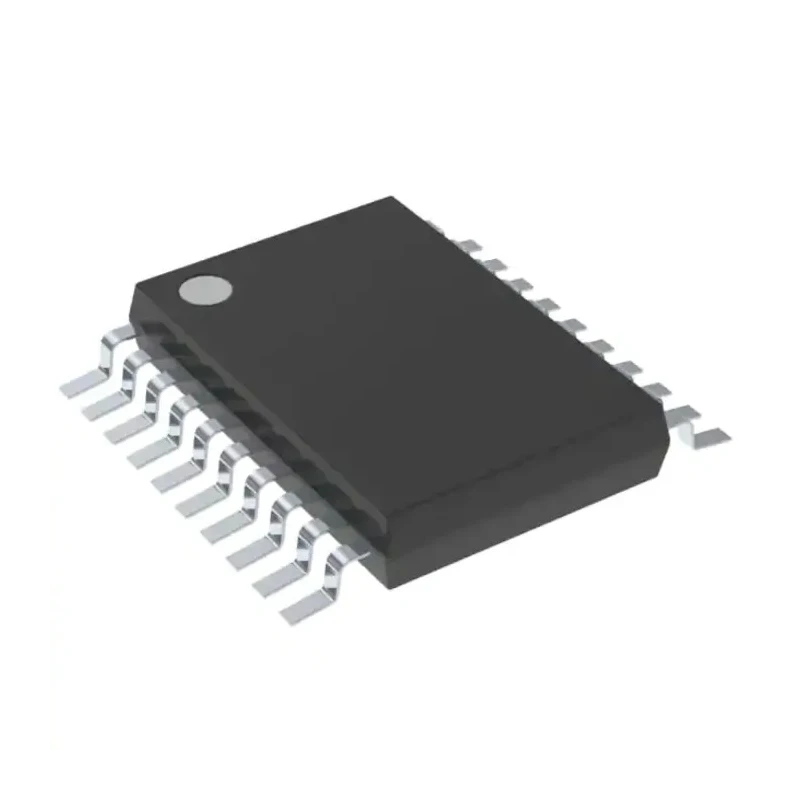

Microchip Digital to Analogue Converter 12 bit 8-Channel Serial-I2C 20-Pin TSSOP MCP47FVB28-20E/ST
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.2mm |
| Length | 4.5mm |
| Model | MCP47FVB28-20E/ST |
| Width | 3.1mm |
| Settling Time | 7.8μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 8 |
| Interface Type | Serial-I2C |
| Architecture | Resistor Ladder |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Offers 12-bit resolution for precise analogue voltage output.
- Equipped with 8 independent channels suitable for multi-output applications.
- Utilizes a resistor ladder architecture for accurate conversion.
- Compatible with Serial I2C communication protocol for ease of integration.
- Operates within a supply voltage range of 2.7V to 5.5V for versatile use.
- Compact 20-pin TSSOP package measuring 4.5mm x 3.1mm x 1.2mm.
- Designed to function across a wide operating temperature range from -40°C to 125°C.
- Fast settling time of 7.8 microseconds suitable for responsive electronic systems.
Product Description
Microchip MCP47FVB28-20E/ST is a state-of-the-art 12-bit Digital to Analogue Converter (DAC) featuring 8 individual channels and a serial I2C interface, provided in a compact and reliable 20-pin TSSOP package. This device employs a resistor ladder architecture to achieve high precision analogue voltage outputs essential for various electronics applications.
Operating at a supply voltage range between 2.7V and 5.5V, the MCP47FVB28-20E/ST ensures adaptability across different power supplies. Its operating temperature spectrum from -40°C to 125°C makes it suitable for industrial grade, automotive, and laboratory environments, where temperature resilience is critical.
The DAC offers a fast settling time of 7.8 microseconds, enhancing the responsiveness of control and instrumentation systems. Its I2C serial interface provides straightforward digital communication, facilitating easy integration into embedded systems and microcontroller-based designs.
12-bit resolution yielding highly accurate analogue voltage outputs. Eight channels suitable for multiplexed signal generation. Compact TSSOP package allowing space-efficient PCB layouts. Resistor ladder architecture ensuring linear output response.
Wide temperature and voltage operating range for versatile applications. Suitable for industrial, laboratory, manufacturing, and automotive system integration. Buffered outputs enhancing signal integrity in measurement and control applications.
Supports flexible digital interface via I2C protocol for easy connectivity. Package dimensions: 4.5mm length x 3.1mm width x 1.2mm height. Designed for efficiency and reliability in demanding electronics environments.
This DAC is ideal for applications requiring precise voltage outputs such as signal generation, instrumentation, control systems, and digital audio. The MCP47FVB28-20E/ST balances performance with compactness, making it a vital component in high-quality electronics design.
Explore the full range of semiconductor components for advanced electronic solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP47FVB28-20E/ST offers a resolution of 12 bits, allowing for precise analogue voltage output.
This model features 8 independent channels, making it suitable for multi-output applications.
It operates within a supply voltage range of 2.7V to 5.5V, providing versatility for different power supply configurations.
The device utilizes a Serial I2C interface, facilitating easy integration into embedded systems and microcontroller designs.
This model has a fast settling time of 7.8 microseconds, which enhances the responsiveness of control and instrumentation systems.
The package dimensions are 4.5mm in length, 3.1mm in width, and 1.2mm in height.
It is designed to function across a wide operating temperature range from -40°C to 125°C, suitable for various environments.
The MCP47FVB28-20E/ST employs a resistor ladder architecture, ensuring accurate conversion and linear output response.
It provides an analogue voltage output, suitable for various electronic applications.
The country of origin for this product is India.
This DAC is ideal for applications requiring precise voltage outputs, such as signal generation, instrumentation, and control systems.
The device features a total of 20 pins, fitting into its compact TSSOP package.
