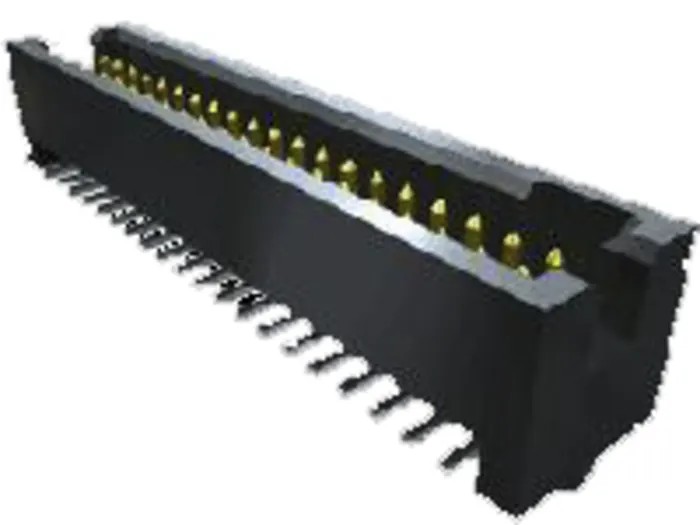

Samtec TFM Series Straight Through Hole PCB Header, 30 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-115-02-L-D-A

Samtec TFM-115-02-L-D-A is a high-quality, straight through hole PCB header designed for reliable wire-to-board connections in industrial and electronics manufacturing environments. This model features 30 male contacts with a 1.27 mm pitch arranged in 2 rows, housed in a robust Liquid Crystal Polymer casing which provides excellent mechanical strength and stability.

The phosphor bronze contacts plated with gold ensure excellent electrical conductivity and corrosion resistance, supporting a continuous current rating of 3.2 A at up to 250 V. The header is engineered to operate reliably over a wide temperature range from -55°C to 125°C, making it suitable for harsh environmental conditions.

This shrouded PCB header includes a multi-finger BeCu contact system designed for high durability and extended life cycles, ideal for frequent mating and unmating applications. It supports through-hole solder termination, enhancing mechanical retention and ensuring enduring electrical connections on printed circuit boards.

Mounting options are versatile with through hole and surface mount compatibility. Optional features such as screw down, weld tab, and solder nail provide additional ruggedness for demanding industrial applications. The design facilitates blind mating with a secure locking mechanism preventing misalignment during assembly.

The TFM-115-02-L-D-A series adheres to no specific approvals but delivers consistent performance and reliability for use in industrial automation, telecommunications, consumer electronics, and other electronic component assemblies.

Features 30 gold-plated phosphor bronze male contacts for optimal conductivity. Pitch of 1.27 mm supports compact PCB layouts. Constructed with Liquid Crystal Polymer housing for durability. Designed for through-hole mounting and solder termination.

Operates reliably between -55°C and 125°C temperature range. Rated for 3.2 A continuous current at 250 V maximum voltage. Shrouded connector body ensures safe and secure mating. Contact system diameter post is 0.46 mm for consistent connection.

Suitable for wire-to-board applications with straight orientation and 2-row configuration. Includes screw down, weld tab, and solder nail options for rugged installation needs.

This PCB header is made in the United States and represents a dependable solution for electronics design engineers seeking rugged, high-quality connectors to meet demanding manufacturing and operational requirements.
